Read this first
Door Locks
Always take all children and pets with you or leave a responsible person with them:
Leaving a child or a pet unattended in a parked vehicle is dangerous. In hot weather, temperatures inside a vehicle can become high enough to cause brain damage or even death.
Do not leave the key in your vehicle with children and keep them in a place where your children will not find or play with them:
Leaving children in a vehicle with the key is dangerous. This could result in someone being badly injured or even killed.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle are dangerous. Passengers can fall out if a door is accidentally opened and can more easily be thrown out in an accident.
Always close all the windows and sunroof, lock the doors and the liftgate and take the key with you when leaving your vehicle unattended:
Leaving your vehicle unlocked is dangerous as children could lock themselves in a hot vehicle, which could result in death. Also, a vehicle left unlocked becomes an easy target for thieves and intruders.
After closing the doors and the liftgate, always verify that they are securely closed:
Doors and the liftgate not securely closed are dangerous, if the vehicle is driven with a door and the liftgate not securely closed, the door and the liftgate could open unexpectedly resulting in an accident.
Always confirm the safety around the vehicle before opening a door and the liftgate:
Suddenly opening a door and the liftgate is dangerous. A passing vehicle or a pedestrian could be hit and cause an accident.
-
Always confirm the conditions around the vehicle before opening/closing the doors and use caution during strong winds or when parked on an incline. Not being aware of the conditions around the vehicle is dangerous because fingers could get caught in the door or a passing pedestrian could be hit, resulting in an unexpected accident or injury.
-
The vehicle lock-out prevention feature prevents you from locking yourself out of the vehicle.
All doors and the liftgate will automatically unlock if they are locked using the power door locks with any door or the liftgate open.

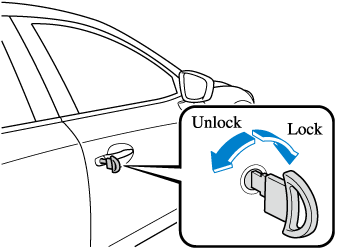

Locking, Unlocking with Key
All doors and the liftgate lock automatically when the driver's door is locked using the key. They all unlock when the driver's door is unlocked using the key.
Turn the key toward the front to lock, toward the back to unlock.

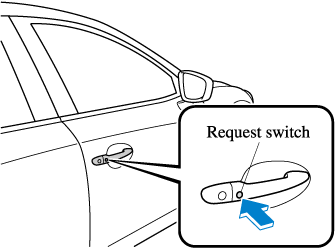

Locking, Unlocking with Request Switch (With the advanced keyless function)
All doors and the liftgate can be locked/unlocked by pressing the request switch on the front doors while the key is being carried.
The request switch on the liftgate can only be used to lock all doors and the liftgate.
Front doors
Liftgate ( Lock only)
To lock
To lock the doors and the liftgate, press the request switch and the hazard warning lights will flash once.
A beep sound will be heard once.
To unlock
To unlock the doors and the liftgate, press the request switch on a front door and the hazard warning lights will flash twice.
A beep sound will be heard twice.
-
Confirm that all doors and the liftgate are securely locked.
For the liftgate, move it without pressing the electric liftgate opener to verify that the liftgate has not been left ajar.
-
All doors and the liftgate cannot be locked when any door or the liftgate is open.
-
It may require a few seconds for the doors to unlock after the request switch is pressed.
-
A beep sound is heard for confirmation when the doors and the liftgate are locked/unlocked using the request switch. If you prefer, the beep sound can be turned off.
The volume of the beep sound can also be changed. Refer to Personalisation Features (Search).
Use the following procedure to change the setting.
-
Switch the ignition off and close all of the doors and the liftgate.
-
Open the driver's door.
-
Within 30 seconds of opening the driver's door, press and hold the LOCK button on the key for 5 seconds or longer.
All of the doors and the liftgate lock and the beep sound activates at the currently set volume. The setting changes each time the LOCK button on the key is pressed and the beep sound activates at the set volume. (If the beep sound has been set to not activate, it will not activate.)
-
The setting change is completed by doing any one of the following:
-
Switching the ignition to ACC or ON.
-
Closing the driver's door.
-
Opening the liftgate.
-
Not operating the key for 10 seconds.
-
Pressing any button except the LOCK button on the key.
-
Pressing a request switch.
-
-
-
The setting can be changed so that the doors and the liftgate are locked automatically without pressing the request switch.
Refer to Personalisation Features (Search).
(Auto-lock function)
A beep sound is heard when all doors and the liftgate are closed while the advanced key is being carried. All doors and the liftgate are locked automatically after about three seconds when the advanced key is out of the operational range. Also, the hazard warning lights flash once. (Even if the driver is in the operational range, all doors and the liftgate are locked automatically after about 30 seconds.) If you are out of the operational range before the doors and the liftgate are completely closed or another key is left in the vehicle, the auto-lock function will not work. Always make sure that all doors and the liftgate are closed and locked before leaving the vehicle. The auto-lock function does not close the power windows.
-
Auto re-lock function
After unlocking with the request switch, all doors and the liftgate will automatically lock if any of the following operations are not performed within about 30 seconds.
The time required for the doors to lock automatically can be changed.
Refer to Personalisation Features (Search).
-
Opening a door or the liftgate.
-
Switching the ignition to any position other than off.
-
Locking, Unlocking with Transmitter
All doors and the liftgate can be locked/unlocked by operating the keyless entry system transmitter, refer to Keyless Entry System (Search).

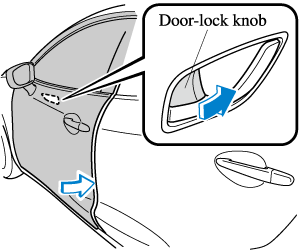

Locking, Unlocking with Door-Lock Knob
Operation from inside
All doors and the liftgate lock automatically when the driver's door-lock knob is pushed. They all unlock when the driver's door-lock knob is pulled out.
The red indication can be seen when the door-lock knob is unlocked.
Operation from outside
To lock the rear and front passenger doors with the door-lock knob from the outside, push the door-lock knob to the lock position and close the door (holding the door handle in the open position is not required).
This does not operate the other door locks.
When locking the door this way:
-
Be careful not to leave the key inside the vehicle.
-
The driver's door lock knob cannot be used while the driver's door is open.
Rear Door Child Safety Locks
These locks are intended to help prevent children from accidentally opening the rear doors. Use them on both rear doors whenever a child rides in the rear seat of the vehicle.
If you slide the child safety lock to the lock position before closing that door, the door cannot be opened from the inside. The door can only be opened by pulling the outside handle.
