Interior FeaturesAudio Set [Type A (non-touchscreen)]Bluetooth® (Some Models)

Introduction

Bluetooth® Hands-Free outline

When a Bluetooth® device (mobile phone) is connected to the vehicle's Bluetooth® unit, a call can be made or received by pressing the talk button, pick-up button, or hang-up button on the audio remote control switch. For example, even if a device (mobile phone) is in your coat pocket, a call can be made without taking the device (mobile phone) out and operating it directly.

Bluetooth® audio outline

When a portable audio unit equipped with the Bluetooth® communication function is paired to the vehicle, you can listen to music stored on the paired portable audio device from the vehicle's speakers. It is not necessary to connect the portable audio device to the vehicle's external input terminal. After programming, operate the vehicle audio control panel to play/stop the audio.





  • For your safety, a device can be paired only when the vehicle is parked. If the vehicle starts to move, the pairing procedure will end. Park the vehicle in a safe place before pairing.

  • The communication range of a Bluetooth® equipped device is about 10 meters (32 ft) or less.

  • Basic audio operation is available using voice commands even if Bluetooth® is not connected.

Close Note



Some Bluetooth® mobile devices are not compatible with the vehicle. Consult an Authorised Mazda Repairer, Mazda's call centre or Web support centre for information regarding Bluetooth® mobile device compatibility:



Phone:

(Germany)

0800 4263 738 (8:00―18:00 Central European Time)

(Except Germany)

00800 4263 7383 (8:00―18:00 Central European Time)

(Worldwide)

49 (0) 6838 907 287 (8:00―18:00 Central European Time)

Web:

http://www.mazdahandsfree.com

Close Caution

Applicable Bluetooth® specification (Recommended)

Ver. 2.0

Interior FeaturesAudio Set [Type A (non-touchscreen)]Bluetooth® (Some Models)

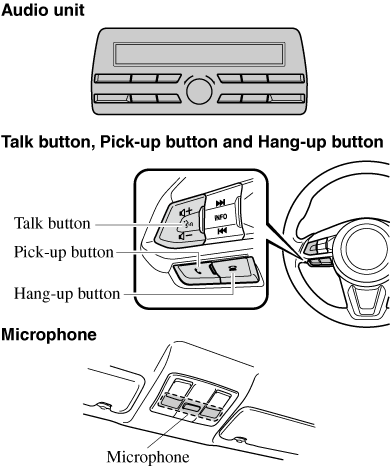

Component Parts

Microphone (hands-free)

The microphone is used for speaking voice commands or when making a Hands-free call.

Talk button

Activates the voice recognition. In addition, it skips the voice guidance.

Pick-up button

Responds to incoming calls. In addition, after selecting a contact or dialing a number, it places the call when the button is pressed.

Hang-up button

Ends the call or refuses an incoming call. In addition, it ends the voice recognition operation.

Volume adjustment

The power/volume dial of the audio unit is used to adjust the volume. Turn the dial to the right to increase volume, to the left to decrease it.

The volume can also be adjusted using the volume button on the steering wheel.



If the volume is lower compared to other audio modes, increase the volume from the device side.

Close Note
