Flat Tyre

To remove the jack

1. Open the boot board.



2. Secure the boot board by attaching the hook to the head restraint.

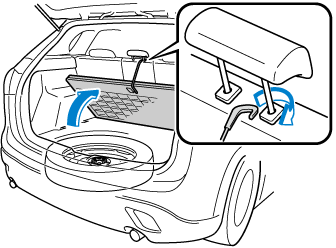

   Without luggage compartment cover

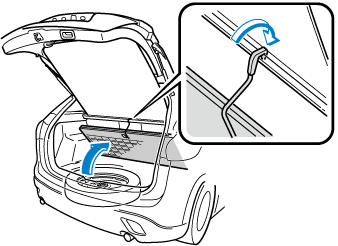

   With luggage compartment cover



3. Remove the jack.

To secure the jack

Perform the removal procedure in reverse.

Maintenance

• Always keep the jack clean.

• Make sure the moving parts are kept free from dirt or rust.

• Make sure the screw thread is adequately lubricated.
