Specifications
Engine
Petrol engine
|
Item |
Specification |
|
|---|---|---|
|
SKYACTIV-G 2.0 |
SKYACTIV-G 2.5 |
|
|
Type |
DOHC-16V in-line, 4-cylinder |
|
|
Bore × Stroke |
83.5 × 91.2 mm (3.29 × 3.59 in) |
89.0 × 100 mm (3.50 × 3.94 in) |
|
Displacement |
1,998 ml (1,998 cc) |
2,488 ml (2,488 cc) |
|
Compression ratio |
13.0 |
|
Diesel engine
|
Item |
Specification |
|---|---|
|
SKYACTIV-D 2.2 |
|
|
Type |
DOHC-16V in-line, 4-cylinder |
|
Bore × Stroke |
86.0 × 94.3 mm (3.39 × 3.71 in) |
|
Displacement |
2,191 ml (2,191 cc) |
|
Compression ratio |
14.0 |
Electrical System
|
Item |
Classification |
||
|---|---|---|---|
|
SKYACTIV-G 2.0, SKYACTIV-G 2.5 |
SKYACTIV-D 2.2 |
||
|
Battery |
Q-85*1 |
T-110*1 |
|
|
Spark-plug number |
Mazda Genuine spark plug*2 |
PE5S-18-110 or PE5R-18-110 |
― |
-
Q-85 or T-110 is designed for i-stop system (FOR STOP & START). Only Q-85 or T-110 should be used to ensure correct operation of i-stop system (FOR STOP & START). Consult an expert repairer, we recommend an Authorised Mazda Repairer for details.
-
The spark plugs provide the SKYACTIV-G its optimum performance. Consult an expert repairer, we recommend an Authorised Mazda Repairer for details.
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium alloy and platinum tips could be damaged.
Lubricant Quality
|
Lubricant |
Classification |
|
|---|---|---|
|
Engine oil*1 |
SKYACTIV-G 2.0, SKYACTIV-G 2.5 |
API SG/SH/SJ/SL/SM/SN or ILSAC GF-II/GF-III/GF-IV/GF-V |
|
SKYACTIV-D 2.2 |
ACEA C1 or JASO DL-1 |
|
-
Refer to Recommended Oil (Search).
|
Lubricant |
Classification |
|
|---|---|---|
|
Coolant |
FL-22 type |
|
|
Manual transaxle oil |
API Service |
GL-4 |
|
SAE |
75W-80 |
|
|
Automatic transaxle fluid |
Mazda Genuine special fluid (ATF FZ) |
|
|
Transfer case oil |
Mazda Long Life Hypoid Gear Oil SG1 |
|
|
Rear differential oil |
Mazda Long Life Hypoid Gear Oil SG1 |
|
|
Brake/Clutch fluid |
SAE J1703 or FMVSS116 DOT-3 |
|
Capacities
(Approximate Quantities)
|
Item |
Capacity |
||
|---|---|---|---|
|
Engine oil |
SKYACTIV-G 2.0 |
With oil filter replacement |
4.2 L (4.4 US qt, 3.7 Imp qt) |
|
Without oil filter replacement |
4.0 L (4.2 US qt, 3.5 Imp qt) |
||
|
SKYACTIV-G 2.5 |
With oil filter replacement |
4.5 L (4.8 US qt, 4.0 Imp qt) |
|
|
Without oil filter replacement |
4.3 L (4.5 US qt, 3.8 Imp qt) |
||
|
SKYACTIV-D 2.2 |
With oil filter replacement |
5.1 L (5.4 US qt, 4.5 Imp qt) |
|
|
Without oil filter replacement |
4.8 L (5.1 US qt, 4.2 Imp qt) |
||
|
Coolant |
SKYACTIV-G 2.0 |
Manual transaxle |
6.9 L (7.3 US qt, 6.1 Imp qt) |
|
Automatic transaxle |
7.2 L (7.6 US qt, 6.3 Imp qt) |
||
|
SKYACTIV-G 2.5 |
7.3 L (7.7 US qt, 6.4 Imp qt) |
||
|
SKYACTIV-D 2.2 |
9.2 L (9.7 US qt, 8.1 Imp qt) |
||
|
Manual transaxle oil |
1.65 L (1.74 US qt, 1.45 Imp qt) |
||
|
Automatic transaxle fluid |
SKYACTIV-G 2.0, SKYACTIV-G 2.5 |
7.8 L (8.2 US qt, 6.9 Imp qt) |
|
|
SKYACTIV-D 2.2 |
8.0 L (8.5 US qt, 7.0 Imp qt) |
||
|
Transfer case oil |
0.45 L (0.48 US qt, 0.40 Imp qt) |
||
|
Rear differential oil |
0.45 L (0.48 US qt, 0.40 Imp qt) |
||
|
Fuel tank |
2WD |
56.0 L (14.8 US gal, 12.3 Imp gal) |
|
|
4WD |
58.0 L (15.3 US gal, 12.8 Imp gal) |
||
Check oil and fluid levels with dipsticks or reservoir gauges.
Dimensions
|
Item |
Vehicle specification |
|---|---|
|
Overall length |
4,540 mm (178.7 in) |
|
Overall width |
1,840 mm (72.4 in) |
|
Overall height |
1,710 mm (67.3 in) |
|
Front tread |
1,585 mm (62.4 in) |
|
Rear tread |
1,590 mm (62.6 in) |
|
Wheelbase |
2,700 mm (106.3 in) |
Light Bulbs
Exterior light
|
Light bulb |
Category |
|||
|---|---|---|---|---|
|
Wattage |
UNECE*1 (SAE) |
|||
|
Headlights |
Halogen headlights |
High beam |
60 |
HB3 (9005) |
|
Low beam |
55 |
H11 (H11) |
||
|
LED headlights |
High beam |
LED*2 |
― (―) |
|
|
Low beam |
LED*2 |
― (―) |
||
|
Running lights (Some Models) (With LED headlights) |
LED*2 |
― (―) |
||
|
Front direction indicator lights |
With halogen headlights |
21 |
PY21W (―) |
|
|
With LED headlights |
21 |
WY21W (7443NA) |
||
|
Position lights |
With halogen headlights |
5 |
W5W (―) |
|
|
With LED headlights |
LED*2 |
― (―) |
||
|
Front fog lights (Some Models) |
With halogen headlights |
55 |
H11 (H11) |
|
|
With LED headlights |
LED*2 |
― (―) |
||
|
Side direction indicator lights |
LED*2 |
― (―) |
||
|
Camera lamp (Some Models) |
LED*2 |
― (―) |
||
|
High-mount brake light |
LED*2 |
― (―) |
||
|
Rear direction indicator lights |
21 |
WY21W (7443NA) |
||
|
Brake lights/Tail lights |
With halogen headlights |
21/5 |
W21/5W (7443) |
|
|
With LED headlights |
LED*2 |
― (―) |
||
|
Tail lights |
With halogen headlights |
5 |
W5W (―) |
|
|
With LED headlights |
LED*2 |
― (―) |
||
|
Reverse lights |
16 |
W16W (921) |
||
|
Number plate lights |
5 |
W5W (―) |
||
-
UNECE stands for United Nations Economic Commission for Europe.
-
LED is the abbreviation for Light Emitting Diode.
Interior light
|
Light bulb |
Category |
||
|---|---|---|---|
|
Wattage |
UNECE*1 |
||
|
Overhead lights (Front)/Map lights |
8 |
― |
|
|
Rear map lights |
8 |
― |
|
|
Luggage compartment light |
8 |
― |
|
|
Vanity mirror lights (Some Models) |
2 |
― |
|
-
UNECE stands for United Nations Economic Commission for Europe.
Tyres

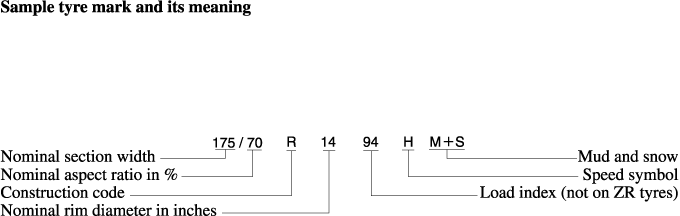

Tyre mark information
Choose the proper tyres for your vehicle using the following tyre mark information.
|
Speed symbol |
Maximum permissible speed |
|---|---|
|
Q |
Up to 160 km/h (99 mph) |
|
R |
Up to 170 km/h (105 mph) |
|
S |
Up to 180 km/h (111 mph) |
|
T |
Up to 190 km/h (118 mph) |
|
U |
Up to 200 km/h (124 mph) |
|
H |
Up to 210 km/h (130 mph) |
|
V |
Up to 240 km/h (149 mph) |
|
W |
Up to 270 km/h (167 mph) |
|
Y |
Up to 300 km/h (186 mph) |
|
ZR |
Over 240 km/h (149 mph) |
Tyre and inflation pressure
The tyres have been optimally matched with the chassis of your vehicle.
When replacing tyres, Mazda recommends that you replace tyres of the same type originally fitted to your vehicle. For details, contact an expert repairer, we recommend an Authorised Mazda Repairer.
Check the tyre pressure label for tyre size and inflation pressure (Search).
After adjusting the tyre pressure, initialization of the tyre pressure monitoring system is necessary to make the system operates normally.
Refer to Tyre Pressure Monitoring System Initialization (Search).
Standard tyre
|
Tyre size |
Inflation pressure |
||
|---|---|---|---|
|
Up to 3 persons |
―Full load |
||
|
225/65R17 102V |
Front |
230 kPa (2.3 bar, 33 psi) |
260 kPa (2.6 bar, 38 psi) |
|
Rear |
230 kPa (2.3 bar, 33 psi) |
280 kPa (2.8 bar, 41 psi) |
|
|
225/55R19 99V |
Front |
250 kPa (2.5 bar, 36 psi) |
260 kPa (2.6 bar, 38 psi) |
|
Rear |
250 kPa (2.5 bar, 36 psi) |
290 kPa (2.9 bar, 42 psi) |
|
Temporary spare tyre
|
Tyre size |
Inflation pressure |
|---|---|
|
185/80R17 99M |
320 kPa (3.2 bar, 46 psi) |
Wheel nut tightening torque
When installing a tyre, tighten the wheel nut to the following torque.
108―147 N·m (12―14 kgf·m, 80―108 ft·lbf)
Brakes
If you require information regarding the wear limit specification for the brake disc plates and the measurement method, please contact an expert repairer, we recommend an Authorised Mazda Repairer. The information is made freely available.
