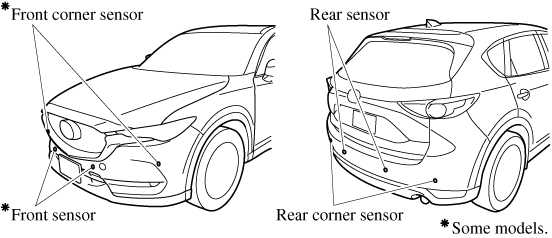

The sensors detect obstructions within the following range.
Vehicles without front sensor/front corner sensor
The parking sensors can be used when the shift lever/selector lever is shifted to the R position with the ignition switched ON.
Vehicles with front sensor/front corner sensor
When the parking sensor switch is pressed with the ignition switched ON, the buzzer sounds and the indicator light turns on.
When the ignition is switched ON with the parking sensor activated, the indicator light turns on.
Press the switch again to stop the operation.
Operation conditions
The parking sensor system can be used when all of the following conditions are met:
The ignition is switched ON.
The parking sensor switch is turned on.
(Automatic transaxle vehicle)
The detection indicator and buzzer of the front sensors/front corner sensors do not operate when the selector lever is in the P position.
The detection indicator and buzzer sound do not activate when the parking brake is applied.
