Appendix

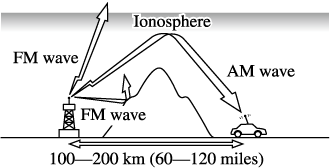

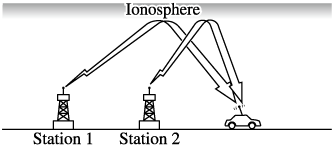

Radio Reception
Operating Tips for WMA
WMA is short for Windows Media*1 Audio and is the audio compression format used by Microsoft*1.
Audio data can be created and stored at a higher compression ratio than MP3.
This unit plays files with the extension (.wma) as WMA files.
-
Windows Media and Microsoft are registered trademarks of Microsoft Corporation U.S. in the United States and other countries.
Do not use an audio file extension on files other than audio files. In addition, do not change the audio file extension. Otherwise, the unit will not recognise the file correctly resulting in noise or a malfunction.
-
WMA files written under specifications other than the indicated specification may not play normally or files or folder names may not display correctly.
-
The file extension may not be provided depending on the computer operating system, version, software, or settings. In this case, add the file extension “.wma” to the end of the file name, and then write it to the memory.
Operating Tips for AAC
AAC stands for Advanced Audio Coding, which is standardised voice compression established by the ISO*1 working group (MPEG). Audio data can be created and stored at a higher compression ratio than MP3.
This unit plays files with the extensions (.aac/.m4a/.wav) as the AAC files.
Do not use an audio file extension on files other than audio files. In addition, do not change the audio file extension. Otherwise, the unit will not recognise the file correctly resulting in noise or a malfunction.
-
AAC files written under specifications other than the indicated specification may not play normally or files or folder names may not display correctly.
-
The file extension may not be provided depending on the computer operating system, version, software, or settings. In this case, add the file extension “.aac”, “.m4a”, or “.wav” to the end of the file name, and then write it to the memory.
*1 International Organisation for Standardisation
Operating Tips for USB device
This unit plays audio files as follows:
Extension |
Playback with this unit |
---|---|
.mp3 |
MP3 |
.wma |
WMA |
.aac |
AAC |
.m4a |
|
.wav |
WAV |
.ogg |
OGG |
Do not use an audio file extension on files other than audio files. In addition, do not change the audio file extension. Otherwise, the unit will not recognise the file correctly resulting in noise or a malfunction.
-
Playback may not be possible depending on the type and condition of the USB flash memory even if the audio file complies with the standard.
-
A copyright protected WMA/AAC file cannot be played in this unit.
-
If a file name in the USB memory is too long, it could cause operation problems such as not being able to playback the song.
(Recommended: Within 80 characters)
-
The order of the music data stored in the device may differ from the playback order.
-
To prevent loss or damage of stored data, we recommend that you always back up your data.
-
If the current consumption of the connected device exceeds the following current value, it may not operate or recharge.
-
Apple device is connected : 2,100 mA
-
Device compatible with BC1.2 is connected : 1,500 mA
-
Device other than the above is connected : 500 mA
-
-
Do not pull out the USB device while in the USB mode (only pull it out while in FM/AM radio mode).
-
The device will not operate if the data is password protected.
MP3/WMA/AAC/OGG files written under specifications other than the indicated specification may not play normally or files/folder names may not display correctly.
Agreements and disclaimers related to Apple CarPlay
This unit is compatible with Apple CarPlay which can operate an iPhone using the vehicle's audio device.
-
iPhone, Siri and Apple Music are trademarks of Apple Inc., registered in the U.S. and other countries.
-
Apple CarPlay is trademarks of Apple Inc.
-
iOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
May not be compatible depending on the model or OS version.
-
For the purposes of safety, do not operate your iPhone while driving.
-
Disconnect the iPhone when it is not in use. If the device is left in the cabin, it could be damaged or the battery may deteriorate due to the excessive temperature or humidity inside the cabin.
-
If the iPhone battery has deteriorated, it may not recharge or play audio even if it is connected to this unit.
-
Before use, carefully read the user instructions for the iPhone.
To prevent loss or damage of stored data, we recommend that you always back up your data.
