Rear View Monitor

Rear View Monitor (Some Models)

Rear View Monitor Operation

The operation of the rear view monitor when reversing the vehicle varies depending on the traffic, road, and vehicle conditions. The amount of steering and the timing also varies depending on conditions, so confirm the surrounding conditions directly with your eyes and steer the vehicle in accordance with the conditions.

Be well aware of the above cautions prior to using the rear view monitor.



Images displayed on the monitor from the rear view parking camera are reversed images (mirror images).

Close Note
View Note

  1. Shift the shift lever/selector lever to R to switch the display to the rear view monitor display.

  2. Confirming the surrounding conditions, reverse the vehicle.

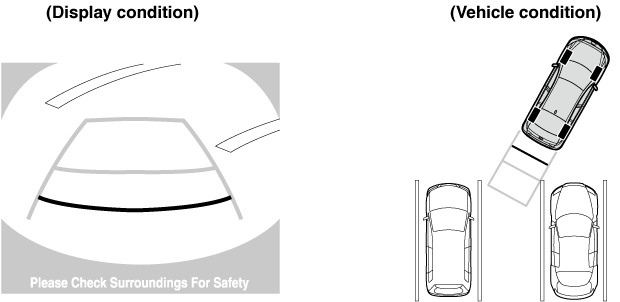

  3. After your vehicle begins entering the parking space, continue backing up slowly so that the distance between the vehicle width lines and the sides of the parking space on the left and right are roughly equal.

  4. Continue to adjust the steering wheel until the vehicle width guide lines are parallel to the left and right sides of the parking space.

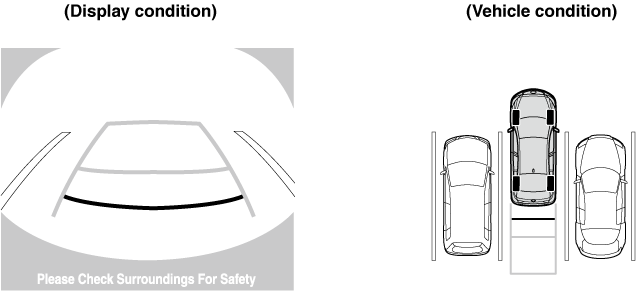

  5. Once they are parallel, straighten the wheels and back your vehicle slowly into the parking space. Continue checking the vehicle's surroundings and then stop the vehicle in the best possible position.



  6. When the shift lever/selector lever is shifted from R to another shift lever/selector lever position, the screen returns to the previous display.



    • If the parking space has division lines, straighten the wheels when the vehicle width guide lines are parallel to them.

    • Because there may be a difference between the displayed image, such as indicated below, and the actual conditions when parking, always verify the safety at the rear of the vehicle and the surrounding area directly with your eyes.

      • In the image of the parking space (or garage) displayed on the screen, the back end and distance guide lines may appear aligned in the monitor, but they may not actually be aligned on the ground.

      • When parking in a space with a division line on only one side of the parking space, the division line and the vehicle width guide line appear aligned in the monitor, but they may not actually be aligned on the ground.



    Close Note
    View Note
