Before Using the Audio System

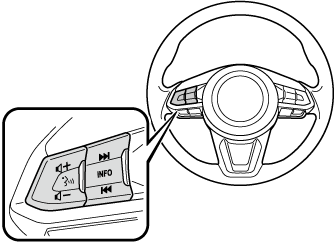

Audio Control Switch (Some Models)
Without Bluetooth® Hands-Free
With Bluetooth® Hands-Free
Adjusting the Volume
To increase the volume, press up the volume switch (
).
To decrease the volume, press down the volume switch (
).
Mute Switch (Some Models)
Press the mute switch (
) once to mute audio, press it again to resume audio output.
If the ignition is switched off with the audio muted, the mute will be cancelled. Therefore, when the engine is restarted, the audio is not muted. To mute the audio again, press the mute switch ().

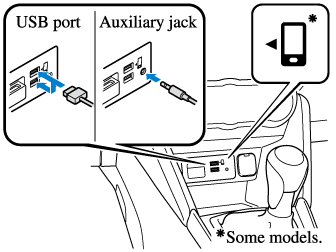

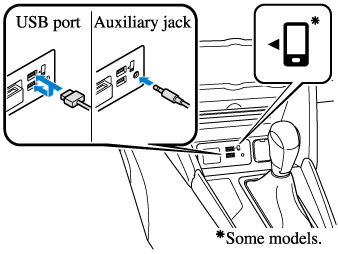

How to connect USB port/Auxiliary jack
Type A (Without CD player)
Type A (With CD player)
Type B (Without CD player)
Type B (With CD player)
Connecting a device
-
If there is a cover on the AUX jack or USB port, remove the cover.
-
Connect the connector on the device to the USB port.
Connecting with a connector lead
-
If there is a cover on the AUX jack or USB port, remove the cover.
-
Connect the device plug/connector lead to the auxiliary jack/USB port.
Do not allow the connection plug cord to get tangled with the parking brake or the shift lever (manual transaxle)/selector lever (automatic transaxle):
Allowing the plug cord to become tangled with the parking brake or the shift lever (manual transaxle)/selector lever (automatic transaxle) is dangerous as it could interfere with driving, resulting in an accident.
Do not place objects or apply force to the auxiliary jack/USB port with the plug connected.
-
Insert the plug into the auxiliary jack/USB port securely.
-
Insert or pull out the plug with the plug perpendicular to the auxiliary jack/USB port hole.
-
Insert or remove the plug by holding its base.
-
(Vehicles with USB port indicated with
)Use the USB terminal indicated by the
mark when using Apple CarPlay™ and Android Auto™.
Aerial

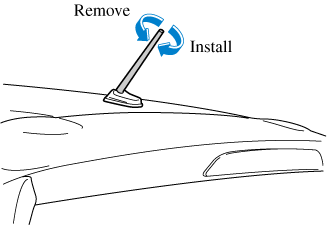

Type A (Some Models)
To remove the aerial, turn it anticlockwise.
To install the aerial, turn it clockwise.
Make sure the aerial is securely installed.
-
To prevent damage to the aerial, remove it before entering a car wash facility or passing beneath a low overhead clearance.
When leaving your vehicle unattended, we recommend that you remove the aerial and store it inside the vehicle.
Type B (Some Models)
Type C (Some Models)
The aerial is embedded into the window glass.
When washing the inside of the window which has an aerial, use a soft cloth dampened in lukewarm water, gently wiping the aerial lines.
Use of glass cleaning products could damage the aerial.
