Specifications
Specifications
Engine
|
Item |
Specification |
|
|---|---|---|
|
Without i-stop |
With i-stop |
|
|
Type |
DOHC-16V in-line, 4-cylinder |
|
|
Bore × Stroke |
74.5 × 85.8 mm (2.93 × 3.38 in) |
|
|
Displacement |
1,496 ml (1,496 cc) |
|
|
Compression ratio |
12.0 |
13.0 |
Electrical System
|
Item |
Specification |
||
|---|---|---|---|
|
Battery |
With i-stop |
Q-85*1 |
|
|
Without i-stop |
12V-60Ah/20HR |
||
|
Spark-plug number |
Mazda Genuine spark plug*2 |
PE5R-18-110 or PE5S-18-110 |
|
-
Q-85 is designed for i-stop system (FOR STOP & START). Only Q-85 should be used to ensure correct operation of i-stop system (FOR STOP & START). Consult an expert repairer (we recommend an Authorised Mazda Repairer) for details.
-
The spark plugs provide the SKYACTIV-G its optimum performance. Consult an expert repairer (we recommend an Authorised Mazda Repairer) for details.
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium alloy and platinum tips could be damaged.
Lubricant Quality
|
Lubricant |
Classification |
|---|---|
|
Engine oil*1 |
API SL/SM/SNor ILSAC GF-III/GF-IV/GF-V |
-
Refer to the recommended SAE viscosity numbers (Search).
|
Lubricant |
Classification |
|
|---|---|---|
|
Coolant |
FL-22 type |
|
|
Manual transaxle oil |
Mazda Long Life Gear Oil G7*1 |
|
|
Automatic transaxle fluid |
Mazda Genuine special fluid (ATF FZ) |
|
|
Brake/Clutch fluid |
SAE J1703 or FMVSS116 DOT-3 or DOT-4 |
|
-
Mazda Long Life Gear Oil G7 is superior oil for low fuel cost and optimum shift-feel. Using Mazda Long Life Gear Oil G7 is recommended.
If Mazda Long Life Gear Oil G7 cannot be obtained, use standard oil (API Service GL-4 (SAE 75W-80)).
Capacities
Dimensions
Saloon
|
Item |
Vehicle specification |
|---|---|
|
Overall length |
4,340 mm (170.9 in) |
|
Overall width |
1,695 mm (66.7 in) |
|
Overall height |
1,470 mm (57.9 in) |
|
Front tread |
1,495 mm (58.9 in) |
|
Rear tread |
1,485 mm (58.5 in) |
|
Wheelbase |
2,570 mm (101.2 in) |
Hatchback
|
Item |
Vehicle specification |
|
|---|---|---|
|
Overall length |
4,065 mm (160.0 in) |
|
|
Overall width |
1,695 mm (66.7 in) |
|
|
Overall height*1 |
Type A |
1,515 mm (59.7 in) |
|
Type B |
1,495 mm (58.9 in) |
|
|
Front tread |
1,495 mm (58.9 in) |
|
|
Rear tread |
1,485 mm (58.5 in) |
|
|
Wheelbase |
2,570 mm (101.2 in) |
|
-
The overall height is categorized according to the aerial type as follows:

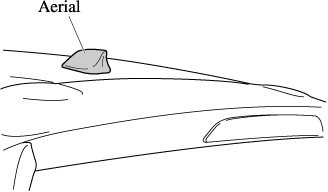

Type A

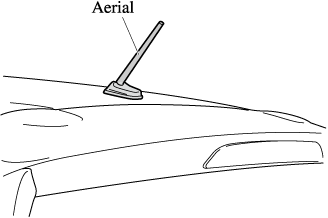

Type B
Light Bulbs
Exterior light
|
Light bulb |
Category |
|||
|---|---|---|---|---|
|
Wattage |
UN-R*1 (SAE) |
|||
|
Headlights |
LED*2 |
― (―) |
||
|
Running lights (Some Models) |
LED*2 |
― (―) |
||
|
Position lights |
LED type |
LED*2 |
― (―) |
|
|
Bulb type |
5 |
W5W (―) |
||
|
Front direction indicator lights |
21 |
WY21W (7443NA) |
||
|
Side direction indicator lights |
LED*2 |
― (―) |
||
|
High-mount brake light |
LED*2 |
― (―) |
||
|
Rear direction indicator lights |
21 |
WY21W (7443NA) |
||
|
Tail lights/Brake lights |
21/5 |
W21/5W (7443) |
||
|
Reverse lights |
Saloon |
16 |
W16W (921) |
|
|
Hatchback |
LED*2 |
― (―) |
||
|
Number plate lights |
5 |
W5W (―) |
||
-
UN-R stands for United Nations Regulation.
-
LED is the abbreviation for Light Emitting Diode.
Interior light
|
Light bulb |
Category |
|
|---|---|---|
|
Wattage |
UN-R*1 (SAE) |
|
|
Boot light (Saloon) |
3 |
― |
|
Luggage compartment light (Hatchback) |
5 |
― |
|
Overhead lights/Map lights |
8 |
― |
-
UN-R stands for United Nations Regulation.
Tyres

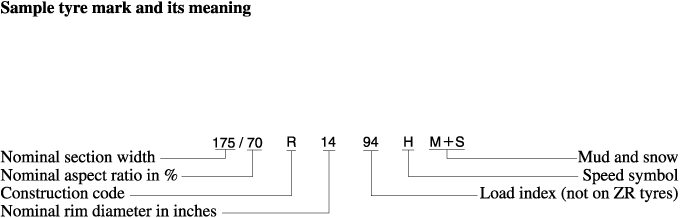

Tyre mark information
Choose the proper tyres for your vehicle using the following tyre mark information.
|
Speed symbol |
Maximum permissible speed |
|---|---|
|
Q |
Up to 160 km/h (99 mph) |
|
R |
Up to 170 km/h (105 mph) |
|
S |
Up to 180 km/h (111 mph) |
|
T |
Up to 190 km/h (118 mph) |
|
U |
Up to 200 km/h (124 mph) |
|
H |
Up to 210 km/h (130 mph) |
|
V |
Up to 240 km/h (149 mph) |
|
W |
Up to 270 km/h (167 mph) |
|
Y |
Up to 300 km/h (186 mph) |
|
ZR |
Over 240 km/h (149 mph) |
Tyre and inflation pressure
The tyres have been optimally matched with the chassis of your vehicle.
When replacing tyres, Mazda recommends that you replace tyres of the same type originally fitted to your vehicle. For details, contact an expert repairer (we recommend an Authorised Mazda Repairer).
Check the tyre pressure label for tyre size and inflation pressure (Search).
After adjusting the tyre pressure, initialization of the tyre pressure monitoring system is necessary to make the system operate normally.
Refer to Tyre Pressure Monitoring System Initialization (Search).
Standard tyre
|
Tyre size |
Inflation pressure |
||
|---|---|---|---|
|
Up to 3 persons |
―Full load |
||
|
185/65R15 88T |
Front |
250 kPa (2.5 bar, 36 psi) |
270 kPa (2.7 bar, 39 psi) |
|
Rear |
230 kPa (2.3 bar, 33 psi) |
320 kPa (3.2 bar, 46 psi) |
|
|
185/60R16 86H |
Front |
250 kPa (2.5 bar, 36 psi) |
260 kPa (2.6 bar, 38 psi) |
|
Rear |
230 kPa (2.3 bar, 33 psi) |
330 kPa (3.3 bar, 48 psi) |
|
1 person's weight: About 75 kg
Temporary spare tyre
|
Tyre size |
Inflation pressure |
|---|---|
|
T125/70D15 95M |
420 kPa (60 psi) |
Wheel nut tightening torque
When installing a tyre, tighten the wheel nut to the following torque.
108―147 N･m (12―14 kgf･m, 80―108 ft･lbf)
Fuses
Refer to Fuses (Search).
Brakes
If you require information regarding the wear limit specification for the brake disc plates and drums, or the measurement method, please contact an expert repairer (we recommend an Authorised Mazda Repairer). The information is made freely available.
