Instrument Cluster and Display

The speedometer indicates the speed of the vehicle.

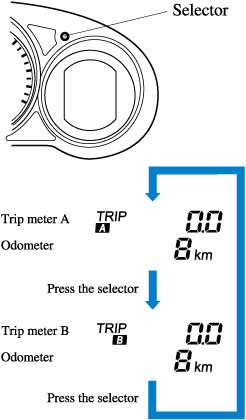

The display mode can be changed between trip meter A and trip meter B by pressing the selector while one of them is displayed. The selected mode will be displayed.



---

When the ignition is switched to ACC or OFF, the odometer or trip meters cannot be displayed, however, pressing the selector can inadvertently switch the trip meters or reset them during an approximate ten-minute period in the following cases:

• After the ignition is switched to OFF from ON.

• After the driver's door is opened.

Close Note

View Note

Odometer

The odometer records the total distance the vehicle has been driven.

Trip meter

The trip meter can record the total distance of two trips. One is recorded in trip meter A, and the other is recorded in trip meter B.

For instance, trip meter A can record the distance from the point of origin, and trip meter B can record the distance from where the fuel tank is filled.

When trip meter A is selected, pressing the selector again within one second will change to trip meter B mode.

When trip meter A is selected, TRIP A will be displayed. When trip meter B is selected, TRIP B will be displayed.

The trip meter records the total distance the vehicle is driven until the meter is again reset. Return it to “0.0” by holding the selector depressed for 1 second or more. Use this meter to measure trip distances and to compute fuel consumption.



---

• (Vehicles with type C/type D audio)

  If the fuel economy data is reset using the fuel economy monitor, or trip A is reset using the trip meter when the function which synchronizes the fuel economy monitor and the trip meter is on, the fuel economy data and trip A are reset simultaneously.

  Refer to Fuel Economy Monitor (Search).

• Only the trip meters record tenths of kilometres (miles).

• The trip record will be erased when:

  • The power supply is interrupted (blown fuse or the battery is disconnected).

  • The vehicle is driven over 9999.9 km (mile).

Close Note

View Note

The tachometer shows engine speed in thousands of revolutions per minute (rpm).



---

Do not run the engine with the tachometer needle in the RED ZONE.

This may cause severe engine damage.



Close Caution

View Caution



---

When the tachometer needle enters the STRIPED ZONE, this indicates to the driver that the gears should be shifted before entering the RED ZONE.

Close Note

View Note

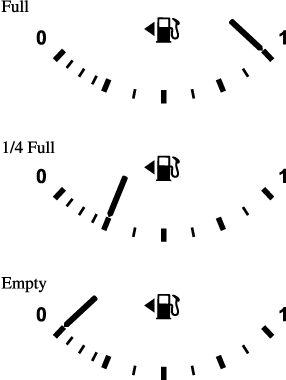

The fuel gauge shows approximately how much fuel is remaining in the tank when the ignition is switched ON. We recommend keeping the tank over 1/4 full.

Type A

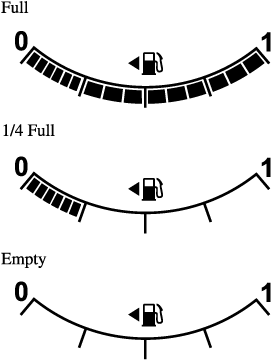

Type B

If the low fuel warning light illuminates or the fuel level is very low, refuel as soon as possible.

Refer to Warning/Indicator Lights (Search).



---

• After refuelling, it may require some time for the indicator to stabilize. In addition, the indicator may deviate while driving on a slope or curve since the fuel moves in the tank.

• The display indicating a quarter or less remaining fuel has more segments to show the remaining fuel level in greater detail.

• The direction of the arrow () indicates that the fuel-filler flap is on the left side of the vehicle.

Close Note

View Note

(SKYACTIV-D 2.2)

If inconsistency in engine performance or stalling occurs due to low fuel level conditions, refuel the vehicle as soon as possible and add at least 10 L (2.7 US gal, 2.2 Imp gal) of fuel.

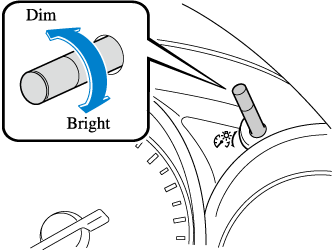

Rotate the knob to adjust the brightness of the instrument cluster and other illuminations in the instrument panel.



---

• The brightness of instrument panel illuminations can be adjusted when the headlights and Position lights are turned on.

• When the instrument panel illumination brightness cannot be adjusted any more, a beep sound will be heard.

Close Note

View Note

Cancelling the illumination dimmer

When the headlight switch is in the or position, the illumination of the instrument cluster dims.

When driving on snowy or foggy roads, or in other situations when the instrument cluster's visibility is reduced due to glare from surrounding brightness, cancel the illumination dimmer and increase the illumination intensity.

To cancel the illumination dimmer, rotate the knob clockwise fully. You will hear a beep sound and the illumination dimmer will be cancelled.



---

• This symbol () indicates the knob to adjust the brightness of the instrument panel illumination.

• If the instrument panel illumination knob is kept at the illumination dimmer cancel position, the instrument cluster will not dim when the headlight switch is turned to the or position again. Rotate the instrument panel illumination knob anticlockwise to activate the illumination dimmer.

Close Note

View Note

When the ignition is switched ON, the outside temperature is displayed.



---

• Under the following conditions, the outside temperature display may differ from the actual outside temperature depending on the surroundings and vehicle conditions:

  • Significantly cold or hot temperatures.

  • Sudden changes in outside temperature.

  • The vehicle is parked.

  • The vehicle is driven at low speeds.

Close Note

View Note

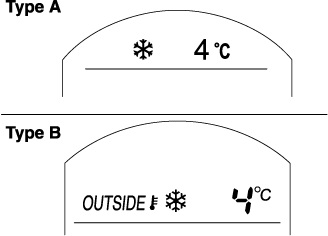

Outside Temperature Warning (Some Models)

Type A

When the ambient temperature is low, a message is displayed on the multi-information display and a beep sound activates to warn the driver of the possibility of icy roads.

If the ambient temperature is lower than about 4 °C, a message is displayed on the multi-information display for about ten seconds and a beep sound activates once.

Type B

When the outside temperature is low, the indication flashes and a beep sound is heard to warn the driver of the possibility of icy roads.

If the outside temperature is lower than about 4 °C, the outside temperature display and the mark flashes for about ten seconds and a beep sound is heard once.



---

If the outside temperature is lower than －20 °C, the beep sound does not operate. However, the mark illuminates.

Close Note

View Note

The vehicle speed preset using the cruise control is displayed.

The setting status of the adjustable speed limiter is displayed.

The following maintenance period notifications can be displayed by turning the Maintenance Monitor on.

• Scheduled Maintenance

• Tyre Rotation

• Oil Change

For the setting method and indications for the maintenance monitor, refer to the Maintenance Monitor.

Refer to Maintenance Monitor (Search).

The maintenance monitor displays the information when the ignition is switched ON.



---

This function is inoperable while the vehicle is being driven.

Close Note

View Note

Message display

When the remaining time or the distance approaches 0, a message is displayed each time the ignition is switched ON.



---

• If any of the INFO switches (up , down , or INFO button) is pressed while a message is displayed, it will no longer be displayed the next time the ignition is switched ON.

• After the vehicle is serviced and the remaining time/distance is reset, the message for the next maintenance period will be displayed when the remaining distance or time to the next maintenance period approaches 0 (displays when engine is started).

• If there are multiple messages, they are displayed according to their order.

• If OFF is set for Messages, messages are not displayed.

Close Note

View Note

The following information can be selected by pressing the up or down part of the INFO switch with the ignition switched ON.

• Approximate distance you can travel on the available fuel

• Average fuel economy

• Current fuel economy

• Average vehicle speed

• Vehicle speed alarm mode (Some Models)

• Lane-keep assist system/Lane departure warning system (LDWS) display (Type A instrument cluster) (Some Models)

• Mazda Radar Cruise Control (MRCC) display (Type A instrument cluster) (Some Models)

• Distance Recognition Support System (DRSS) display (Type A instrument cluster) (Some Models)

• Warning (Type A instrument cluster)

If you have any problems with your trip computer, consult an expert repairer, we recommend an Authorised Mazda Repairer.

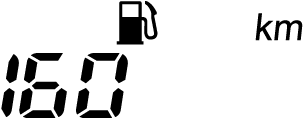

Distance-to-empty mode

This mode displays the approximate distance you can travel on the remaining fuel based on the fuel economy.

The distance-to-empty will be calculated and displayed every second.

Type A

Type B

(European model)

(Except European model)



---

• Even though the distance-to-empty display may indicate a sufficient amount of remaining driving distance before refuelling is required, refuel as soon as possible if the fuel level is very low or the low fuel warning light illuminates.

• The display will not change unless you add more than approximately 10 L (2.6 US gal, 2.2 Imp gal) of fuel.

• The distance-to-empty is the approximate remaining distance the vehicle can be driven until all the graduation marks in the fuel gauge indicating the remaining fuel supply disappear.

• If there is no past fuel economy information such as after first purchasing your vehicle or the information is deleted when the battery leads are disconnected, the actual distance-to empty/range may differ from the amount indicated.

Close Note

View Note

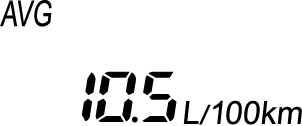

Average fuel economy mode

This mode displays the average fuel economy by calculating the total fuel consumption and the total travelled distance since purchasing the vehicle, re-connecting the battery after disconnection, or resetting the data. The average fuel economy is calculated and displayed every minute.

Type A

Type B

(European model)

(Except European model)

To clear the data being displayed, press the INFO button for more than 1.5 seconds.

After pressing the INFO button, - - - L/100 km (- - - mpg) will be displayed for about 1 minute before the fuel economy is recalculated and displayed.

Current fuel economy mode

This mode displays the current fuel economy by calculating the amount of fuel consumption and the distance travelled.

Current fuel economy will be calculated and displayed every 2 seconds.

Type A

Type B

(European model)

(Except European model)

When you've slowed to about 5 km/h (3 mph), - - - L/100 km (- - - mpg) will be displayed.

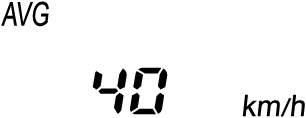

Average vehicle speed mode

This mode displays the average vehicle speed by calculating the distance and the time travelled since connecting the battery or resetting the data.

Average vehicle speed will be calculated and displayed every 10 seconds.

Type A

Type B

(European model)

(Except European model)

To clear the data being displayed, press the INFO button for more than 1.5 seconds. After pressing the INFO button, - - - km/h (- - - mph) will be displayed for about 1 minute before the vehicle speed is recalculated and displayed.

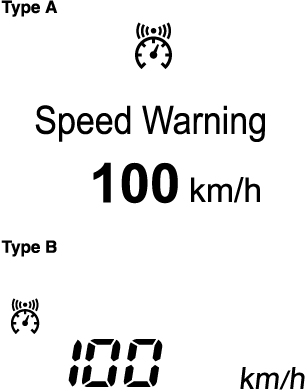

Vehicle speed alarm mode (Some Models)

In this mode, the current setting for the vehicle speed alarm is displayed.

You can change the vehicle speed setting at which the warning is triggered.



---

The vehicle speed alarm display is activated at the same time the beep sound is heard. The set vehicle speed flashes several times.

Close Note

View Note

The vehicle speed alarm can be set using the INFO switch.



---

• Always set the vehicle speed according to the laws and regulations of the country/city in which the vehicle is driven. In addition, always verify the speed of the vehicle using the speedometer.

• The vehicle speed alarm function can be set between 30 and 250 km/h (20 and 150 mph).

Close Note

View Note

The vehicle speed alarm can be set using the following procedure.

Type A

1. Press the INFO switch on the speed alarm screen.

2. Select ON and press the INFO switch.

3. Set the vehicle speed by pressing the INFO up or down button, and then press the INFO button.

Type B

1. Press the INFO button for more than 1.5 seconds. The vehicle speed flashes.

2. Press the up or down part of the INFO switch to select the desired vehicle speed.

3. Press the INFO button for more than 1.5 seconds. The vehicle speed illuminates.

The vehicle speed alarm can be cancelled using the following procedure.

Type A

1. Press the INFO switch on the speed alarm screen.

2. Select OFF and press the INFO switch.

Type B

1. Press the INFO button for more than 1.5 seconds. The vehicle speed flashes.

2. Press the up or down part of the INFO switch to select - - - km/h (- - - mph).

3. Press the INFO button for more than 1.5 seconds. - - - illuminates.

Lane-keep assist system/Lane Departure Warning System (LDWS) display (Type A instrument cluster) (Some Models)

Information regarding the lane-keep assist system/Lane Departure Warning System (LDWS) is displayed.

Refer to Lane-keep Assist System (Search).

Refer to Lane Departure Warning System (LDWS) (Search).

Mazda Radar Cruise Control (MRCC) display (Type A instrument cluster) (Some Models)

Information regarding the Mazda Radar Cruise Control (MRCC) is displayed.

Refer to Mazda Radar Cruise Control (MRCC) (Search).

Distance Recognition Support System (DRSS) display (Type A instrument cluster) (Some Models)

Information regarding the Distance Recognition Support System (DRSS) is displayed.

Refer to Distance Recognition Support System (DRSS) (Search).

Warning (Display Indication) (Type A instrument cluster)

A message is displayed to notify the user of the system operation status and malfunctions or abnormalities.

Check the indicated message.
