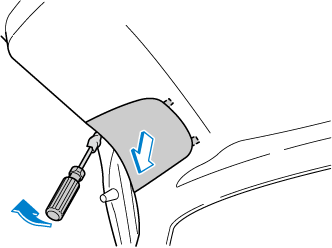

When removing the lens or lamp unit using a flathead screwdriver, make sure that the flathead screwdriver does not contact the interior terminal. If the flathead screwdriver contacts the terminal, a short circuit may occur.

Close Caution




  • To replace the bulb, contact an expert repairer, we recommend an Authorised Mazda Repairer.

  • If the halogen bulb is accidentally touched, it should be cleaned with rubbing alcohol before being used.

  • Use the protective cover and carton for the replacement bulb to dispose of the old bulb promptly and out of the reach of children.

Close Note

Replacing Exterior Light Bulbs

Headlights (With LED headlights)

Low/High beam bulbs

The LED bulb cannot be replaced as a single unit because it is an integrated unit.

The LED bulb has to be replaced with the unit. We recommend an Authorised Mazda Repairer when the replacement is necessary.

Headlights (With halogen headlights)

Low-beam bulbs

  1. Make sure the ignition is switched off, and the headlight switch is off.

  2. If you are changing the right bulb, start the engine, turn the steering wheel all the way to the left, and turn off engine. If you are changing the left bulb, turn the steering wheel to the right.

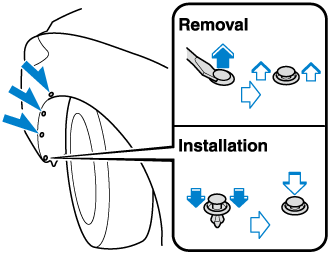

  3. Pull the centre of each plastic retainer and remove the retainers.

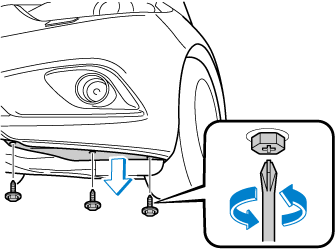

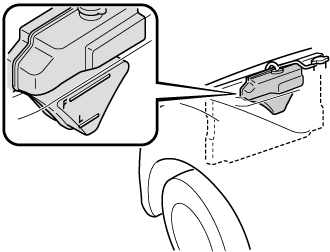

  4. Turn the screw anticlockwise and remove it, and then partially peel back the mudguard.

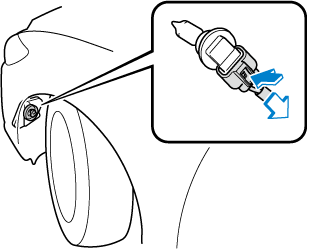

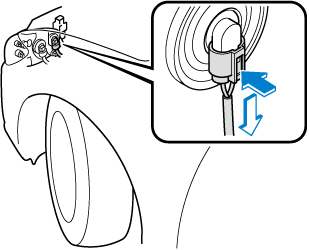

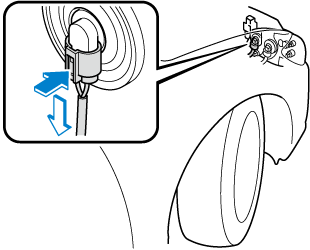

  5. Disconnect the connector from the unit by pressing the tab on the connector with your finger and pulling the connector downward.

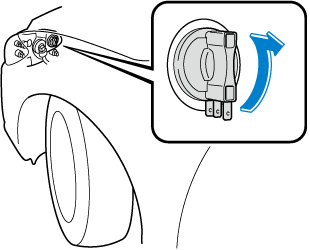

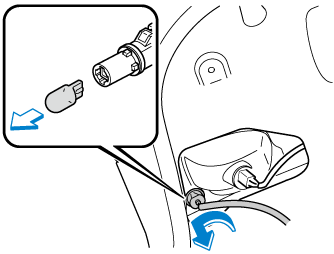

  6. Turn the socket and bulb assembly to remove it. Carefully remove the bulb from its socket in the reflector by gently pulling it straight backward out of the socket.



  7. Install the new bulb in the reverse order of the removal procedure.

High-beam bulbs/Running lights (With running lights)

(Left side)

  1. Make sure the ignition is switched off, and the headlight switch is off.

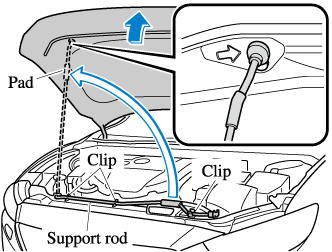

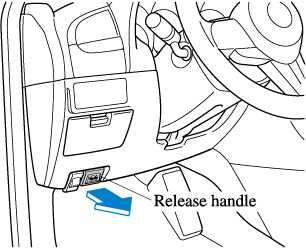

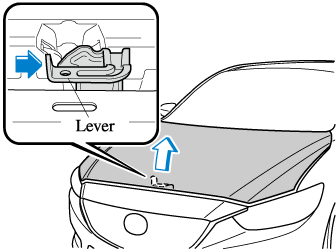

  2. Lift the bonnet.

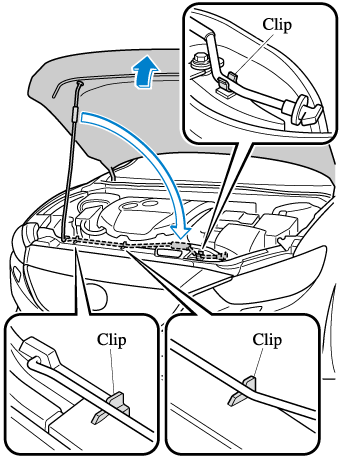

  3. Remove the clip.

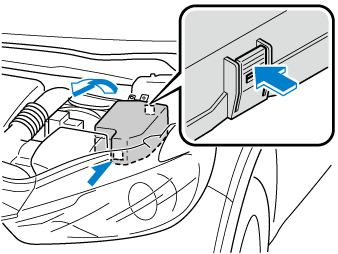

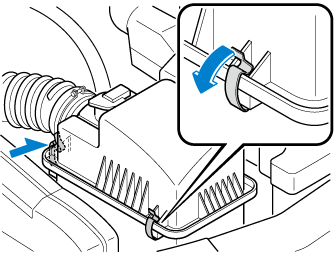

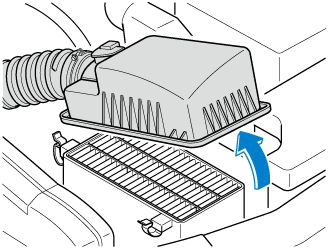

  4. Move the air cleaner cover and create a space large enough to work in.

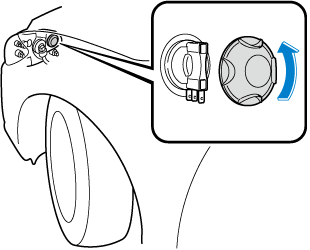

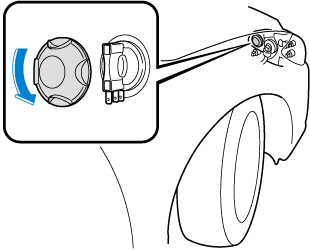

  5. Turn the cover anticlockwise and remove it.

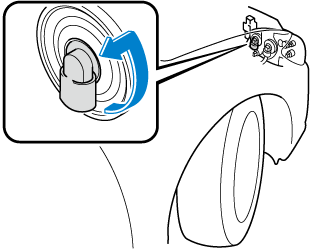

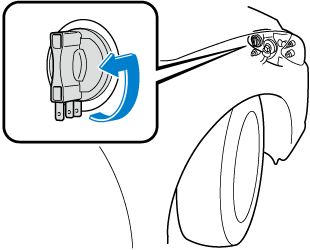

  6. Turn the socket and bulb assembly anticlockwise and remove it.



  7. Install the new bulb in the reverse order of the removal procedure.

(Right side)

  1. Make sure the ignition is switched off, and the headlight switch is off.

  2. Lift the bonnet.

  3. Disconnect the clip.

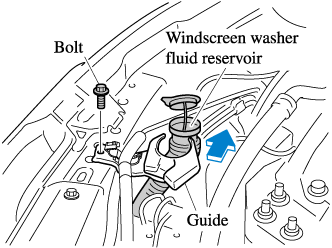

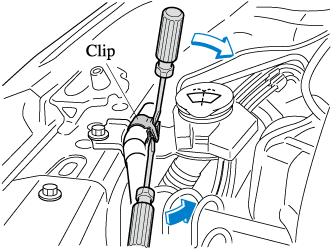

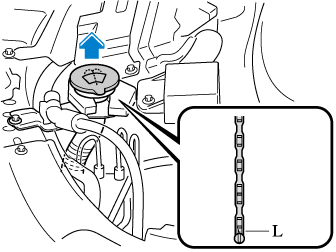

  4. Remove the windscreen washer fluid reservoir and bolts.

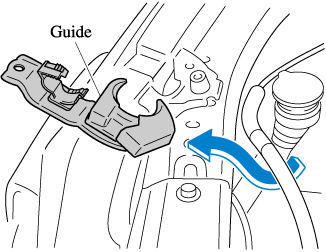

  5. Remove the guide.



  6. Turn the cover anticlockwise and remove it.



  7. Turn the socket and bulb assembly anticlockwise and remove it.



  8. Install the new bulb in the reverse order of the removal procedure.

High-beam bulbs (Without running lights)

(Left side)

  1. Make sure the ignition is switched off, and the headlight switch is off.

  2. Lift the bonnet.

  3. Remove the clip.



  4. Move the air cleaner cover and create a space large enough to work in.

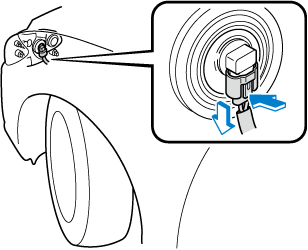

  5. Disconnect the connector from the unit by pressing the tab on the connector with your finger and pulling the connector downward.



  6. Turn the socket and bulb assembly to remove it. Carefully remove the bulb from its socket in the reflector by gently pulling it straight backward out of the socket.



  7. Install the new bulb in the reverse order of the removal procedure.

(Right side)

  1. Make sure the ignition is switched off, and the headlight switch is off.

  2. Lift the bonnet.

  3. Disconnect the clip.

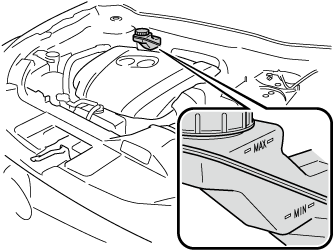

  4. Remove the windscreen washer fluid reservoir and bolts.



  5. Remove the guide.



  6. Disconnect the connector from the unit by pressing the tab on the connector with your finger and pulling the connector downward.



  7. Turn the socket and bulb assembly to remove it. Carefully remove the bulb from its socket in the reflector by gently pulling it straight backward out of the socket.



  8. Install the new bulb in the reverse order of the removal procedure.

Running lights/Position lights (With LED headlights), Signature wing illumination (Some Models)

The LED bulb cannot be replaced as a single unit because it is an integrated unit. The LED bulb has to be replaced with the unit. We recommend an Authorised Mazda Repairer when the replacement is necessary.

Front direction indicator lights, Position lights (With halogen headlights)

  1. Make sure the ignition is switched off, and the headlight switch is off.

  2. If you are changing the right bulb, start the engine, turn the steering wheel all the way to the left, and turn off engine. If you are changing the left bulb, turn the steering wheel to the right.

  3. Pull the centre of each plastic retainer and remove the retainers.



  4. Turn the screw anticlockwise and remove it, and then partially peel back the mudguard.

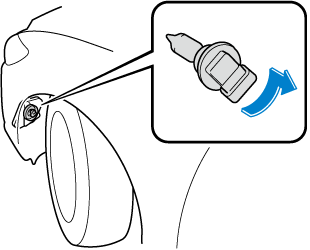

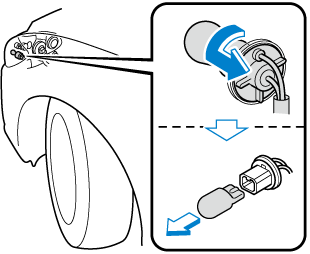

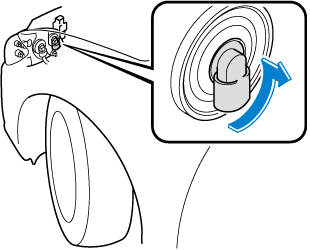

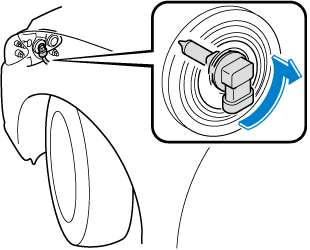

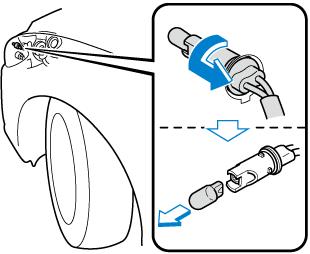

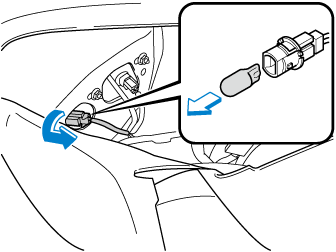

  5. Turn the socket and bulb assembly anticlockwise and remove it.

  6. Disconnect the bulb from the socket.

    Front direction indicator lights



    Position lights (With halogen headlights)

  7. Install the new bulb in the reverse order of the removal procedure.

Front fog lights (Some Models) (With LED headlights)

The LED bulb cannot be replaced as a single unit because it is an integrated unit.

The LED bulb has to be replaced with the unit. We recommend an Authorised Mazda Repairer when the replacement is necessary.

Front fog lights (With halogen headlights)

  1. Make sure the ignition is switched off, and the headlight switch is off.

  2. If you are changing the right bulb, start the engine, turn the steering wheel all the way to the left, and turn off engine. If you are changing the left bulb, turn the steering wheel to the right.

  3. Pull the centre of each plastic retainer and remove the retainers.



  4. Turn the screw anticlockwise and remove it, and then partially peel back the mudguard.



  5. Disconnect the connector from the unit by pressing the tab on the connector with your finger and pulling the connector downward.



  6. Turn the socket and bulb assembly to remove it. Carefully remove the bulb from its socket in the reflector by gently pulling it straight back out of the socket.



  7. Install the new bulb in the reverse order of the removal procedure.

Brake lights/Tail lights, High-mount brake light, Side-direction indicator lights, Brake lights (With LED headlights), Tail lights (With LED headlights)

The LED bulb cannot be replaced as a single unit because it is an integrated unit.

The LED bulb has to be replaced with the unit. We recommend an Authorised Mazda Repairer when the replacement is necessary.

Rear direction indicator lights

Saloon

  1. Make sure the ignition is switched off, and the direction indicator switch is off.

  2. Lift the boot mat.

  3. (Left side)

    Pull the centre of each plastic retainer and remove the retainers and the pocket.

    (Right side)

    Remove the pocket.

    (Left side)

    (Right side)

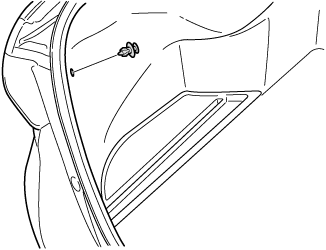

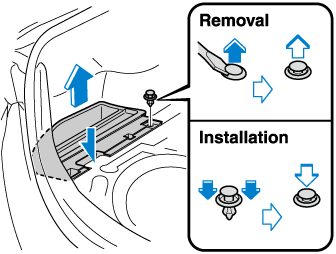

  4. Pull the centre of each plastic retainer and remove the retainers and the boot end trim.

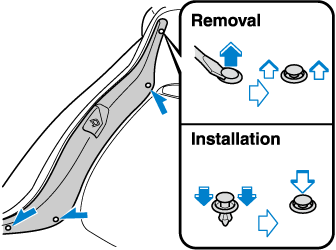

  5. Pull the centre of each plastic retainer and remove the retainers and the boot side trim.

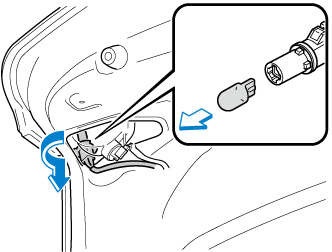

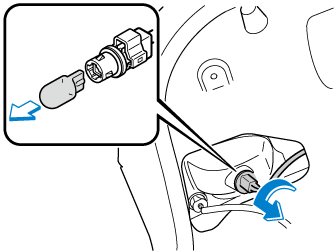

  6. Turn the socket and bulb assembly anticlockwise and remove it.

  7. Disconnect the bulb from the socket.



  8. Install the new bulb in the reverse order of the removal procedure.

Wagon

  1. Make sure the ignition is switched off, and the headlight switch is off.

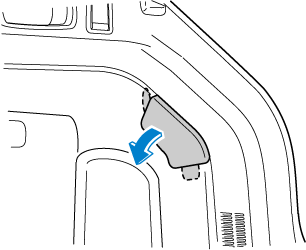

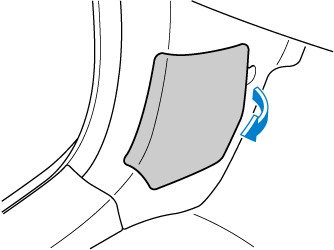

  2. Remove the cover.

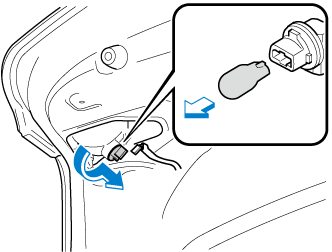

  3. Turn the socket and bulb assembly anticlockwise and remove it.

  4. Disconnect the bulb from the socket.



  5. Install the new bulb in the reverse order of the removal procedure.

Tail lights (Boot lid side/Liftgate side) (With LED headlights)

The LED bulb cannot be replaced as a single unit because it is an integrated unit.

The LED bulb has to be replaced with the unit. We recommend an Authorised Mazda Repairer when the replacement is necessary.

Tail lights (Boot lid side/Liftgate side) (With halogen headlights), Reverse light ,Rear fog light (Some Models)

Saloon

  1. Make sure the ignition is switched off, and the headlight switch is off.

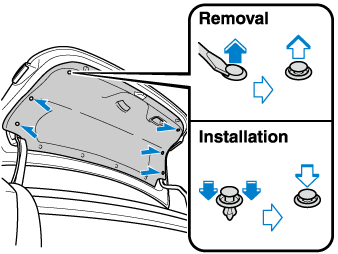

  2. Pull the centre of each plastic retainer and remove the retainers and the boot lid trim.



  3. (Reverse light ,Rear fog light )

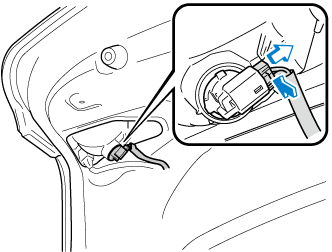

    Disconnect the electrical connector from the bulb by pressing the tab on the connector with your finger and pulling the connector.



  4. Turn the socket and bulb assembly anticlockwise and remove it.

  5. Disconnect the bulb from the socket.

    Tail lights (Boot lid side)



    Reverse light ,Rear fog light



  6. Install the new bulb in the reverse order of the removal procedure.

Wagon

  1. Make sure the ignition is switched off, and the headlight switch is off.

  2. Remove the cover with a cloth-wrapped flathead screwdriver to the cover.



  3. Turn the socket and bulb assembly anticlockwise and remove it.

  4. Disconnect the bulb from the socket.

    Tail lights (Liftgate side)



    Reverse light ,Rear fog light



  5. Install the new bulb in the reverse order of the removal procedure.

Number plate lights

  1. Make sure the ignition is switched off, and the headlight switch is off.

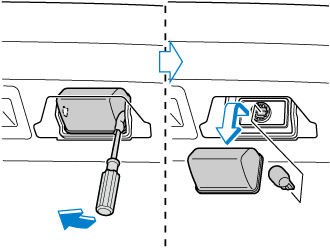

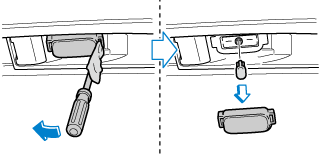

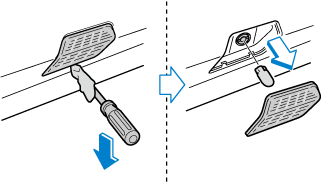

  2. Wrap a flathead screwdriver with a soft cloth to prevent damage to the lens, and then remove the lens by carefully prying on the edge of the lens with a flathead screwdriver.

  3. Disconnect the bulb by pulling it out.

    Saloon



    Wagon



  4. Install the new bulb in the reverse order of the removal procedure.

Replacing Interior Light Bulbs

Overhead lights/Front map lights (LED type), Rear map lights (LED type)

The LED bulb cannot be replaced as a single unit because it is an integrated unit.

The LED bulb has to be replaced with the unit. We recommend an Authorised Mazda Repairer when the replacement is necessary.

Overhead lights/Front map lights (Bulb type), Rear map lights (Bulb type), Vanity mirror lights (Some Models) , Courtesy lights

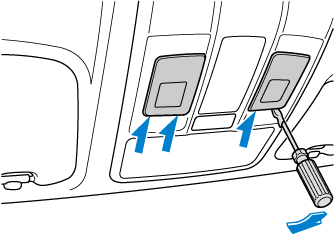

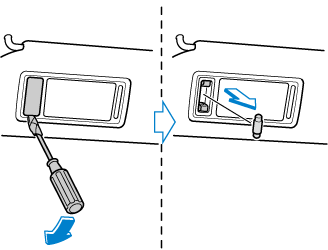

  1. Wrap a small flathead screwdriver with a soft cloth to prevent damage to the lens, and then remove the lens by carefully prying on the edge of the lens with the flathead screwdriver.

  2. Disconnect the bulb by pulling it out.

    Overhead lights/Front map lights





    Rear map lights





    Vanity mirror lights (Some Models)

    Courtesy lights

  3. Install the new bulb in the reverse order of the removal procedure.

Boot light (Saloon)

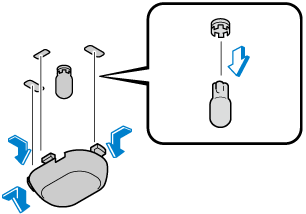

  1. Press both sides of the lens cap to remove it.

  2. Disconnect the bulb by pulling it out.



  3. Install the new bulb in the reverse order of the removal procedure.

Luggage compartment light (Wagon)

(LED type)

The LED bulb cannot be replaced as a single unit because it is an integrated unit.

The LED bulb has to be replaced with the unit. We recommend an Authorised Mazda Repairer when the replacement is necessary.

(Bulb type)

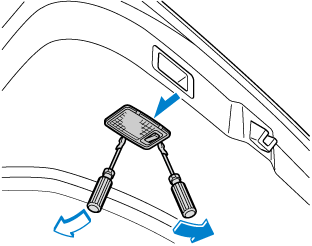

  1. Wrap a small flathead screwdriver with a soft cloth to prevent damage to the lens and remove the lens unit by carefully prying on the edge of the lens unit with the flathead screwdriver.



  2. Disconnect the electrical connector from the bulb by pressing the tab on the connector with your finger and pulling the connector.






    When replacing the bulb always disconnect the connector first. Otherwise, electric and electronic devices could be shorted.

    Close Caution
  3. Insert the flathead screwdriver into the gap between the lens and the lens unit, and then slide the screwdriver to detach the lens.



  4. Disconnect the bulb by pulling it out.



  5. Install the new bulb in the reverse order of the removal procedure.
