If Trouble ArisesFlat TyreSpare Tyre and Tool Storage

Spare Tyre and Tool Storage



Your vehicle may or may not be equipped with a spare tyre, jack, wheel brace, and tool bag. For details, consult an Authorised Mazda Repairer.

Close Note

Spare tyre and tools are stored in the locations illustrated in the diagram.

Saloon

Wagon

If Trouble ArisesFlat TyreSpare Tyre and Tool Storage

Jack (Some Models)

To remove the jack

Saloon

  1. Lift the boot mat.

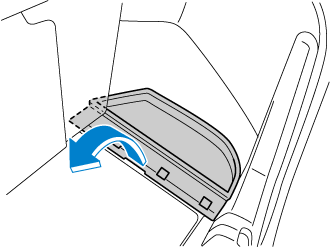

  2. Remove the pocket.

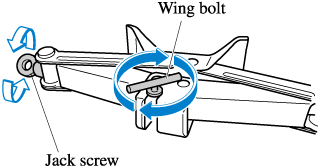

  3. Turn the wing bolt and jack screw anticlockwise.



Wagon

  1. (With spare tyre)

    Remove the boot board.

    (Without spare tyre)

    Lift the boot board.

    (With spare tyre)

    (Without spare tyre)

  2. (With spare tyre)

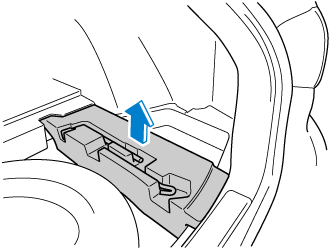

    Remove the cargo sub-compartment.

    (Without spare tyre)

    Rotate the shopping bag hook out of its retainer and set the boot board against it.

    (With spare tyre)

    (Without spare tyre)

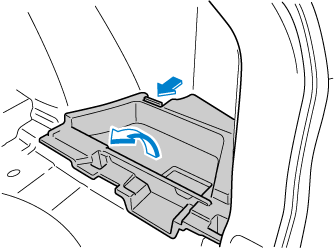

  3. Remove the pocket by pulling the tab.



  4. Turn the wing bolt and jack screw anticlockwise.



To secure the jack

  1. Insert the wing bolt into the jack with the jack screw pointing to the front and turn the wing bolt clockwise to temporarily tighten it.

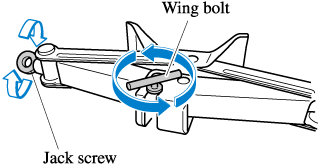

  2. Turn the jack screw in the direction shown in the figure.



  3. Turn the wing bolt completely to secure the jack.



If the jack is not completely secured, it could rattle while driving. Make sure the jack screw is sufficiently tightened.

Close Note

Maintenance

  • Always keep the jack clean.

  • Make sure the moving parts are kept free from dirt or rust.

  • Make sure the screw thread is adequately lubricated.

If Trouble ArisesFlat TyreSpare Tyre and Tool Storage

Spare Tyre (Some Models)

Your Mazda has a temporary spare tyre.

The temporary spare tyre is lighter and smaller than a conventional tyre, and is designed only for emergency use and should be used only for VERY short periods. Temporary spare tyres should NEVER be used for long drives or extended periods.



Do not install the temporary spare tyre on the front wheels (driving wheels):

Driving with the temporary spare tyre on one of the front driving wheels is dangerous. Handling will be affected. You could lose control of the vehicle, especially on ice or snow bound roads, and have an accident. Move a regular tyre to the front wheel and install the temporary spare tyre to the rear.

Close Warning



  • When using the temporary spare tyre, driving stability may decrease compared to when using only the conventional tyre. Drive carefully.

  • To avoid damage to the temporary spare tyre or to the vehicle, observe the following precautions:

    • Do not exceed 80 km/h (50 mph).

    • Avoid driving over obstacles. Also, do not drive through an automatic car wash. This tyre's diameter is smaller than a conventional tyre, so the ground clearance is reduced.

    • Do not use a tyre chain on this tyre because it will not fit properly.

    • Do not use your temporary spare tyre on any other vehicle, it has been designed only for your Mazda.

    • Use only one temporary spare tyre on your vehicle at the same time.

Close Caution

To remove the spare tyre

  1. (Saloon)

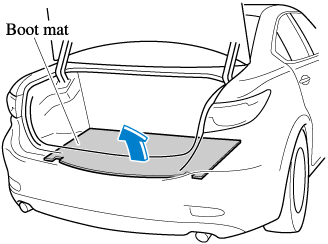

    Lift the boot mat.

    (Wagon)

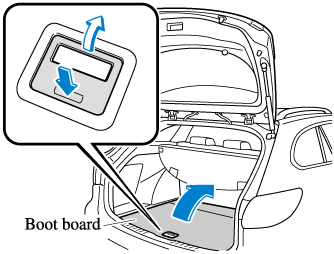

    Remove the boot board.

    (Saloon)

    (Wagon)

  2. Turn the spare tyre hold-down bolt anticlockwise.



To secure the spare tyre

Store the spare tyre in the reverse order of removal. After storing, verify that the spare tyre is stored securely.
