Rear View Monitor (Some Models)

Rear View Monitor (Some Models)

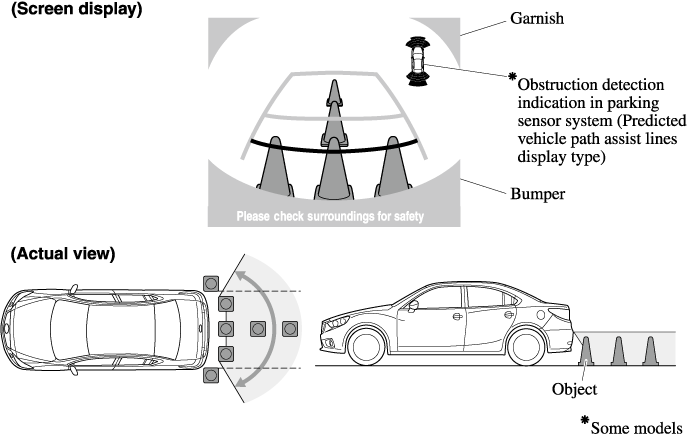

The rear view monitor provides visual images of the rear of the vehicle when reversing.




Always drive carefully confirming the safety of the rear and the surrounding conditions by looking directly with your eyes:

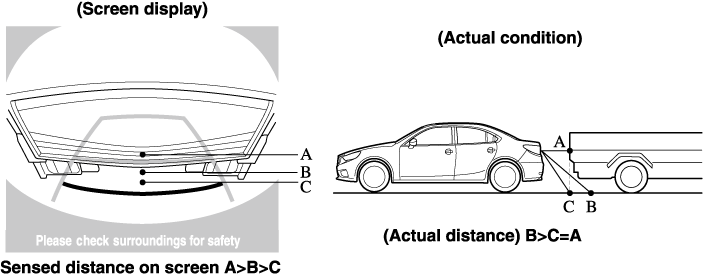

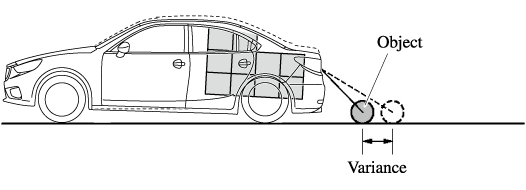

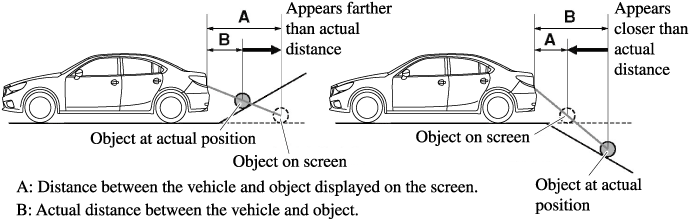

Reversing the vehicle by only looking at the screen is dangerous as it may cause an accident or a collision with an object. The rear view monitor is only a visual assist device when reversing the vehicle. The images on the screen may be different from the actual conditions.

Close Warning
View Warning




  • Do not use the rear view monitor under the following conditions: Using the rear view monitor under the following conditions is dangerous and could result in injury or vehicle damage or both.

    • Icy or snow-covered roads.

    • Tyre chains or a temporary spare tyre is installed.

    • The boot lid/liftgate is not fully closed.

    • The vehicle is on a road incline.

  • When the display is cold, images may course across the monitor or the screen and may be dimmer than usual, which could cause difficulty in confirming the surrounding conditions of the vehicle. Always drive carefully confirming the safety of the rear and the surrounding conditions by looking directly with your eyes.

  • Do not apply excessive force to the camera. The camera position and angle may deviate.

  • Do not disassemble, modify, or remove it as it may no longer be waterproof.

  • The camera cover is made of plastic. Do not apply degreasing agents, organic solvents, wax, or glass coating agents to the camera cover. If any are spilled on the cover, wipe off with a soft cloth immediately.

  • Do not rub the camera cover forcefully with an abrasive or hard brush. The camera cover or lens may be scratched which might affect the images.

Close Caution
View Caution




  • If water, snow, or mud is stuck on the camera lens, wipe it off using a soft cloth. If it cannot be wiped off, use a mild detergent.

  • If the camera temperature changes rapidly (Hot to cold, cold to hot), the rear view monitor may not operate correctly.

  • When replacing the tyres, consult an expert repairer, we recommend an Authorised Mazda Repairer. Replacing the tyres could result in deviation of the guide lines which appear on the display.

  • If the vehicle's front, side, or rear has been involved in a collision, the alignment of the rear view parking camera (location, installation angle) may have deviated. Always consult an expert repairer, we recommend an Authorised Mazda Repairer to have the vehicle inspected.

  • If “No Video Signal Available” is indicated in the display, there could be a problem with the camera. Have your vehicle inspected at an expert repairer, we recommend an Authorised Mazda Repairer.
