Interior Features Interior Equipment Rear Sunshade (Some Models)

Interior Equipment

Sunvisors

Interior Features Interior Equipment Sunvisors

Sunvisors

When you need a sunvisor, lower it for use in front or swing it to the side.

Interior Features Interior Equipment Sunvisors

Vanity Mirrors

To use the vanity mirror, lower the sunvisor.

If your vehicle is equipped with a vanity mirror light, it will illuminate when you open the cover.

To prevent the battery from being discharged, the vanity mirror will only illuminate in the tilt range shown in the figure.

Interior Lights

Interior Features Interior Equipment Interior Lights

Interior Lights

Do not leave the lights on for long periods while the engine is turned off. Otherwise the battery power could be depleted.

Close Note

View Note

Overhead Lights

Switch Position	Overhead Lights
	Light off
	Light is on when any door is open Light is on or off when the illuminated entry system is on
	Light on

The rear map lights also turn on and off when the overhead light switch is operated.

Close Note

View Note

Front Map Lights

When the overhead light switch is in the door or off position, press the lens to illuminate the front map lights, and then press the lens again to turn them off.

The front map lights will not turn off even if the lens is pressed in the following cases:

The overhead light switch is in the ON position.
The overhead light switch is in the door position with the door open.
The illuminated entry system is on.

Close Note

View Note

Rear Map Lights

When the overhead light switch is in the door or off position, press the lens to illuminate a rear map light, and then press the lens again to turn it off.

Once the rear map lights have been turned off, they will turn on and off depending on the position to which the overhead light is switched.
The rear map lights will not turn off even if the lens is pressed in the following cases:
- The overhead light switch is ON.
- The overhead light switch is in the door position with the door open.
- The illuminated entry system is on.

Close Note

View Note

Luggage Compartment Lights

Switch Position	Luggage Compartment Light
	Light off
	Light on when the liftgate is open

Boot Light

The boot light is on when the lid is open and off when it's closed.

To prevent the battery from being discharged, do not leave the boot open for a long period when the engine is not running.

Close Note

View Note

Courtesy Lights

Turns on when any door is open or the illuminated entry system is on.

Ambient Light (Some Models)

An ambient light continuously turn on when the ignition is switched ON.

An ambient light dim when the position lights or headlights are turned on.

An ambient light turn on or off in conjunction with the illuminated entry system when the ignition is switched OFF.
The ambient light illumination level can be changed while the position lights or headlights are turned on.

Refer to Personalisation Features (Search).

Close Note

View Note

Interior Features Interior Equipment Interior Lights

Illuminated Entry System

When the illuminated entry system operates, the overhead lights, the courtesy lights, and an ambient light (Some Models) turn on in the following conditions:

The driver's door is unlocked after the ignition is switched OFF.
The ignition is switched OFF with all doors closed.

(Overhead lights)

The illuminated entry system operates when the overhead light switch is in the DOOR position.
The illumination time differs depending on the operation.
Battery saver

If an interior light is left on with the ignition switched OFF, the light is turned off automatically after about 30 minutes to prevent battery depletion.
The operation of the illuminated entry system can be changed.

Refer to Personalisation Features (Search).

Close Note

View Note

Accessory Sockets

Interior Features Interior Equipment Accessory Sockets

Accessory Sockets

Only use genuine Mazda accessories or the equivalent requiring no greater than 120 W (DC 12 V, 10 A).

The ignition must be switched to ACC or ON.

Front

Centre

Rear (Wagon)

To prevent accessory socket damage or electrical failure, pay attention to the following:
- Do not use accessories that require more than 120 W (DC 12 V, 10 A).
- Do not use accessories that are not genuine Mazda accessories or the equivalent.
- Close the cover when the accessory socket is not in use to prevent foreign objects and liquids from getting into the accessory socket.
- Correctly insert the plug into the accessory socket.
- Do not insert the cigarette lighter into the accessory socket.
Noise may occur on the audio playback depending on the device connected to the accessory socket.
Depending on the device connected to the accessory socket, the vehicle's electrical system may be affected, which could cause the warning light to illuminate. Disconnect the connected device and make sure that the problem is resolved. If the problem is resolved, disconnect the device from the socket and switch the ignition off. If the problem is not resolved, consult an expert repairer, we recommend an Authorised Mazda Repairer.

Close Caution

View Caution

To prevent discharging of the battery, do not use the socket for long periods with the engine off or idling.

Close Note

View Note

Connecting the accessory socket

Open the lid.
Pass the connection plug cord through the cutout of the console and insert the plug into the accessory socket.

Cup Holder

Interior Features Interior Equipment Cup Holder

Cup Holder

Never use a cup holder to hold hot liquids while the vehicle is moving:

Using a cup holder to hold hot liquids while the vehicle is moving is dangerous. If the contents spill, you could be scalded.

Do not put anything other than cups or drink cans in cup holders:

Putting objects other than cups or drink cans in a cup holder is dangerous.

During sudden braking or manoeuvring, occupants could be hit and injured, or objects could be thrown around the vehicle, causing interference with the driver and the possibility of an accident. Only use a cup holder for cups or drink cans.

Close Warning

View Warning

Interior Features Interior Equipment Cup Holder

Front

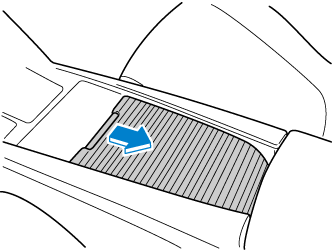

To use the cup holder, slide the cover and open it.

Interior Features Interior Equipment Cup Holder

Rear

The rear cup holder is on the rear centre armrest.

Bottle Holder

Interior Features Interior Equipment Bottle Holder

Bottle Holder

Bottle holders are on the inside of the doors.

Do not use the bottle holders for containers without caps. The contents may spill when the door is opened or closed.

Close Caution

View Caution

Storage Compartments

Interior Features Interior Equipment Storage Compartments

Storage Compartments

Keep storage boxes closed when driving:

Driving with the storage boxes open is dangerous. To reduce the possibility of injury in an accident or a sudden stop, keep the storage boxes closed when driving.

Do not put articles in storage spaces with no lid:

Putting articles in storage spaces with no lid is dangerous as they could be thrown around the cabin if the vehicle is suddenly accelerated and cause injury depending on how the article is stored.

Close Warning

View Warning

Do not leave lighters or eyeglasses in the storage boxes while parked under the sun. A lighter could explode or the plastic material in eyeglasses could deform and crack from high temperature.

Close Caution

View Caution

Interior Features Interior Equipment Storage Compartments

Overhead Console

This console box is designed to store eyeglasses or other accessories.

Push and release to open.

Interior Features Interior Equipment Storage Compartments

Storage Pocket

To use, open the lid.

Interior Features Interior Equipment Storage Compartments

Glove Compartment

To open the glove compartment, pull the latch toward you.

To close the glove compartment, firmly press in the centre of the glove compartment lid.

Interior Features Interior Equipment Storage Compartments

Centre Console

To open, pull the lower release handle.

Interior Features Interior Equipment Storage Compartments

Cargo Securing Loops (Wagon)

Make sure luggage and cargo is secured before driving:

Not securing cargo while driving is dangerous as it could move or be crushed during sudden braking or a collision and cause injury.

Close Warning

View Warning

Use the loops in the luggage compartment to secure cargo with a rope or net. The tensile strength of the loops is 196 N (20 kgf, 44 lbf). Do not apply excessive force to the loops as it will damage them.

Interior Features Interior Equipment Storage Compartments

Cargo Sub-Compartment (Some Models)

(Wagon)

Lift the luggage board.
Rotate the shopping bag hook out of its retainer and set the luggage board against it.

(Saloon)

Lift the boot mat.

Interior Features Interior Equipment Storage Compartments

Shopping Bag Hook (Wagon)

The shopping bag hook can be used for hanging shopping bags.

Do not hang excessive weight on the shopping bag hook as it could be damaged.

Close Caution

View Caution

Interior Features Interior Equipment Storage Compartments

Rear Coat Hooks

Never hang heavy or sharp objects on the assist grips and coat hooks:

Hanging heavy or sharp-ended objects such as a coat hanger from the assist grips or coat hooks is dangerous as they can fly off and hit an occupant in the cabin if a curtain air bag was to deploy, which could result in serious injury or death.

Close Warning

View Warning

Always hang clothes on the coat hooks and the assist grips without hangers.

Removable Ashtray (Some Models)

Interior Features Interior Equipment Removable Ashtray (Some Models)

Removable Ashtray (Some Models)

The removable ashtray can be fixed and used in either of the front cup holders.

Only use the removable ashtray in its fixed position, and make sure it is completely inserted:

Using an ashtray removed from its fixed position or not completely inserted is dangerous. Cigarettes could roll around or spill out of the ashtray into the vehicle and start a fire. Moreover, cigarette stubs will not extinguish themselves completely even if the ashtray lid is closed.

Close Warning

View Warning

Do not use the ashtray for rubbish. You might start a fire.

Close Caution

View Caution

To use the ashtray, insert it straight into the cup holder.

To remove the ashtray, pull it upward.

Rear Sunshade (Some Models)

Interior Features Interior Equipment Rear Sunshade (Some Models)

Rear Sunshade (Some Models)

When the rear sunshade switch is operated with the ignition switched ON, the rear sunshade rises/lowers.

When operating the rear sunshade, be careful that a passenger's hand or head does not get pinched:

Be very careful of children. If a child's hand or head is pinched, it could result in serious injury or death.

Be careful that a person's hair does not get caught in the housing for the rear sunshade:

If a person's hair becomes caught while the rear sunshade is lowering, it could result in serious injury.

Close Warning

View Warning

Do not place objects around the housing for the rear sunshade. Otherwise, they could get caught in the mechanism while it is operating, resulting in a malfunction.

Do not pull the rear sunshade. If it is forcefully pulled, it could be damaged.

Close Caution

View Caution

Interior Features Interior Equipment Rear Sunshade (Some Models)

Operating the Rear Sunshade

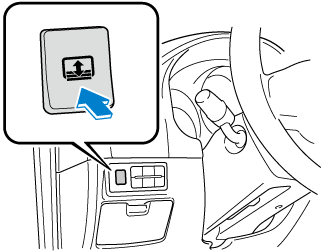

The rear sunshade rises/lowers automatically when the rear sunshade switch is pressed.

The rear sunshade stops automatically after rising/lowering completely.

When the shift lever/selector lever is in the R position, the rear sunshade lowers automatically.
If an object contacts the rear sunshade while it is moving, it may stop. If it stops moving, remove the object, then press the switch again to lower the sunshade.

Close Note

View Note
