Specifications
Specifications
Engine
Petrol engine
|
Item |
Specification |
|
|---|---|---|
|
SKYACTIV-G 2.5 |
SKYACTIV-G 2.5T |
|
|
Type |
DOHC-16V in-line, 4-cylinder |
|
|
Bore × Stroke |
89.0 × 100 mm (3.50 × 3.94 in) |
|
|
Displacement |
2,488 ml (2,488 cc) |
|
|
Compression ratio |
13.0 |
10.5 |
Diesel engine
|
Item |
Specification |
|---|---|
|
SKYACTIV-D 2.2 |
|
|
Type |
DOHC-16V in-line, 4-cylinder |
|
Bore × Stroke |
86.0 × 94.3 mm (3.39 × 3.71 in) |
|
Displacement |
2,191 ml (2,191 cc) |
|
Compression ratio |
14.4 |
Electrical System
Battery
|
Classification |
Specification |
|---|---|
|
SKYACTIV-G 2.5, SKYACTIV-G 2.5T |
Q-85*1 |
|
SKYACTIV-D 2.2 |
S-95*1 |
-
Q-85 or S-95 is designed for i-stop system (FOR STOP & START)/i-ELOOP system. Only Q-85 or S-95 should be used to ensure correct operation of i-stop system (FOR STOP & START)/i-ELOOP system. Consult an expert repairer, we recommend an Authorised Mazda Repairer for details.
Spark-plug
|
Classification |
Specification |
|
|---|---|---|
|
SKYACTIV-G 2.5 |
Mazda Genuine spark plug*1 |
PE5R-18-110 or PE5S-18-110 |
|
SKYACTIV-G 2.5T |
Mazda Genuine spark plug*1 |
PY8V-18-110 |
-
The spark plugs provide the SKYACTIV-G its optimum performance. Consult an expert repairer, we recommend an Authorised Mazda Repairer for details.
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the iridium alloy and platinum tips could be damaged.
Lubricant Quality
|
Lubricant |
Classification |
|
|---|---|---|
|
Engine oil*1 |
SKYACTIV-G 2.5 |
API SL/SM/SN or ILSAC GF-III/GF-IV/GF-V |
|
SKYACTIV-G 2.5T |
API SM/SN or ILSAC GF-IV/GF-V |
|
|
SKYACTIV-D 2.2 |
ACEA C3 |
|
-
Refer to the recommended SAE viscosity numbers (Search).
|
Lubricant |
Classification |
|
|---|---|---|
|
Coolant |
FL-22 type |
|
|
Automatic transaxle fluid |
Mazda Genuine special fluid (ATF FZ) |
|
|
Brake fluid |
SAE J1703 or FMVSS116 DOT-3 |
|
Capacities
(Approximate Quantities)
|
Item |
Capacity |
||
|---|---|---|---|
|
Engine oil |
SKYACTIV-G 2.5 |
With oil filter replacement |
4.5 L (4.8 US qt, 4.0 Imp qt) |
|
Without oil filter replacement |
4.3 L (4.5 US qt, 3.8 Imp qt) |
||
|
SKYACTIV-G 2.5T |
With oil filter replacement |
4.8 L (5.1 US qt, 4.2 Imp qt) |
|
|
Without oil filter replacement |
4.6 L (4.9 US qt, 4.0 Imp qt) |
||
|
SKYACTIV-D 2.2 |
With oil filter replacement |
5.1 L (5.4 US qt, 4.5 Imp qt) |
|
|
Without oil filter replacement |
4.8 L (5.1 US qt, 4.2 Imp qt) |
||
|
Coolant |
SKYACTIV-G 2.5 |
6.9 L (7.3 US qt, 6.1 Imp qt) |
|
|
SKYACTIV-G 2.5T, SKYACTIV-D 2.2 |
8.6 L (9.1 US qt, 7.6 Imp qt) |
||
|
Automatic transaxle fluid |
8.0 L (8.5 US qt, 7.0 Imp qt) |
||
|
Fuel tank |
62.0 L (16.4 US gal, 13.6 Imp gal) |
||
Check oil and fluid levels with dipsticks or reservoir gauges.
Dimensions
Saloon
|
Item |
Vehicle specification |
|
|---|---|---|
|
Overall length |
Without number plate holder |
4,865 mm (191.5 in) |
|
With number plate holder |
4,870 mm (191.7 in) |
|
|
Overall width |
1,840 mm (72.4 in) |
|
|
Overall height |
1,450 mm (57.1 in) |
|
|
Front tread |
17 inch wheel vehicle |
1,585 mm (62.4 in) |
|
19 inch wheel vehicle |
1,595 mm (62.8 in) |
|
|
Rear tread |
17 inch wheel vehicle |
1,575 mm (62.0 in) |
|
19 inch wheel vehicle |
1,585 mm (62.4 in) |
|
|
Wheelbase |
2,830 mm (111.4 in) |
|
Wagon
|
Item |
Vehicle specification |
|
|---|---|---|
|
Overall length |
Without number plate holder |
4,800 mm (189.0 in) |
|
With number plate holder |
4,805 mm (189.2 in) |
|
|
Overall width |
1,840 mm (72.4 in) |
|
|
Overall height |
1,480 mm (58.3 in) |
|
|
Front tread |
17 inch wheel vehicle |
1,585 mm (62.4 in) |
|
19 inch wheel vehicle |
1,595 mm (62.8 in) |
|
|
Rear tread |
17 inch wheel vehicle |
1,575 mm (62.0 in) |
|
19 inch wheel vehicle |
1,585 mm (62.4 in) |
|
|
Wheelbase |
2,750 mm (108.3 in) |
|
Light Bulbs
Exterior light
|
Light bulb |
Category |
||
|---|---|---|---|
|
Wattage |
UN-R*1 (SAE) |
||
|
Headlights |
LED*2 |
― (―) |
|
|
Running lights/Position lights |
LED type |
LED*2 |
― (―) |
|
Bulb type |
21/5 |
W21/5W (7444) |
|
|
Tail lights |
LED type |
LED*2 |
― (―) |
|
Bulb type |
5 |
W5W (―) |
|
|
Rear direction indicator lights |
Saloon |
LED*2 |
― (―) |
|
Wagon |
21 |
WY21W (7443NA) |
|
|
Reverse lights |
Saloon |
LED*2 |
― (―) |
|
Wagon |
21 |
W21W (7440) |
|
|
LED*2 |
― (―) |
|
-
UN-R stands for United Nations Regulation.
-
LED is the abbreviation for Light Emitting Diode.
Interior light
|
Light bulb |
Category |
||
|---|---|---|---|
|
Wattage |
UN-R*1 |
||
|
Boot light (Saloon) |
Bulb type |
3 |
― |
|
LED type |
LED*2 |
― |
|
|
Luggage compartment light (Wagon) |
Bulb type |
8 |
― |
|
LED type |
LED*2 |
― |
|
|
Overhead light (Front)/Map lights |
Bulb type |
8 |
― |
|
LED type |
LED*2 |
― |
|
|
Rear map lights |
Bulb type |
8 |
― |
|
LED type |
LED*2 |
― |
|
|
Vanity mirror lights |
Bulb type |
2 |
― |
|
LED type |
LED*2 |
― |
|
|
Courtesy lights |
LED*2 |
― |
|
|
Ambient lights (Some Models) |
LED*2 |
― |
|
-
UN-R stands for United Nations Regulation.
-
LED is the abbreviation for Light Emitting Diode.
Tyres

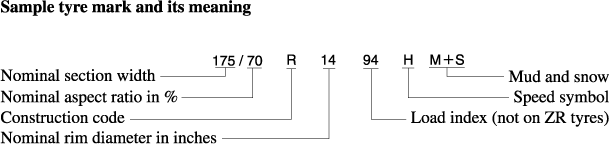

Tyre mark information
Choose the proper tyres for your vehicle using the following tyre mark information.
|
Speed symbol |
Maximum permissible speed |
|---|---|
|
Q |
Up to 160 km/h (99 mph) |
|
R |
Up to 170 km/h (105 mph) |
|
S |
Up to 180 km/h (111 mph) |
|
T |
Up to 190 km/h (118 mph) |
|
U |
Up to 200 km/h (124 mph) |
|
H |
Up to 210 km/h (130 mph) |
|
V |
Up to 240 km/h (149 mph) |
|
W |
Up to 270 km/h (167 mph) |
|
Y |
Up to 300 km/h (186 mph) |
|
ZR |
Over 240 km/h (149 mph) |
Tyre and inflation pressure
The tyres have been optimally matched with the chassis of your vehicle.
When replacing tyres, Mazda recommends that you replace tyres of the same type originally fitted to your vehicle. For details, contact an expert repairer, we recommend an Authorised Mazda Repairer.
Check the tyre pressure label for tyre size and inflation pressure (Search).
Standard tyre
|
Tyre size |
Inflation pressure |
||
|---|---|---|---|
|
Up to 3 persons |
―Full load |
||
|
225/55R17 97V |
Front |
230 kPa (2.3 bar, 33 psi) |
250 kPa (2.5 bar, 36 psi) |
|
Rear |
230 kPa (2.3 bar, 33 psi) |
320 kPa (3.2 bar, 46 psi) |
|
|
225/45R19 92W |
Front |
230 kPa (2.3 bar, 33 psi)*1 |
250 kPa (2.5 bar, 36 psi)*1 |
|
Rear |
230 kPa (2.3 bar, 33 psi) |
320 kPa (3.2 bar, 46 psi) |
|
1 person's weight: About 75 kg
-
-
SKYACTIV-G 2.5 (Saloon)
Before driving at high speeds, increase the pressure of the front tyres. For speeds above 210 km/h (130 mph), increase the pressure of the front tyres by 10 kPa (0.1 bar, 1.5 psi).
-
SKYACTIV-G 2.5T
Before driving at high speeds, increase the pressure of the front tyres. For speeds above 210 km/h (130 mph), increase the pressure of the front tyres by 30 kPa (0.3 bar, 4.4 psi).
-
SKYACTIV-D 2.2
Before driving at high speeds, increase the pressure of the front tyres. For speeds above 190 km/h (118 mph), increase the pressure of the front tyres by 20 kPa (0.2 bar, 2.9 psi).
-
Temporary spare tyre
|
Tyre size |
Inflation pressure |
|---|---|
|
T125/70R17 98M |
420 kPa (60 psi) |
Wheel nut tightening torque
When installing a tyre, tighten the wheel nut to the following torque.
108―147 N·m (12―14 kgf·m, 80―108 ft·lbf)
Fuses
Refer to Fuses (Search).
