Interior FeaturesAudio SystemAudio Set [Type B/Type C (touchscreen)]

Audio Set [Type B/Type C (touchscreen)]



The explanation of functions described in this manual may differ from the actual operation, and the shapes of screens and buttons and the letters and characters displayed may also differ from the actual appearance.

Additionally, depending on future software updates, the content may successively change without notice.

Close Note

Audio Set (Type B/Type C) has three different human interfaces.

  • Commander switch

  • Touch panel

  • Voice recognition with steering switch and microphone

Commander switch operation



For safety reasons, some operations are disabled while the vehicle is being driven.

Close Note

Volume dial operation

Press the volume dial to switch the audio MUTE on and off.

Turn the volume dial to adjust the volume. The volume increases by turning the dial clockwise, and decreases by turning it anticlockwise.

Switches around commander knob

The following operations can be done by pressing the switches around the commander knob.

: Displays the home screen.

: Displays the Entertainment screen.

: Displays the Navigation screen (Only navigation-equipped vehicles). For operation of the Navigation screen, refer to the navigation system manual. If the SD card for the navigation system is not inserted, the compass indicating the direction in which the vehicle is moving is displayed.

: Displays the Favourites screen. Long-press to store particular items in Favourites. (Radio, phonebook and destination of the navigation system can be programmed.)

: Returns to previous screen.

Commander knob operation



(Selection of icons on screen)

  1. Tilt or turn the commander knob and move the cursor to the desired icon.

  2. Press the commander knob and select the icon.



Long-press operation of the commander knob is also possible for some functions.

Close Note

Touch panel operation



Do not press the screen strongly or press it with a sharp-pointed object. Otherwise, the screen could be damaged.

Close Caution



For safety reasons, operation of the centre display is disabled while the vehicle is being driven. However, items not displayed in grey can be operated using the commander switch while the vehicle is being driven.

Close Note



Interior FeaturesAudio SystemAudio Set [Type B/Type C (touchscreen)]

Basic Operation Method

TOUCH & TAP

  1. Touch or tap on the item indicated on the screen.

  2. The operation is launched and the next item is displayed.

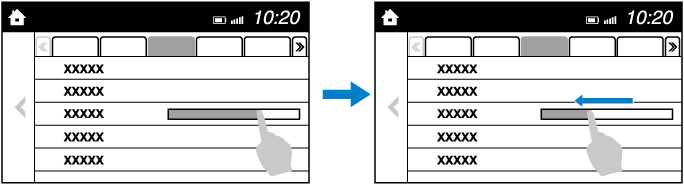

SLIDE

  1. Touch the setting item displaying a slider bar.

  2. Touch the slider with your finger and move to the desired level.

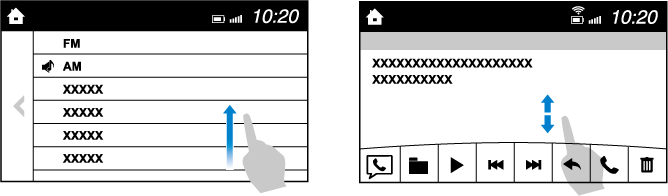

SWIPE

  1. Touch the screen with your finger and move up or down.

  2. Items which were not displayed can be displayed.



Return to previous screen

  1. Touch the .

Displaying the home screen

  1. Touch the .

Interior FeaturesAudio SystemAudio Set [Type B/Type C (touchscreen)]

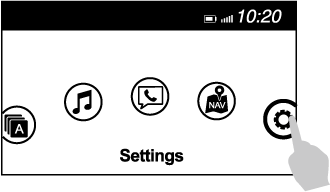

Home screen

Icon

Function

Applications

Information such as average fuel economy, maintenance, and warnings can be verified.

Depending on the grade and specification, the screen display may differ.

Entertainment

Operates audio such as the radio and CDs. The audio source most recently used is displayed. An audio source which cannot be used at that time is skipped and the previous audio source is displayed.

To change the audio source, select the icon displayed at the bottom of the screen.

Communication

Bluetooth® related functions are available.

Navigation

Navigation screen is displayed (vehicles with navigation system).

If the SD card for the navigation system is not inserted, the compass indicating the direction in which the vehicle is moving is displayed.

The compass may not indicate the correct bearing when the vehicle is stopped or travelling at a slow speed.

Settings

Overall setting menu (Such as display, sound, Bluetooth® and Language).

Depending on the grade and specification, the screen display may differ.

Interior FeaturesAudio SystemAudio Set [Type B/Type C (touchscreen)]

Volume/Display/Sound Controls

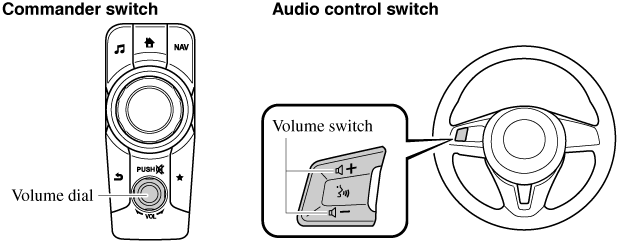

Volume adjustment

Turn the commander switch volume dial. The volume switch on the steering switch can also be pressed.

Display setting

Select the icon on the home screen to display the Settings screen.

Select the tab to select the item you would like to change.

Display OFF/Clock

The centre display can be turned off. Select to turn the display off.

When is selected the centre display turns off and the clock is displayed.

The centre display can be turned back on as follows:

  • Touch the centre display.

  • Operate the commander switch.

Daytime/nighttime (Mode) screen setting

The daytime or nighttime screen can be selected.

: Switches screen automatically according to headlight illumination condition*1

: Daytime screen setting

: Nighttime screen setting

  1. The display is constantly on daytime screen when the illumination dimmer is cancelled.

Brightness adjustment

Adjust the centre display brightness using the slider.

Contrast adjustment

Adjust the centre display contrast using the slider.

Display setting reset

All of the screen setting values can be reset to their initial settings.

  1. Select .

  2. Select .

Audio sound adjustment

Select the icon on the home screen to display the Settings screen.

Select the tab to select the item you would like to change.

Indication

Setting value

Bass

(Low pitch sound)

Side: Low pitch enhancement

Side: Low pitch reduction

Treble

(Treble sound)

Side: Treble enhancement

Side: Treble reduction

Fade

(Front/Rear volume balance)

Front: Front speaker volume enhancement

Rear: Rear speaker volume enhancement

Balance

(Left/right volume balance)

Right: Right speaker volume enhancement

Left: Left speaker volume enhancement

ALC*1

(Automatic volume adjustment)

Off―Adjustment at seven levels

Bose® AudioPilot*2

(Automatic volume adjustment)

On/Off

Beep

(Audio operation sound)

On/Off

  1. Standard audio

  2. Bose® Sound System

ALC (Automatic volume adjustment)

The automatic level control (ALC) is a feature that automatically adjusts audio volume and sound quality according to the vehicle speed. The volume increases in accordance with the increase in vehicle speed, and decreases as vehicle speed decreases.



Bose® AudioPilot (Automatic volume adjustment)

When driving, background noise can interfere with enjoying music.

AudioPilot®*3 noise compensation technology continuously adjusts the music to compensate for background noise and vehicle speed.

It reacts only to sustained noise sources and not intermittent ones, such as speed bumps.

An enhanced DSP algorithm allows faster and more effective compensation for unusual situations, such as driving on a very rough road or at high speeds.

In addition, a system is equipped which switches the audio to the optimum acoustics corresponding to the opening and closing of the soft top/roof.

The acoustic switching function is linked to the operation of the top lock lever/retractable fastback switch and audio playback is muted for about 1 second while switching.

*3 AudioPilot® is a registered trademark of Bose Corporation.

Interior FeaturesAudio SystemAudio Set [Type B/Type C (touchscreen)]

Operating the Radio (Type B)

Radio ON

Select the icon on the home screen to display the Entertainment screen. When selecting the desired radio, the following icons are indicated in the lower part of the centre display.

AM/FM Radio

Icon

Function

Displays the Entertainment menu. Use to switch to a different audio source.

Displays the station list.

Select to display the frequencies of up to ten radio stations on the auto memory preset list.

Select the desired frequency.

Displays the Favourites list. Long-press to store radio station currently being aired.

You can search for receivable radio stations.

Scanning stops at each station for about five seconds.

Select again to continue receiving the radio station.

You can change the radio frequency manually.

Rotate the commander knob, slide the screen, or touch the radio frequency.

Press or to change the radio frequency one step at a time.

When or is long-pressed, the radio frequency changes continually. It stops when you remove your hand from the icon or the commander knob.

Automatic radio station selection.

When long-pressed, the radio frequency changes continually. It stops when you remove your hand from the icon or the commander knob.

Displays sound settings to adjust audio quality level.

Refer to Volume/Display/Sound Controls (Search).

Favourites Radio

Selected stations can be registered for convenient operation. Up to 50 stations can be registered. The Favourites list is common to AM and FM radio.

Registering to Favourites

Long-press the icon to register the current radio station. The registration can also be performed using the following procedure.

  1. Select the icon to display the Favourites list.

  2. Select .

  3. Select .

  4. The station is added to the bottom of the Favourites list.



    If the battery is disconnected, your Favourites list will not be deleted.

    Close Note

Selecting radio station from Favourites

  1. Select the icon to display the Favourites list.

  2. Select the radio frequency to tune in the radio station.

Deleting from Favourites

  1. Select the icon to display the Favourites list.

  2. Select .

  3. Select .

  4. Select the radio frequency you want to delete.

  5. Select .

Changing Favourites list order

  1. Select the icon to display the Favourites list.

  2. Select .

  3. Select .

  4. Select a radio frequency. The selected radio station can be moved.

  5. Slide the radio station or move it using the commander switch, then select .

Interior FeaturesAudio SystemAudio Set [Type B/Type C (touchscreen)]

Operating the Radio (Type C)

Radio ON

Select the icon on the home screen to display the Entertainment screen. When selecting the desired radio, the following icons are indicated in the lower part of the centre display.

AM/FM Radio

Icon

Function

Displays the Entertainment menu. Use to switch to a different audio source.

Displays the list of receivable RDS radio stations (FM only).

Displays the station list (AM only).

Select to display the frequencies of up to ten radio stations on the auto memory preset list.

Select the desired frequency.

Displays the Favourites list. Long-press to store radio station currently being aired.

You can search for receivable radio stations.

Scanning stops at each station for about five seconds.

Select again to continue receiving the radio station.

You can change the radio frequency manually.

Rotate the commander knob, slide the screen, or touch the radio frequency.

Press or to change the radio frequency one step at a time.

When or is long-pressed, the radio frequency changes continually. It stops when you remove your hand from the icon or the commander knob.

Switches the TA mode on and off.

Automatic radio station selection.

When long-pressed, the radio frequency changes continually. It stops when you remove your hand from the icon or the commander knob.

Displays the FM settings screen (FM only).

On/Off of Alternative frequency and Region lock can be set.

Displays sound settings to adjust audio quality level.

Refer to Volume/Display/Sound Controls (Search).



When the or icon is selected while FM is selected, each programme is selected.

Close Note

Favourites Radio

Selected stations can be registered for convenient operation. Up to 50 stations can be registered. The Favourites list is common to AM, FM and DAB radio (Some Models).

Registering to Favourites

Long-press the icon to register the current radio station. The registration can also be performed using the following procedure.

  1. Select the icon to display the Favourites list.

  2. Select .

  3. Select .

  4. The station is added to the bottom of the Favourites list.



    If the battery is disconnected, your Favourites list will be not deleted.

    Close Note

Selecting radio station from Favourites

  1. Select the icon to display the Favourites list.

  2. Select the radio frequency to tune in the radio station.

Deleting from Favourites

  1. Select the icon to display the Favourites list.

  2. Select .

  3. Select .

  4. Select the radio frequency you want to delete.

  5. Select .

Changing Favourites list order

  1. Select the icon to display the Favourites list.

  2. Select .

  3. Select .

  4. Select a radio frequency. The selected radio station can be moved.

  5. Slide the radio station or move it using the commander switch, then select .

Radio Data System (RDS)

Alternative frequency (AF)

AF functions on FM stations. Turn on the AF mode. If the radio reception of the current station weakens, the system switches to an alternative station automatically.

If you wish to continue a regional programme, turn on the Region lock (REG) mode.

AF/REG on or off switching

Select the icon while in FM mode to switch to the FM settings screen. AF/REG on or off switching can be performed as follows:

(AF mode on/off)

Select On/Off on the FM settings screen.

(REG mode on/off)

While the AF mode is on, select On/Off.

Traffic announcement (TA)

Select during FM/AM reception to switch to the TA mode.

If a TA broadcast is received while in the TA mode, the TA broadcast intercedes even while using other functions (FM, CD, USB device, AUX, BT audio, Aha™ radio, or Stitcher™ radio), and “Traffic Announcement” is displayed.

If a TA is received on the Entertainment screen, is displayed on the screen. Select to cancel the received TA and return to TA reception stand-by. If a TA is received on a screen other than the Entertainment screen, the selection screens for , , and are displayed on the screen. If is selected, the selection screen turns off when a TA is received while continuing to receive TAs.

Selection from Station List

List of receivable RDS radio stations is displayed. You can easily select the station you want to listen to from the list. If a radio station name is not available, the frequency is displayed. In addition, radio stations which have been programmed to a Genre code (Programme types like Rock, News, and so on) can also be displayed separately by category.



It may take longer to display the station list depending on the reception conditions.

Close Note

  1. Select the icon to display the radio station list.

  2. Select the radio frequency to tune in the radio station.

(Selecting Genre)

  1. Select the on the station list screen to display the genre list screen.

  2. Select the genre to display the radio station list in the genre.



    Only one Genre can be selected.

    Close Note
Interior FeaturesAudio SystemAudio Set [Type B/Type C (touchscreen)]

Operating the Digital Audio Broadcasting (DAB) Radio (Type C) (Some Models)

What is DAB radio?

DAB radio is a digital broadcasting system for radio.

DAB radio provides a high-quality radio sound source using an auto frequency switching function in boundary areas.

By displaying the radio text, information such as the song name and artist name can be displayed.



This unit is also compatible with DAB radio.

Close Note

Radio ON

  1. Select on the home screen to display the Entertainment screen.

  2. Select , the following icons are displayed at the bottom of the screen.

Icon

Function

Displays the Entertainment menu. Use to switch to a different audio source.

Displays the station list (ensemble and station).

Select to update the station list.

Select to select the ensemble you want to display.

Displays the favourites list. Press and hold to store the currently tuned station to the favourites list.

Refer to Operating the Radio (Type C) (Search).

Searches your desired station from the station list.

Tunes to each station in the station list for 10 seconds.

Select again when your desired station is tuned.



If the station list is not available, it switches to the station list update screen. Perform the station list updating.

Close Note

Switches the TA mode on and off.

Refer to Operating the Radio (Type C) (Search).

Returns to the previous station.

Touch and hold to return to the top station in the previous ensemble.

Goes to the next station.

Touch and hold to go to the top station in the next ensemble.

Displays the DAB radio setting screen.

Displays sound settings to adjust audio quality level.

Refer to Volume/Display/Sound Controls (Search).

Example of use (Update station list and listen to DAB radio)

  1. Select the icon and display the following screen.

  2. Select to update the station list.

  3. Select to select the ensemble you want to display.

  4. Select a desired station to start radio reception.

DAB radio setting

  1. Select the icon while using DAB radio.

  2. Select the desired item and perform the setting.

    The items which can be set are as follows:

Item

Setting

Function

BAND Settings

Band III/L Band/Both

Frequency band can be changed.

DAB-FM Link

On/Off

On: If the reception condition is bad, an FM station which is providing the same broadcast is searched and switched to.

DAB-DAB Link

On/Off

On: If the reception condition is bad, a DAB station which is providing the same broadcast is searched and switched to.

Radio Text

On/Off

On: Radio text is displayed.



  • The radio text may not be displayed depending on the radio station.

  • The radio text cannot be displayed in DAB-FM mode.

  • If there is no DAB radio signal, “Signal Lost” is displayed on the screen. Change the ensemble or radio station, or perform station list updating.

Close Note
Interior FeaturesAudio SystemAudio Set [Type B/Type C (touchscreen)]

Operating the Compact Disc (CD) Player (Some Models)

Type

Playable data

Music/MP3/WMA/AAC CD player

  • Music data (CD-DA)

  • MP3/WMA/AAC file



If a disc has both music data (CD-DA) and MP3/WMA/AAC files, playback of the two or three file types differs depending on how the disc was recorded.

Close Note

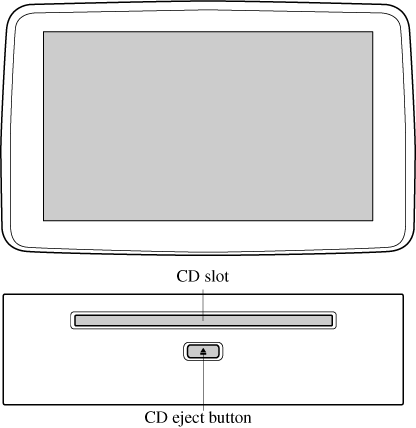

Inserting the CD

Insert the CD into the slot, label-side up. The auto-loading mechanism will set the CD and begin play.



There will be a short lapse before play begins while the player reads the digital signals on the CD.

Close Note

Ejecting the CD

Press the CD eject button () to eject the CD.

Playback

Select the icon on the home screen with a CD inserted and display the Entertainment screen. When is selected, the following icons are indicated in the lower part of the centre display.

Icon

Function

Displays the Entertainment menu. Use to switch to a different audio source.

(Music CD)

Displays the track list of the CD.

Select the track you want to play.

(MP3/WMA/AAC CD)

Displays the top level folder/file list.

Select the folder you want to select.

The files in the selected folder are displayed.

Select the file you want to play.

(MP3/WMA/ACC CDs only)

Displays the file list of the folder currently being played.

Select the song you want to listen to.

(Music CD)

Replays the song currently being played repeatedly.

Select it again to cancel.

(MP3/WMA/AAC CD)

Replays the song currently being played repeatedly.

When selected again, the songs in the folder are played repeatedly.

Select it again to cancel.

(Music CD)

Plays songs on the CD in random order.

Select it again to cancel.

(MP3/WMA/AAC CD)

Plays songs in the folder in random order.

When selected again, the songs on the CD are played in random order.

Select it again to cancel.

(Music CD)

The beginning of each track on a CD is played to aid in searching for a desired track.

When selected again, the operation is cancelled and the song currently being played continues.

(MP3/WMA/AAC CD)

The beginning of each track in a folder is played to aid in searching for a desired track.

When selected again, the operation is cancelled and the song currently being played continues.



If the audio is operated during scan-play, the track being scan-played is played normally. Then, the audio operation is performed.

If selected within a few seconds of a song which has started to play, the previous song is selected.

If more than a few seconds have elapsed after a song has begun to play, the song currently being played is replayed from the beginning.

Long-press to fast reverse. It stops when you remove your hand from the icon or the commander knob.

Plays a CD. When selected again, playback is temporarily stopped.

Advances to the beginning of the next song.

Long-press to fast forward. It stops when you remove your hand from the icon or the commander knob.

Displays sound settings to adjust audio quality level.

Refer to Volume/Display/Sound Controls (Search).

Example of use (When searching for a song from the top level of an MP3/WMA/AAC CD)

  1. Select the icon to display the folder/file list at the top level.



  2. When the folder is selected, folders/file lists in the folder are displayed.

  3. Select the desired song.



  • Select to move to a folder one level higher.

  • The appearance of the repeat and shuffle icons changes depending on the type of operation in which the function is used.

Close Note
Interior FeaturesAudio SystemAudio Set [Type B/Type C (touchscreen)]

Operating the Digital Versatile Disc (DVD) Player (Type B) (Some Models)

Type

Playable data

DVD VIDEO/DVD-VR player

DVD VIDEO/DVD-VR file

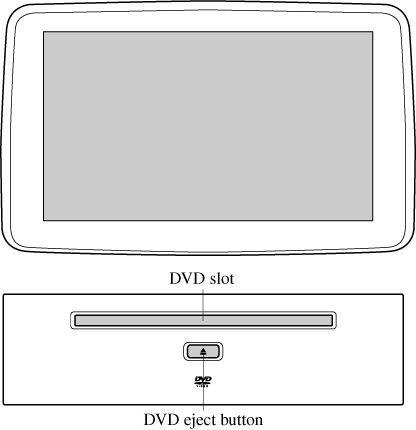

Inserting the DVD

Insert the DVD into the slot, label-side up. The DVD is inserted automatically and the top menu screen of the DVD disc and controller are displayed.



There will be a short lapse before play begins while the player reads the digital signals on the DVD.

Close Note

Ejecting the DVD

Press the DVD eject button () to eject the DVD.

Playback

Select the icon on the home screen with a DVD inserted and display the Entertainment screen. When is selected, the DVD top menu screen and the controller are displayed.

When starting the playback by operating the controller, the following icons are displayed at the bottom of the screen.

Icon

Function

Displays the Entertainment menu. Use to switch to a different audio source.

Returns to the DVD menu screen.

Returns to the beginning of the previous chapter if the icon is selected within a few seconds after the playback of the current chapter has started.

Returns to the beginning of the current chapter if the icon is selected a few seconds after the playback of the current chapter has started.

Long-press during playback to fast reverse.

Long-press during pause to play in reverse in slow motion. It stops when you remove your hand from the icon or the commander knob.

Plays the DVD. Select again to pause the playback.

Advances to the beginning of the next chapter.

Long-press during playback to fast forward.

Long-press during pause to play in slow motion. It stops when you remove your hand from the icon or the commander knob.

Changes camera angle each time the icon is selected (usable DVDs only).

Changes display/non-display of the sub titles (usable DVDs only).

Changes the parental lock setting.

Parental lock level and PIN code setting changes are possible.

Pauses the playback and displays the DVD setting screen.

Select to adjust the sound quality.

Refer to Volume/Display/Sound Controls (Search).

Select to change the aspect ratio (horizontal to vertical ratio of the screen). 16:9 Widescreen, 4:3 Letterbox, and 4:3 Pan-scan are available.

Adjusts the screen.

Displays the video setting screen at the bottom of the screen.



  • For safety reasons, images are not displayed while the vehicle is being driven.

  • Slide the of the controller to move the controller.

  • If the mode is switched to DVD mode once the DVD playback has stopped, the playback restarts without displaying the DVD menu screen.

Close Note

Setting DVD functions

Sound quality and aspect ratio settings can be performed.

Setting sound quality

  1. Select the icon.

  2. Select to adjust the sound quality.

    Refer to Volume/Display/Sound Controls (Search).

Setting aspect ratio

  1. Select the icon.

  2. Select .

  3. Select a desired aspect ratio.

Setting image quality

Brightness, contrast, tint, colour density can be adjusted.

When the icon is selected, the following tabs are displayed at the bottom of the screen.

Tab

Function

Screen brightness can be adjusted using the slider.

Screen contrast can be adjusted using the slider.

Colour tone of the screen can be adjusted using the slider.

Screen colour can be adjusted using the slider.

Screen settings can be reset to initial values.

Select .
Interior FeaturesAudio SystemAudio Set [Type B/Type C (touchscreen)]

How to use Auxiliary jack/USB port

Audio can be heard from the vehicle's speakers by connecting a commercially-available portable audio unit to the auxiliary jack.

Use a commercially-available, non-impedance (3.5) stereo mini plug lead.

In addition, audio can be played from the vehicle audio device by connecting a USB device to the USB port.

Refer to AUX/USB mode (Search).

Interior FeaturesAudio SystemAudio Set [Type B/Type C (touchscreen)]

Settings



Depending on the grade and specification, the screen display may differ.

Close Note

Select the icon on the home screen to display the Settings screen.

Switch the tab and select the setting item you want to change.

You can customize settings in the setup display as follows:

Tab

Item

Function

Display

Refer to Volume/Display/Sound Controls (Search).

Safety

Blind Spot Monitoring Volume

Other

Refer to Personalisation Features (Search).

Sound

Refer to Volume/Display/Sound Controls (Search).

Clock

Adjust Time

Displays the currently set time is displayed.

Press to advance the hour/minute, and select to move the hour/minute back.

AM/PM can only be selected with the 12-hour clock display.

GPS Sync

Synchronizes with GPS when turned on.

When turned off, the time can be changed from “Adjust Time”.

Time Format

Changes the display between 12 and 24-hour clock time.

Time Zone Select

When it's not synchronized with GPS, select the region you want to specify.

Daylight Savings Time

Turns the daylight saving time setting on/off.

When ON, the time advances 1 hour. When OFF, it returns to normal time.

Vehicle

Rain Sensing Wiper

Door Lock

Other

Refer to Personalisation Features (Search).

Devices

Bluetooth®

Refer to Bluetooth® Preparation (Search).

Network Management

Wi-Fi™ is used to obtain Navi POI/Real Time Traffic function (Such as gas prices, weather, nearest restaurant)

System

Tool Tips

Turns button explanations ON/OFF.

Language

Changes the language.

Temperature

Changes the setting between Fahrenheit and Celsius.

Distance

Changes the setting between miles and kilometres.

Music Database Update

Used to update Gracenote®. Gracenote is used with USB Audio, and provides:

  1. Supplementary music information (Such as song name, artist name)

  2. Voice recognition assistance for Play Artist and Play Album

Gracenote can be downloaded from the Mazda Handsfree Website.

Refer to Gracenote Database (Type B/Type C) (Search).

Factory Reset

Memory and settings are initialized to the factory settings.

The initialization launches by selecting the button.

About

Agreements and Disclaimers

Verify the disclaimer and agree.

Version Information

Can verify the current audio unit OS version and Gracenote Database version.
Interior FeaturesAudio SystemAudio Set [Type B/Type C (touchscreen)]

Applications



Depending on the grade and specification, the screen display may differ.

Close Note

Select the icon on the home screen to display the Applications screen. The following information can be verified.

Top screen

Item

Function

Fuel Economy Monitor

Fuel Consumption

Control Status

Effectiveness Display

Settings

Refer to Fuel Economy Monitor (Search).

Vehicle Status Monitor

Maintenance

Scheduled Maintenance

Tyre Rotation

Oil Change

Refer to Maintenance Monitor (Search).

Warning Guidance

Warnings currently active can be verified.

Refer to If a Warning Light Turns On or Flashes (Search).
