Fuel Economy Monitor

Fuel Economy Monitor (Some Models)

For vehicles with type B audio, the Control Status, Fuel Consumption, and Effectiveness*1 are switched and displayed by operating each icon in the display.

In addition, after completing a trip, the total energy efficiency to date is displayed in the ending display when the ending display is turned on.

  1. Select the icon on the home screen to display the Applications screen.

  2. Select the “Fuel Economy Monitor”.

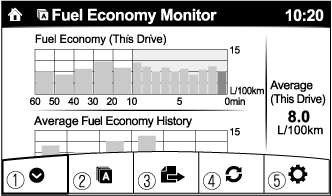

  3. Select the icon at the bottom left of the screen to display the menu in the lower part of the screen.

  4. Select the icon in the menu and perform the operation. Each icon operates as follows:

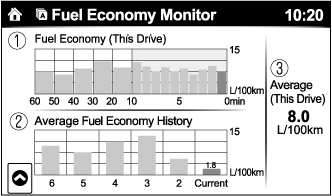

    Indication on display

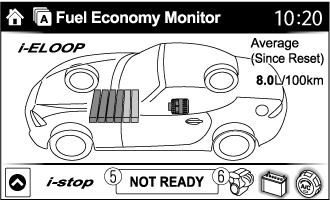

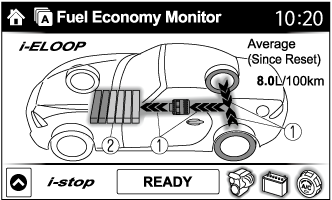

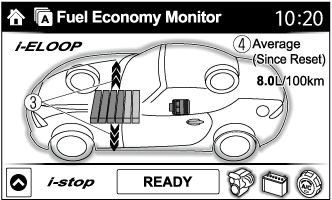

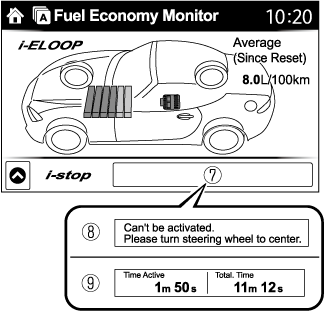

    Control status

    Hides the menu display.

    Displays the Applications screen.

    Switches the Fuel Economy Monitor in the order of Control Status, Fuel Consumption, and Effectiveness*1.

    Resets the fuel economy data.

    Displays the following setting screen.

    • Ending display on/off switching

    • (Without Multi-information Display)

      On/off switching for function which synchronizes (links) reset of fuel economy data with trip meter (TRIP A)

    1. With i-stop function.




The fuel economy monitor screen after the ignition is switched from ON to OFF is changed to the original fuel economy monitor screen when the ignition is switched ON the next time.

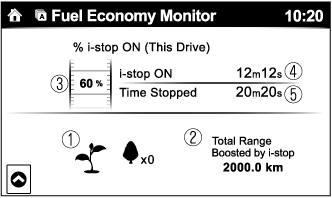

Effectiveness Display (With i-stop Function)

The actual performance of the energy efficiency is displayed.

Indication on display

Control status

The leaf graphic grows according to the amount of CO2 emissions reduced by the system effects. The cumulative total amount of leaf growth is indicated in terms of the number of tree graphics.

Displays the total driving distance which could be extended by the operation of the i-stop function.

Displays the percentage of time that the vehicle was stopped by the i-stop function operation out of the total amount of time that the vehicle was stopped.

Displays the amount of time that the i-stop function has operated.

Displays the total amount of time that the vehicle was stopped.

Fuel Economy Data Reset and Trip Meter (TRIP A) Synchronization (Linking) (Without Multi-information Display)

Because the average fuel economy indication on the instrument cluster display is linked with the “Average (Since Reset)” indication on the centre display, when one is reset the other is also reset.

In addition, switching between reset and no reset of the average fuel economy indication on the instrument cluster display and the “Average (Since Reset)” indication on the centre display when resetting the trip meter (TRIP A) is possible.

Reset operation item

Synchronized (linked) and reset information

Trip meter (TRIP A)

Average fuel economy on instrument cluster display

“Average (Since Reset)” indication on the centre display

Trip meter (TRIP A)

X

X/—*1

X/—*1

Average fuel economy on instrument cluster display

X

X

“Average (Since Reset)” indication on the centre display

X

X

X: Reset

—: Not reset

  1. Can be personalised.

    Refer to Personalisation Features (Search).
