Owner Maintenance
Owner Maintenance Precautions
Routine Service
We highly recommend that these items be inspected daily, or at least every week.
-
Engine Oil Level (Search)
-
Engine Coolant Level (Search)
-
Brake Fluid Level (Search)
-
Washer Fluid Level (Search)
-
Battery Maintenance (Search)
-
Tyre Inflation Pressure (Search)
Improper or incomplete service may result in problems. This section gives instructions only for items that are easy to perform.
As explained in the Introduction (Search), several procedures can be done only by a qualified service technician with special tools.
Improper do-it yourself maintenance during the warranty period may affect warranty coverage. For details, read the separate Mazda Warranty statement provided with the vehicle. If you are unsure about any servicing or maintenance procedure, have it done by an expert repairer, we recommend an Authorised Mazda Repairer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorised Mazda Repairer.
Do not perform maintenance work if you lack sufficient knowledge and experience or the proper tools and equipment to do the work. Have maintenance work done by a qualified technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You can be seriously injured while performing some maintenance procedures.
If you must run the engine while working under the bonnet, make certain that you remove all jewellery (especially rings, bracelets, watches, and necklaces) and all neckties, scarves, and similar loose clothing before getting near the engine or cooling fan which may turn on unexpectedly:
Working under the bonnet with the engine running is dangerous. It becomes even more dangerous when you wear jewellery or loose clothing.
Either can become entangled in moving parts and result in injury.
Pull over to a safe location, then switch the ignition off and make sure the fan is
not running before attempting to work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could continue running indefinitely even if the engine has stopped and the engine compartment temperature is high. You could be hit by the fan and seriously injured.
Do not leave items in the engine compartment:
After you have finished checking or doing servicing in the engine compartment, do not forget and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a fire leading to an unexpected accident.
Bonnet
Always check that the bonnet is closed and securely locked:
A bonnet that is not closed and securely locked is dangerous as it could fly open while the vehicle is moving and block the driver's vision which could result in a serious accident.
Opening the Bonnet
-
With the vehicle parked, pull the release handle to unlock the bonnet.
-
Insert your hand into the bonnet opening, slide the latch lever to the right, and lift up the bonnet.
The lever is located a little to the left of centre when facing the vehicle.
Close NoteView Note -
Grasp the support rod in the padded area and secure it in the support rod hole indicated by the arrow to hold the bonnet open.
Closing the Bonnet
-
Check under the bonnet area to make certain all filler caps are in place and all loose items (e.g. tools, oil containers, etc.) have been removed.
-
Lift the bonnet, grasp the padded area on the support rod, and secure the support rod in the clip. Verify that the support rod is secured in the clip before closing the bonnet.
-
Lower the bonnet slowly to a height of about 20 cm (7.9 in) above its closed position and then let it drop.
When closing the bonnet, do not push it excessively such as by applying your weight. Otherwise, the bonnet could be deformed.
Engine Oil
Changing the engine oil should be done by an expert repairer, we recommend an Authorised Mazda Repairer.
Recommended Oil
In order to keep the maintenance interval (Search) and to protect the engine from damage caused by poor lubrication, it is vitally important to make use of engine oil with the correct specification. Do not use oils which do not meet the below specification or requirements. Use of unsuitable oil may lead to engine damage which is not covered by the Mazda Warranty.
Engine oil viscosity, or thickness, has an effect on fuel economy and cold-weather operation (starting and oil flow).
Low-viscosity engine oils can provide improved fuel economy and cold-weather performance.
(SKYACTIV-G 2.0, SKYACTIV-G 2.5)
Mazda recommends using Mazda Premium Motor Oil (for Australia) or Mazda Motor Oil (for New Zealand) which has been specifically designed and tested to meet the stringent Mazda Engineering Standards (MES) for your Mazda. To ensure engine longevity is not compromised particularly under the harsh climatic conditions existing in Australia and New Zealand, we only recommend using genuine Mazda engine oil which is available throughout the Mazda Dealer network.
If Mazda Premium Motor Oil (for Australia) or Mazda Motor Oil (for New Zealand) is not selected for use, always use an engine oil meeting the specifications:
Use ILSAC GF-II/GF-III/GF-IV/GF-V, or API service SG or higher.
(SKYACTIV-D 2.2)
Mazda recommends using Mazda Diesel Engine Oil which has been specifically designed and tested to meet the stringent Mazda Engineering Standards (MES) for your Mazda. To ensure engine longevity is not compromised particularly under the harsh climatic conditions existing in Australia and New Zealand, we only recommend using genuine Mazda Diesel Engine Oil which is available throughout the Mazda Dealer network.
If Mazda Diesel Engine Oil is not selected for use, always use an engine oil meeting the specifications:
Use ACEA C1 or JASO DL-1.
When choosing an oil, consider the temperature range your vehicle will operate in before the next oil change.
Then select the recommended viscosity from the chart.
-
Using oils of viscosity besides those recommended for specific temperature ranges could result in engine damage.
-
(SKYACTIV-D 2.2)
SKYACTIV-D 2.2 uses specified oil. Please confirm the specification in owner's manual. If engine oil other than the specified oil is used, the Diesel Particulate Filter effective period of use will be shortened or the Diesel Particulate Filter may be damaged.
(SKYACTIV-G 2.0, SKYACTIV-G 2.5)
-
It is normal for all engines to consume engine oil under normal driving conditions.
Engine oil consumption may be as high as 0.8 L/1,000 km (1 L/800 miles). This may be as a result of evaporation, internal ventilation or burning of the lubricating oil in the working engine. Oil consumption may be higher when the engine is new due to the running-in process. Oil consumption is also dependant on engine speed and engine load. Under extreme driving conditions, oil consumption may be higher.
(SKYACTIV-D 2.2)
-
Whenever the engine oil is replaced, the vehicles engine control unit needs to be reset as soon as possible. Otherwise the wrench indicator light or engine oil warning light may turn on. To reset the engine control unit, consult an expert repairer, we recommend an Authorised Mazda Repairer or refer to the vehicle engine control unit reset procedure (Search).
-
Inspect the engine oil level periodically. When inspecting the engine oil, if the engine oil level is exceeds the “X” mark on the dipstick, replace the engine oil. We recommend an Authorised Mazda Repairer. When replacing the engine oil, inspect the oil level using the oil dipstick and refill so that the engine oil level is within the range between MIN and MAX as shown in the figure.
Vehicle Engine Control Unit Reset Procedure (SKYACTIV-D 2.2)
After replacing the engine oil, have a repair shop such as an Authorised Mazda Repairer perform the initialization (engine oil data resetting) of the recorded value. If the value recorded by the computer is not initialized, the wrench indicator light may not turn off or it may turn on earlier than normal.
The initialization (engine oil data resetting) of the recorded value can be performed using the following procedure:
-
Switch the ignition OFF.
-
Switch the ignition ON with the selector pressed, and press and hold the selector for about 5 seconds until the master warning light
flashes.
-
After the master warning light
flashes for several seconds, the initialization is completed.
Inspecting Engine Oil Level
-
Be sure the vehicle is on a level surface.
-
Warm up the engine to normal operating temperature.
-
Turn it off and wait at least 5 minutes for the oil to return to the sump.
-
Pull out the dipstick, wipe it clean, and reinsert it fully.
SKYACTIV-G 2.0 and SKYACTIV-G 2.5
SKYACTIV-D 2.2
(SKYACTIV-D 2.2)
When inspecting the engine oil level, pull out the dipstick straight without twisting. In addition, when inserting the dipstick, always insert it without twisting so that the “X” mark faces the front of the vehicle.
Close NoteView Note -
Pull it out again and examine the level.
The level is normal if it is between the MIN and MAX marks.
If it is near or below MIN, add enough oil to bring the level to MAX.
Do not overfill the engine oil. This may cause engine damage.
Close CautionView Caution -
Make sure the O-ring on the dipstick is positioned properly before reinserting the dipstick.
-
Reinsert the dipstick fully.
Engine Coolant
Inspecting Coolant Level
Do not use a match or live flame in the engine compartment. DO NOT ADD COOLANT WHEN THE ENGINE IS HOT:
A hot engine is dangerous. If the engine has been running, parts of the engine compartment can become very hot. You could be burned. Carefully inspect the engine coolant in the coolant reservoir, but do not open it.
Pull over to a safe location, then switch the ignition off and make sure the fan is
not running before attempting to work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could continue running indefinitely even if the engine has stopped and the engine compartment temperature is high. You could be hit by the fan and seriously injured.
Do not remove either cooling system cap when the engine and radiator are hot:
When the engine and radiator are hot, scalding coolant and steam may shoot out under pressure and cause serious injury.
Changing the coolant should be done by an expert repairer, we recommend an Authorised Mazda Repairer.
Inspect the antifreeze protection and coolant level in the coolant reservoir at least once a year―at the beginning of the winter season―and before travelling where temperatures may drop below freezing.
Inspect the condition and connections of all cooling system and heater hoses.
Replace any that are swollen or deteriorated.
The coolant should be at full in the radiator and between the F and L marks on the coolant reservoir when the engine is cool.
SKYACTIV-G 2.0 and SKYACTIV-G 2.5
SKYACTIV-D 2.2
If it is at or near L, add enough coolant to the coolant reservoir to provide freezing and corrosion protection and to bring the level to F.
Securely tighten the coolant reservoir tank cap after adding coolant.
-
Radiator coolant will damage paint.
Rinse it off quickly if spilled.
-
Use only soft (demineralised) water in the coolant mixture. Water that contains minerals will cut down on the coolant's effectiveness.
-
Do not add only water. Always add a proper coolant mixture.
-
The engine has aluminium parts and must be protected by an ethylene-glycol-based coolant to prevent corrosion and freezing.
-
DO NOT USE coolants Containing Alcohol, methanol, Borate or Silicate.
These coolants could damage the cooling system.
-
DO NOT MIX alcohol or methanol with the coolant. This could damage the cooling system.
-
Do not use a solution that contains more than 60% antifreeze.
This would reduce effectiveness.
-
If the “FL22” mark is shown on or near the cooling system cap, use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may cause serious damage to the engine and cooling system.
If the coolant reservoir is empty or new coolant is required frequently, consult an expert repairer, we recommend an Authorised Mazda Repairer.
Brake Fluid
Inspecting Brake Fluid Level
If the brake fluid level is low, have the brakes inspected:
A low brake fluid level is dangerous.
A low level could indicate brake lining wear or a brake system leak which could cause the brakes to fail and lead to an accident.
Inspect the fluid level in the reservoir regularly. It should be kept between the MAX and MIN lines.
The level normally drops with accumulated distance, a condition associated with wear of brake linings. If it is excessively low, have the brake system inspected by an expert repairer, we recommend an Authorised Mazda Repairer.
Window and Headlight Washer Fluid
Inspecting Washer Fluid Level
Use only windscreen washer fluid or plain water in the reservoir:
Using radiator antifreeze as washer fluid is dangerous. If sprayed on the windscreen, it will dirty the windscreen, affect your visibility, and could result in an accident.
Inspect fluid level in the washer fluid reservoir; add fluid if necessary.
Use plain water if washer fluid is unavailable.
But use only washer fluid in cold weather to prevent it from freezing.
Front and rear washer fluid is supplied from the same reservoir.
Body Lubrication
All moving points of the body, such as door and bonnet hinges and locks, should be lubricated each time the engine oil is changed. Use a nonfreezing lubricant on locks during cold weather.
Make sure the bonnet's secondary latch keeps the bonnet from opening when the primary latch is released.
Wiper Blades
-
Hot waxes applied by automatic car washers have been known to affect the wiper's ability to clean windows.
-
To prevent damage to the wiper blades, do not use petrol, paraffin, paint thinner, or other solvents on or near them.
-
When the wiper lever is in the AUTO position and the ignition is switched ON, the wipers may move automatically in the following cases:
-
If the windscreen above the rain sensor is touched.
-
If the windscreen above the rain sensor is wiped with a cloth.
-
If the windscreen is struck with a hand or other object.
-
If the rain sensor is struck with a hand or other object from inside the vehicle.
Be careful not to pinch hands or fingers as it may cause injury, or damage the wipers. When washing or servicing the vehicle, make sure the wiper lever is in the OFF position.
-
Contamination of either the windscreen or the blades with foreign matter can reduce wiper effectiveness. Common sources are insects, tree sap, and hot wax treatments used by some commercial car washes.
If the blades are not wiping properly, clean the window and blades with a good cleaner or mild detergent; then rinse thoroughly with clean water. Repeat if necessary.
Replacing Windscreen Wiper Blades
When the wipers no longer clean well, the blades are probably worn or cracked.
Replace them.
To prevent damage to the wiper arms and other components, do not try to sweep the wiper arm by hand.
When raising both windscreen wiper arms, raise the driver's side wiper arm first. When lowering the wiper arms, slowly lower the wiper arm from the passenger's side first while supporting it with your hand. Forcefully lowering the wiper arms could damage the wiper arm and blade, and may scratch or crack the windscreen.
-
Raise the wiper arm.
-
Open the clip and slide the blade assembly in the direction of the arrow.
-
Tilt the blade assembly and remove it from the arm.
To prevent damage to the windscreen let the wiper arm down easily, do not let it slap down on the windscreen.
Close CautionView Caution -
Pull down the blade rubber and slide it out of blade holder.
-
Remove the metal stiffeners from each blade rubber and install them in the new blade.
-
Do not bend or discard the stiffeners. You need to use them again.
-
If the metal stiffeners are switched, the blade's wiping efficiency could be reduced.
So do not use the driver's side metal stiffeners on the passenger's side, or vice versa.
-
Be sure to reinstall the metal stiffeners in the new blade rubber so that the curve is the same as it was in the old blade rubber.
Close CautionView Caution -
-
Carefully insert the new blade rubber. Then install the blade assembly in the reverse order of removal.
Replacing Rear Window Wiper Blade (Wagon)
When the wiper no longer cleans well, the blade is probably worn or cracked.
Replace it.
To prevent damage to the wiper arm and other components, do not move the wiper by hand.
-
Raise the wiper arm and rotate the wiper blade to the right until it unlocks, then remove the blade.
To prevent damage to the rear window, do not let the wiper arm fall on it.
Close CautionView Caution -
Pull down the blade rubber and slide it out of the blade holder.
-
Remove the metal stiffeners from the blade rubber and install them in the new blade.
Do not bend or discard the stiffeners. You need to use them again.
Close CautionView Caution -
Carefully insert the new blade rubber.
Then install the blade assembly in the reverse order of removal.
Battery
Read the following precautions carefully before using the battery or inspecting to
ensure safe and correct handling:
Always wear eye protection when working near the battery:
Working without eye protection is dangerous. Battery fluid contains SULPHURIC ACID which could cause blindness if splashed into your eyes. Also, hydrogen gas produced during normal battery operation, could ignite and cause the battery to explode.
Wear eye protection and protective gloves to prevent contact with battery fluid:
Spilled battery fluid is dangerous.
Battery fluid contains SULPHURIC ACID which could cause serious injuries if it gets in eyes, or on the skin or clothing. If this happens, immediately flush your eyes with water for 15 minutes or wash your skin thoroughly and get medical attention.
Always keep batteries out of the reach of children:
Allowing children to play near batteries is dangerous. Battery fluid could cause serious injuries if it gets in the eyes or on the skin.
Keep flames and sparks away from open battery cells and do not allow metal tools to
contact the positive (
) or negative (
) terminal of the battery when working near a battery. Do not allow the positive () terminal to contact the vehicle body:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during normal battery operation, could ignite and cause the battery to explode. An exploding battery can cause serious burns and injuries. Keep all flames including cigarettes and sparks away from open battery cells.
Keep all flames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during normal battery operation, could ignite and cause the battery to explode. An exploding battery can cause serious burns and injuries.
Before performing battery maintenance, remove the battery cover.
Battery Maintenance
To get the best service from a battery:
-
Keep it securely mounted.
-
Keep the top clean and dry.
-
Keep terminals and connections clean, tight, and coated with petroleum jelly or terminal grease.
-
Rinse off spilled electrolyte immediately with a solution of water and baking soda.
-
If the vehicle will not be used for an extended time, disconnect the battery leads and charge the battery every six weeks.
Inspecting Electrolyte Level
A low level of electrolyte fluid will cause the battery to discharge quickly.
Inspect the electrolyte level at least once a week. If it is low, remove the caps and add enough distilled water to bring the level between the upper and lower level (illustration).
Do not overfill.
Examine the specific gravity of the electrolyte with a hydrometer, especially during cold weather. If it is low, recharge the battery.
Battery Recharging
-
Before performing maintenance or recharging the battery, turn off all accessories and stop the engine.
-
To disconnect the battery, remove the negative lead first. Install it last when connecting the battery.
-
Be sure to remove the caps before recharging the battery.
-
Do not quick-charge the battery.
-
If the battery quickly discharges because, for example, the lights were left on too long with the engine off, slow-charge it as required by battery size and charger capacity.
-
If the battery gradually discharges because of high electric load while the vehicle is being used, recharge it as required by battery size and charger capacity.
Key Battery Replacement
If the buttons on the transmitter are inoperable and the operation indicator light does not flash, the battery may be dead.
Replace with a new battery before the transmitter becomes unusable.
-
Make sure the battery is installed correctly. Battery leakage could occur if it is not installed correctly.
-
When replacing the battery, be careful not to touch any of the internal circuitry and electrical terminals, bend the electrical terminals, or get dirt in the transmitter as the transmitter could be damaged.
-
There is the danger of explosion if the battery is not correctly replaced.
-
Dispose of used batteries according to the following instructions.
-
Insulate the plus and minus terminals of the battery using cellophane or equivalent tape.
-
Never disassemble.
-
Never throw the battery into fire or water.
-
Never deform or crush.
-
-
Replace only with the same type battery (CR2025 or equivalent).
The following conditions indicate that the battery power is low:
-
The KEY indicator light (green) flashes in the instrument cluster for about 30 seconds after the engine is turned off (for vehicles with a type A instrument cluster (Search), messages are displayed in the instrument cluster).
-
The system does not operate and the operation indicator light on the transmitter does not flash when the buttons are pressed.
-
The system's operational range is reduced.
Replacing the battery at an Authorised Mazda Repairer is recommended to prevent damage to the key. If replacing the battery by yourself, follow the instruction below.
Replacing the key battery
-
Press the knob and pull out the auxiliary key.
-

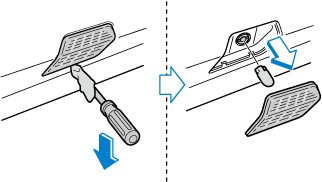

Twist a tape-wrapped flathead screwdriver in the direction of the arrow and open the cover slightly.
-
Insert the tape-wrapped flathead screwdriver into the gap and slide it in the direction of the arrow.
-
Twist the flathead screwdriver in the direction of the arrow and remove the cover.
-
Remove the battery cap, then remove the battery.
-
Insert a new battery with the positive pole facing up, and then cover the battery with the battery cap.
-
Close the cover.
-
Reinsert the auxiliary key.
-
Be careful not to allow the rubber ring shown in the figure to be scratched or damaged.
-
If the rubber ring detaches, reattach it before inserting a new battery.
Tyres
For reasons of proper performance, safety, and better fuel economy, always maintain recommended tyre inflation pressures and stay within the recommended load limits and weight distribution.
Using Different Tyre Types:
Driving your vehicle with different types of tyres is dangerous. It could cause poor handling and poor braking; leading to loss of control.
Except for the limited use of the temporary spare tyre, use only the same type tyres (radial, bias-belted, bias-type) on all four wheels.
Using Wrong-Sized Tyres:
Using any other tyre size than what is specified for the vehicle (Search) is dangerous. It could seriously affect ride, handling, ground clearance, tyre clearance, and speedometer calibration. This could cause you to have an accident. Use only tyres that are the correct size specified for the vehicle.
Tyre Inflation Pressure
Always inflate the tyres to the correct pressure:
Overinflation or underinflation of tyres is dangerous. Adverse handling or unexpected tyre failure could result in a serious accident.
Refer to Tyres (Search).
Use only a Mazda-genuine tyre valve cap:
Use of a non-genuine part is dangerous as the correct tyre air pressure cannot be maintained if the tyre valve becomes damaged. If the vehicle is driven under this condition, the tyre air pressure will decrease which could result in a serious accident. Do not use any part for the tyre valve cap that is not a Mazda-genuine part.
Inspect all tyre pressures monthly (including the spare) when the tyres are cold. Maintain recommended pressures for the best ride, handling, and minimum tyre wear.
Refer to the specification charts (Search).
-
Always check tyre pressure when tyres are cold.
-
Warm tyres normally exceed recommended pressures. Do not release air from warm tyres to adjust the pressure.
-
Underinflation can cause reduced fuel economy, uneven and accelerated tyre wear, and poor sealing of the tyre bead, which will deform the wheel and cause separation of tyre from rim.
-
Overinflation can produce a harsh ride, uneven and accelerated tyre wear, and a greater possibility of damage from road hazards.
Keep your tyre pressure at the correct levels. If one frequently needs inflating, have it inspected.
Tyre Rotation
Rotate tyres periodically:
Irregular tyre wear is dangerous. To equalize tread wear for maintaining good performance in handling and braking, rotate the tyres every 10,000 km (6,250 miles), or sooner if irregular wear develops.
During rotation, inspect them for correct balance.
Also, inspect them for uneven wear and damage. Abnormal wear is usually caused by one or a combination of the following:
-
Incorrect tyre pressure
-
Improper wheel alignment
-
Out-of-balance wheel
-
Severe braking
After rotation, inflate all tyre pressures to specification (Search) and inspect the wheel nuts for tightness.
Rotate unidirectional tyres and radial tyres that have an asymmetrical tread pattern or studs only from front to rear, not from side to side. Tyre performance will be reduced if rotated from side to side.
Replacing a Tyre
Always use tyres that are in good condition:
Driving with worn tyres is dangerous. Reduced braking, steering, and traction could result in an accident.
Replace all four tyres at the same time:
Replacing just one tyre is dangerous. It could cause poor handling and poor braking resulting in loss of vehicle control. Mazda strongly recommends that you replace all four tyres at the same time.
If a tyre wears evenly, a wear indicator will appear as a solid band across the tread.
Replace the tyre when this happens.
You should replace the tyre before the band crosses the entire tread.
Temporary Spare Tyre
Inspect the temporary spare tyre at least monthly to make sure it is properly inflated and stored.
The temporary spare tyre condition gradually deteriorates even if it has not been used.
The temporary spare tyre is easier to handle because of its construction which is lighter and smaller than a conventional tyre. This tyre should be used only for an emergency and only for a short distance.
Use the temporary spare tyre only until the conventional tyre is repaired, which should be as soon as possible.
Refer to Tyre (Search).
-
Do not use your temporary spare tyre rim with a snow tyre or a conventional tyre. Neither will properly fit and could damage both tyre and rim.
-
The temporary spare tyre has a tread life of less than 5,000 km (3,000 miles). The tread life may be shorter depending on driving conditions.
-
The temporary spare tyre is for limited use, however, if the tread wear solid-band indicator appears, replace the tyre with the same type of temporary spare (Search).
Replacing a Wheel
Always use wheels of the correct size on your vehicle:
Using a wrong-sized wheel is dangerous. Braking and handling could be affected, leading to loss of control and an accident.
A wrong-sized wheel may adversely affect:
-
Tyre fit
-
Wheel and bearing life
-
Ground clearance
-
Snow-chain clearance
-
Speedometer calibration
-
Headlight aim
-
Bumper height
-
When replacing a wheel, make sure the new one is the same as the original factory wheel in diameter, rim width, and offset (inset/outset).
-
For details, contact an expert repairer, we recommend an Authorised Mazda Repairer.
Proper tyre balancing provides the best riding comfort and helps reduce tread wear. Out-of-balance tyres can cause vibration and uneven wear, such as cupping and flat spots.
Light Bulbs
Headlights (Low beam)
Headlights (High beam)
Running lights/Position lights
Fog lights (Some Models)
Front direction indicator lights
Position lights
Side direction indicator lights
Brake lights
Tail lights
Brake lights/Tail lights
Rear direction indicator lights
Tail lights (Boot lid side/Liftgate side)
Reverse light
High-mount brake light
Number plate lights
Overhead lights/Front map lights
Vanity mirror lights (Some Models)
Courtesy lights
Rear map lights
Boot light (Saloon)
Luggage compartment light (Wagon)
Never touch the glass portion of a halogen bulb with your bare hands and always wear eye protection when handling or working around the bulbs:
When a halogen bulb breaks, it is dangerous. These bulbs contain pressurised gas. If one is broken, it will explode and serious injuries could be caused by the flying glass.
If the glass portion is touched with bare hands, body oil could cause the bulb to overheat and explode when lit.
Always keep halogen bulbs out of the reach of children:
Playing with a halogen bulb is dangerous. Serious injuries could be caused by dropping a halogen bulb or breaking it some other way.
When removing the lens or lamp unit using a flathead screwdriver, make sure that the flathead screwdriver does not contact the interior terminal. If the flathead screwdriver contacts the terminal, a short circuit may occur.
-
To replace the bulb, contact an expert repairer, we recommend an Authorised Mazda Repairer.
-
If the halogen bulb is accidentally touched, it should be cleaned with rubbing alcohol before being used.
-
Use the protective cover and carton for the replacement bulb to dispose of the old bulb promptly and out of the reach of children.
Replacing Exterior Light Bulbs
Headlights (With LED headlights)
Low/High beam bulbs
The LED bulb cannot be replaced as a single unit because it is an integrated unit.
The LED bulb has to be replaced with the unit. We recommend an Authorised Mazda Repairer when the replacement is necessary.
Headlights (With halogen headlights)
Low-beam bulbs
-
Make sure the ignition is switched off, and the headlight switch is off.
-
If you are changing the right bulb, start the engine, turn the steering wheel all the way to the left, and turn off engine. If you are changing the left bulb, turn the steering wheel to the right.
-

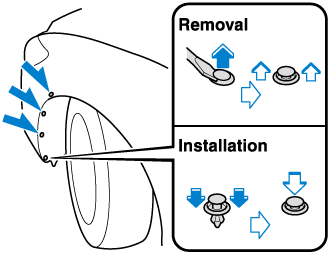

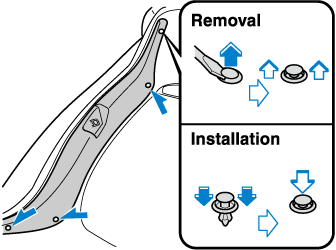

Pull the centre of each plastic retainer and remove the retainers.
-
Turn the screw anticlockwise and remove it, and then partially peel back the mudguard.
-

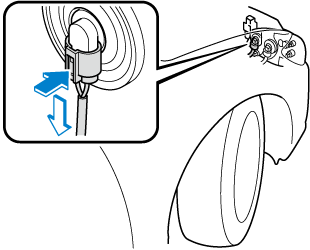

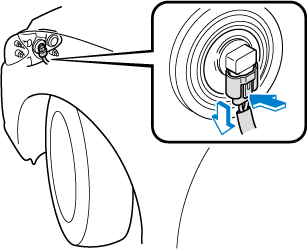

Disconnect the connector from the unit by pressing the tab on the connector with your finger and pulling the connector downward.
-

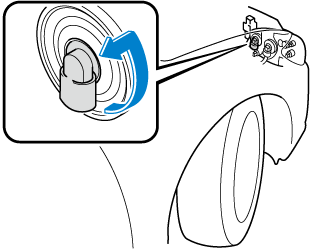

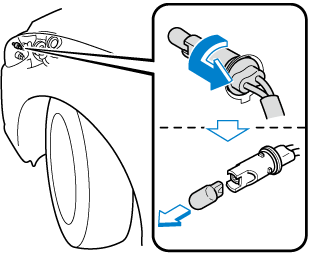

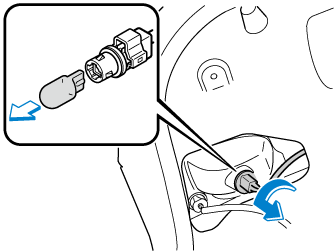

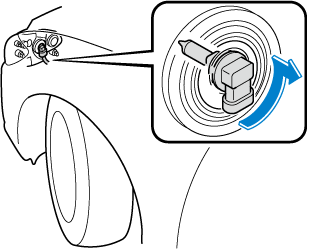

Turn the socket and bulb assembly to remove it. Carefully remove the bulb from its socket in the reflector by gently pulling it straight backward out of the socket.
-
Install the new bulb in the reverse order of the removal procedure.
High-beam bulbs
(Left side)
-
Make sure the ignition is switched off, and the headlight switch is off.
-
Lift the bonnet.
-

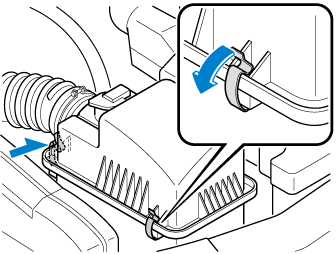

Remove the clip.
-

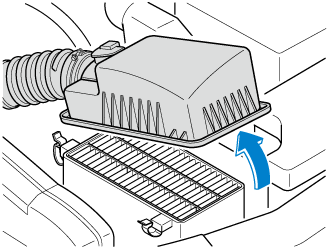

Move the air cleaner cover and create a space large enough to work in.
-
Disconnect the connector from the unit by pressing the tab on the connector with your finger and pulling the connector downward.
-
Turn the socket and bulb assembly to remove it. Carefully remove the bulb from its socket in the reflector by gently pulling it straight backward out of the socket.
-
Install the new bulb in the reverse order of the removal procedure.
(Right side)
-
Make sure the ignition is switched off, and the headlight switch is off.
-
Lift the bonnet.
-

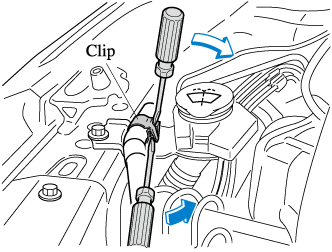

Disconnect the clip.
-

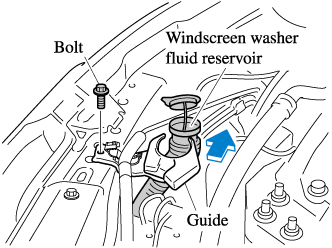

Remove the windscreen washer fluid reservoir and bolts.
-

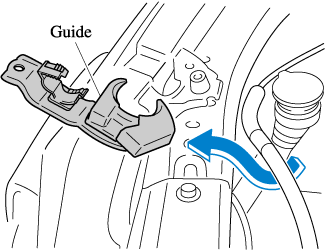

Remove the guide.
-
Disconnect the connector from the unit by pressing the tab on the connector with your finger and pulling the connector downward.
-
Turn the socket and bulb assembly to remove it. Carefully remove the bulb from its socket in the reflector by gently pulling it straight backward out of the socket.
-
Install the new bulb in the reverse order of the removal procedure.
Running lights/Position lights (With LED headlights)
The LED bulb cannot be replaced as a single unit because it is an integrated unit.
The LED bulb has to be replaced with the unit. We recommend an Authorised Mazda Repairer when the replacement is necessary.
Front direction indicator lights, Position lights (With halogen headlights)
-
Make sure the ignition is switched off, and the headlight switch is off.
-
If you are changing the right bulb, start the engine, turn the steering wheel all the way to the left, and turn off engine. If you are changing the left bulb, turn the steering wheel to the right.
-
Pull the centre of each plastic retainer and remove the retainers.
-
Turn the screw anticlockwise and remove it, and then partially peel back the mudguard.
-

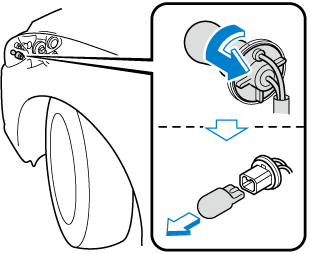

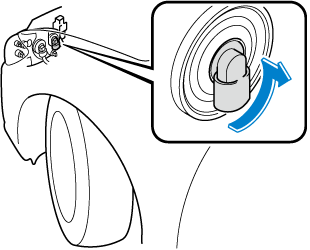

Turn the socket and bulb assembly anticlockwise and remove it.
-
Disconnect the bulb from the socket.
Front direction indicator lights
Position lights (With halogen headlights)
-
Install the new bulb in the reverse order of the removal procedure.
Fog lights (With LED headlights)
The LED bulb cannot be replaced as a single unit because it is an integrated unit.
The LED bulb has to be replaced with the unit. We recommend an Authorised Mazda Repairer when the replacement is necessary.
Fog lights (With halogen headlights) (Some Models)
-
Make sure the ignition is switched off, and the headlight switch is off.
-
If you are changing the right bulb, start the engine, turn the steering wheel all the way to the left, and turn off engine. If you are changing the left bulb, turn the steering wheel to the right.
-
Pull the centre of each plastic retainer and remove the retainers.
-

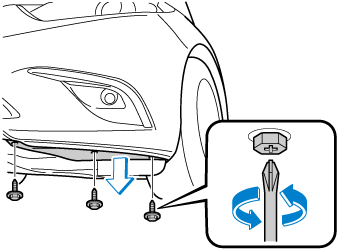

Turn the screw anticlockwise and remove it, and then partially peel back the mudguard.
-
Disconnect the connector from the unit by pressing the tab on the connector with your finger and pulling the connector downward.
-

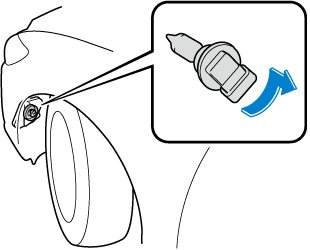

Turn the socket and bulb assembly to remove it. Carefully remove the bulb from its socket in the reflector by gently pulling it straight back out of the socket.
-
Install the new bulb in the reverse order of the removal procedure.
Brake lights, Tail lights, High-mount brake light, Side-direction indicator lights
The LED bulb cannot be replaced as a single unit because it is an integrated unit.
The LED bulb has to be replaced with the unit. We recommend an Authorised Mazda Repairer when the replacement is necessary.
Rear direction indicator lights
Saloon
-
Make sure the ignition is switched off, and the direction indicator switch is off.
-

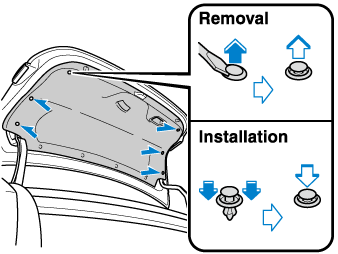

Lift the boot mat.
-
(Left side)

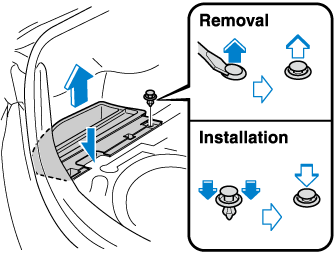

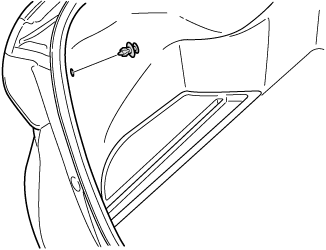

Pull the centre of each plastic retainer and remove the retainers and the pocket.
(Right side)
Remove the pocket.
(Left side)
(Right side)
-
Pull the centre of each plastic retainer and remove the retainers and the boot end trim.
-
Pull the centre of each plastic retainer and remove the retainers and the boot side trim.
-

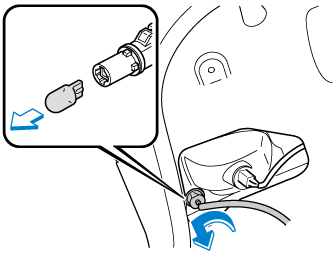

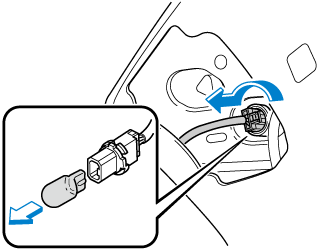

Turn the socket and bulb assembly anticlockwise and remove it.
-
Disconnect the bulb from the socket.
-
Install the new bulb in the reverse order of the removal procedure.
Wagon
-
Make sure the ignition is switched off, and the headlight switch is off.
-

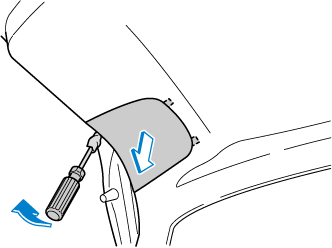

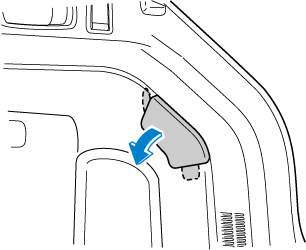

Remove the cover.
-
Turn the socket and bulb assembly anticlockwise and remove it.
-
Disconnect the bulb from the socket.
-
Install the new bulb in the reverse order of the removal procedure.
Tail lights (Boot lid side/Liftgate side) (With LED headlights)
The LED bulb cannot be replaced as a single unit because it is an integrated unit.
The LED bulb has to be replaced with the unit. We recommend an Authorised Mazda Repairer when the replacement is necessary.
Tail lights (Boot lid side/Liftgate side) (With halogen headlights), Reverse light
Saloon
-
Make sure the ignition is switched off, and the headlight switch is off.
-
Pull the centre of each plastic retainer and remove the retainers and the boot lid trim.
-
(Reverse light)

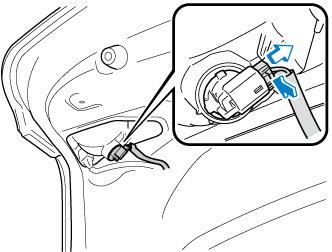

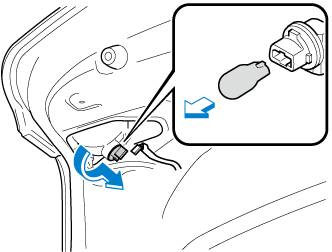

Disconnect the electrical connector from the bulb by pressing the tab on the connector with your finger and pulling the connector.
-

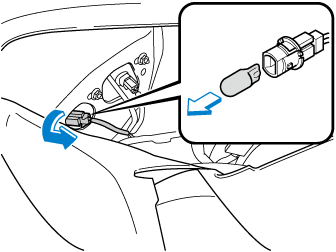

Turn the socket and bulb assembly anticlockwise and remove it.
-
Disconnect the bulb from the socket.
Tail lights (Boot lid side)
Reverse light
-
Install the new bulb in the reverse order of the removal procedure.
Wagon
-
Make sure the ignition is switched off, and the headlight switch is off.
-
Remove the cover with a cloth-wrapped flathead screwdriver to the cover.
-
Turn the socket and bulb assembly anticlockwise and remove it.
-
Disconnect the bulb from the socket.
Tail lights (Liftgate side)

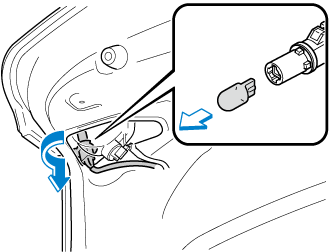

Reverse light
-
Install the new bulb in the reverse order of the removal procedure.
Number plate lights
-
Make sure the ignition is switched off, and the headlight switch is off.
-

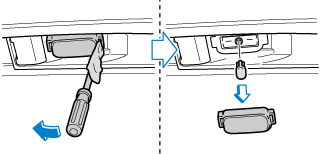

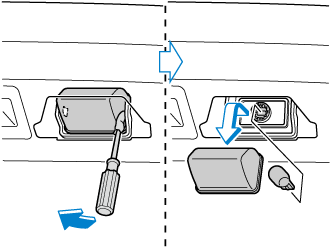

Wrap a flathead screwdriver with a soft cloth to prevent damage to the lens, and then remove the lens by carefully prying on the edge of the lens with a flathead screwdriver.
-
Disconnect the bulb by pulling it out.
Saloon
Wagon
-
Install the new bulb in the reverse order of the removal procedure.
Replacing Interior Light Bulbs
Overhead lights/Front map lights (LED type), Rear map lights (LED type)
The LED bulb cannot be replaced as a single unit because it is an integrated unit.
The LED bulb has to be replaced with the unit. We recommend an Authorised Mazda Repairer when the replacement is necessary.
Overhead lights/Front map lights (Bulb type), Rear map lights (Bulb type), Vanity mirror lights (Some Models) , Courtesy lights
-
Wrap a small flathead screwdriver with a soft cloth to prevent damage to the lens, and then remove the lens by carefully prying on the edge of the lens with the flathead screwdriver.
-
Disconnect the bulb by pulling it out.

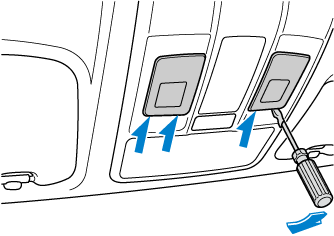

Overhead lights/Front map lights
Rear map lights

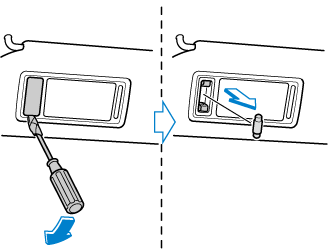

Vanity mirror lights (Some Models)
Courtesy lights
-
Install the new bulb in the reverse order of the removal procedure.
Boot light (Saloon)
-

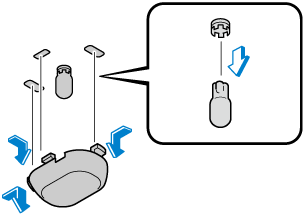

Press both sides of the lens cap to remove it.
-
Disconnect the bulb by pulling it out.
-
Install the new bulb in the reverse order of the removal procedure.
Luggage compartment light (Wagon)
(LED type)
The LED bulb cannot be replaced as a single unit because it is an integrated unit.
The LED bulb has to be replaced with the unit. We recommend an Authorised Mazda Repairer when the replacement is necessary.
(Bulb type)
-

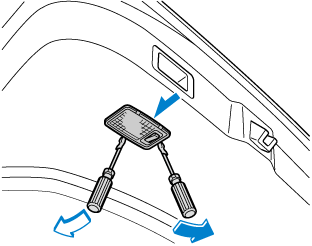

Wrap a small flathead screwdriver with a soft cloth to prevent damage to the lens and remove the lens unit by carefully prying on the edge of the lens unit with the flathead screwdriver.
-
Disconnect the electrical connector from the bulb by pressing the tab on the connector with your finger and pulling the connector.
When replacing the bulb always disconnect the connector first. Otherwise, electric and electronic devices could be shorted.
Close CautionView Caution -
Insert the flathead screwdriver into the gap between the lens and the lens unit, and then slide the screwdriver to detach the lens.
-
Disconnect the bulb by pulling it out.
-
Install the new bulb in the reverse order of the removal procedure.
Fuses
Your vehicle's electrical system is protected by fuses.
If any lights, accessories, or controls do not work, inspect the appropriate circuit protector. If a fuse has blown, the inside element will be melted.
If the same fuse blows again, avoid using that system and consult an expert repairer, we recommend an Authorised Mazda Repairer as soon as possible.
Fuse Replacement
Replacing the fuses on the vehicle's left side
If the electrical system does not work, first inspect the fuses on the vehicle's left side.
-
Make sure the ignition is switched off, and other switches are off.
-
Open the fuse panel cover.
-
Pull the fuse straight out with the fuse puller provided on the fuse block located in the engine compartment.
-
Inspect the fuse and replace it if it is blown.
-
Insert a new fuse of the same amperage rating, and make sure it fits tightly. If it does not fit tightly, have an expert install it. We recommend an Authorised Mazda Repairer.
If you have no spare fuses, borrow one of the same rating from a circuit not essential to vehicle operation, such as the AUDIO or OUTLET circuit.
Always replace a fuse with a genuine Mazda fuse or equivalent of the same rating. Otherwise you may damage the electric system.
Close CautionView Caution -
Reinstall the cover and make sure that it is securely installed.
Replacing the fuses under the bonnet
If the headlights or other electrical components do not work and the fuses in the cabin are normal, inspect the fuse block under the bonnet. If a fuse is blown, it must be replaced. Follow these steps:
-
Make sure the ignition is switched off, and other switches are off.
-
Remove the fuse block cover.
-
If any fuse but the MAIN fuse is blown, replace it with a new one of the same amperage rating.
Do not replace the main fuse and multiplex slow blow fuse by yourself. Have an Authorised Mazda Repairer perform the replacement:
Replacing these fuses by yourself is dangerous because they are high current fuses. Incorrect replacement could cause an electrical shock or a short circuit resulting in a fire.
Close WarningView Warning -
Reinstall the cover and make sure that it is securely installed.
Fuse Panel Description
Fuse block (Engine compartment)
|
DESCRIPTION |
FUSE RATING |
PROTECTED COMPONENT |
|
|---|---|---|---|
|
1 |
ADD FAN GE |
30 A |
Cooling fan (Some Models) |
|
2 |
IG2 |
30 A |
For protection of various circuits |
|
3 |
INJECTOR |
30 A |
Engine control system (Some Models) |
|
4 |
FAN DE |
40 A |
Cooling fan (Some Models) |
|
5 |
P.WINDOW1 |
30 A |
Power windows (Some Models) |
|
6 |
― |
― |
― |
|
7 |
ADD FAN DE |
40 A |
Cooling fan (Some Models) |
|
8 |
EVVT |
20 A |
Engine control system (Some Models) |
|
9 |
DEFOG |
40 A |
Rear window defogger |
|
10 |
DCDC DE |
40 A |
For protection of various circuits (Some Models) |
|
11 |
FAN GE |
30 A |
Cooling fan (Some Models) |
|
12 |
EPB L |
20 A |
Electric parking brake (LH) |
|
13 |
AUDIO |
40 A |
― |
|
14 |
EPB R |
20 A |
Electric parking brake (RH) |
|
15 |
ENG.MAIN |
40 A |
Engine control system |
|
16 |
ABS/DSC M |
50 A |
ABS, Dynamic stability control system |
|
17 |
 |
50 A |
For protection of various circuits |
|
18 |
WIPER |
20 A |
Front window wiper and washer |
|
19 |
HEATER |
40 A |
Air conditioner |
|
20 |
DCDC REG |
30 A |
For protection of various circuits (Some Models) |
|
21 |
ENGINE.IG1 |
7.5 A |
Engine control system |
|
22 |
C/U IG1 |
15 A |
For protection of various circuits |
|
23 |
H/L LOW L HID L |
15 A |
Headlight low beam (LH) |
|
24 |
H/L LOW R |
15 A |
Headlight low beam (RH) |
|
25 |
ENGINE3 |
15 A |
Engine control system |
|
26 |
ENGINE2 |
15 A |
Engine control system |
|
27 |
ENGINE1 |
15 A |
Engine control system |
|
28 |
AT |
15 A |
Transaxle control system (Some Models), Ignition switch |
|
29 |
H/CLEAN |
20 A |
Headlight washer (Some Models) |
|
30 |
A/C |
7.5 A |
Air conditioner |
|
31 |
AT PUMP |
15 A |
Transaxle control system (Some Models) |
|
32 |
STOP |
10 A |
Brake lights |
|
33 |
R.WIPER |
15 A |
Rear window wiper (Some Models) |
|
34 |
H/L HI |
20 A |
Headlight high beam |
|
35 |
HID R |
15 A |
― |
|
36 |
FOG |
15 A |
Fog lights (Some Models) |
|
37 |
 |
7.5 A |
Engine control system |
|
38 |
AUDIO2 |
7.5 A |
Audio system |
|
39 |
GLOW SIG |
5 A |
Engine control system (Some Models) |
|
40 |
METER2 |
7.5 A |
Instrument cluster |
|
41 |
METER1 |
10 A |
Instrument cluster |
|
42 |
SRS1 |
7.5 A |
Air bag |
|
43 |
BOSE |
25 A |
Bose® Sound System-equipped model (Some Models) |
|
44 |
AUDIO1 |
15 A |
Audio system |
|
45 |
ABS/DSC S |
30 A |
ABS, Dynamic stability control system |
|
46 |
FUEL PUMP |
15 A |
Fuel system (Some Models) |
|
47 |
FUEL WARM |
25 A |
― |
|
48 |
TAIL |
15 A |
Tail lights, Number plate lights |
|
49 |
FUEL PUMP2 |
25 A |
― |
|
50 |
HAZARD |
25 A |
Hazard warning flashers, Direction indicator lights |
|
51 |
DRL |
15 A |
― |
|
52 |
R.OUTLET2 |
15 A |
Accessory sockets |
|
53 |
HORN |
15 A |
Horn |
|
54 |
ROOM |
15 A |
Overhead light |
Fuse block (Left side)
|
DESCRIPTION |
FUSE RATING |
PROTECTED COMPONENT |
|
|---|---|---|---|
|
1 |
P.SEAT D |
30 A |
Power seat (Some Models) |
|
2 |
P.WINDOW3 |
30 A |
Power windows |
|
3 |
R.OUTLET3 |
15 A |
― |
|
4 |
P.WINDOW2 |
25 A |
Power windows |
|
5 |
SRS2/ESCL |
15 A |
Electronic steering lock |
|
6 |
D.LOCK |
25 A |
Power door locks |
|
7 |
SEAT WARM |
20 A |
Seat warmer (Some Models) |
|
8 |
SUNROOF |
10 A |
Sunroof (Some Models) |
|
9 |
F.OUTLET |
15 A |
Accessory sockets |
|
10 |
MIRROR |
7.5 A |
Power control mirror |
|
11 |
R.OUTLET1 |
15 A |
Accessory sockets (Some Models) |
|
12 |
― |
― |
― |
|
13 |
― |
― |
― |
|
14 |
― |
― |
― |
|
15 |
― |
― |
― |
|
16 |
― |
― |
― |
|
17 |
M.DEF |
7.5 A |
Mirror defogger (Some Models) |
|
18 |
R.SEAT W |
20 A |
Seat warmer (Some Models) |
|
19 |
R.SHADE |
7.5 A |
― |
|
20 |
AT IND |
7.5 A |
AT shift indicator |
|
21 |
P.SEAT P |
30 A |
Power seat (Some Models) |
Emission Control Maintenance (Australia)
Emission control maintenance is periodically required to ensure proper emission control and engine performance. Refer to scheduled maintenance (Search) for information on when and how to perform the following inspections and servicing items.
For owners with a Mazda Workshop Manual, refer to the sections on Predelivery Inspection and Scheduled Maintenance.
Engine
Drive belts
Inspect the belts for cracks and other damage. Replace if necessary.
Engine oil
SKYACTIV-G 2.0 and SKYACTIV-G 2.5
When changing the engine oil, use API SG/SH/SJ/SL/SM/SN or ILSAC GF-II/GF-III/GF-IV/GF-V oil of the proper viscosity for your climate.
SKYACTIV-D 2.2
When changing the engine oil, use ACEA C1 or JASO DL-1 oil of the proper viscosity for your climate.
Change it more frequently during heavy use under any of these conditions:
-
Dusty environment
-
Extended idling or low-speed operations
-
Driving for a prolonged period in cold temperatures or in an extremely humid climate
-
Repeated short-distance driving
Oil filter
Do not fail to change the oil filter as prescribed. As with the engine oil, under severe driving conditions, the filter should be changed more frequently.
Cooling system
When inspecting hoses (including the heater hose), connections, and clamps, look for leaks, swellings, cracks, and other damage. Replace any defective hose or part.
Engine coolant
Change the coolant and flush the cooling system as prescribed.
Fuel System and Air-Intake Control System
Fuel lines and hoses
When inspecting the fuel pipes, hoses, connections and clamps, look for leaks, deterioration, and other damage.
Replace any defective hose or part.
Air filter
Besides replacing the filter regularly, always replace it if it is torn or otherwise damaged. Inspect and replace it more often than prescribed if the vehicle is used in very dusty or sandy areas.
Ignition System
Spark plugs
To maintain proper engine operation and emission control, spark plugs must always be in good condition.
Evaporative Emission Control System
When inspecting evaporative line hoses and connections (including the fuel tank and filler cap), apply pressure to determine pressure-holding capacity. Replace any damaged or deteriorated parts.
Exhaust Emission Control System
E.G.R. system
The EGR valve must function properly and no leaks can be evident in the pipes and connections. Replace any damaged part.
Clean the pipes, valve and connections from time to time.
Do not touch the EGR pipes while the engine is running or until they have cooled off after the engine is stopped:
EGR pipes are extremely hot during engine operation and for a while after operation. Touching them could cause severe burns.
