Audio Set [Type A (non-touchscreen)]

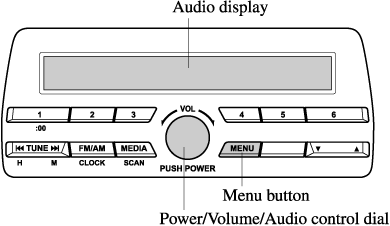

Power/Volume/Sound Controls

Power/Volume/Sound Controls

Power ON/OFF

Switch the ignition to ACC or ON. Press the power/volume dial to turn the audio system on. Press the power/volume dial again to turn the audio system off.

Volume adjustment

To adjust the volume, turn the power/volume dial. Turn the power/volume dial clockwise to increase volume, anticlockwise to decrease it.

Audio sound adjustment

  1. Press the menu button () to select the function. The selected function will be indicated.

  2. Turn the audio control dial to adjust the selected functions as follows:

Indication

Setting value

Turn Anticlockwise

Turn Clockwise

AF*1

(Setting Alternative Frequency (AF))

Off

On

REG*1

(Setting Regional Programme (REG))

Off

On

ALC

(Automatic volume adjustment)

Level decrease

Level increase

BASS

(Low pitch sound)

Decrease bass

Increase bass

TREB

(Treble sound)

Decrease treble

Increase treble

FADE

(Front/back volume balance)

Shift the sound to the front

Shift the sound to the rear

BAL

(Left/right volume balance)

Shift the sound to the left

Shift the sound to the right

BEEP

(Audio operation sound)

Off

On

BT SETUP*2

Select mode

12Hr 24Hr

(12 Hr/24 Hr time adjustment)

12Hr (Flashing)

24Hr (Flashing)

*1 With Radio Data System (RDS)

*2 Depending on the model, this function may not be available.



If not operated for several seconds, the display returns to the previous display. To reset bass, treble, fade, and balance, press the menu button () for 2 seconds. The unit will beep and “CLEAR” will be displayed.

Close Note
View Note

AF (Setting Alternative Frequency (AF)) (Some Models)

The AF function of the Radio Data System (RDS) can be set on or off.

Refer to Radio Data System (RDS) (Search).

REG (Setting Regional Programme (REG)) (Some Models)

The REG function of the Radio Data System (RDS) can be set on or off.

Refer to Radio Data System (RDS) (Search).

ALC (Automatic volume adjustment)

The automatic level control (ALC) changes the audio volume automatically according to the vehicle speed. The faster the vehicle speed, the higher the volume increases. ALC has ALC OFF and ALC LEVEL 1 to 7 modes. At ALC LEVEL 7, the amount that the volume can increase is at the maximum. Select the mode according to the driving conditions.

BEEP (Audio operation sound)

The setting for the operation sound when pressing and holding a button can be changed. The initial setting is ON. Set to OFF to mute the operation sound.

BT SETUP mode (Some Models)

Music and other audio such as voice data recorded on portable audio devices and mobile phones available on the market which are equipped with the Bluetooth® transmission function can be listened to via wireless transmission over the vehicle's speakers. Using the BT SETUP mode, these devices can be programmed to the Bluetooth® unit or changed (Search).

12Hr 24Hr (12 Hr/24 Hr time adjustment)

Rotating the audio control dial switches the display between 12 and 24-hour clock time (Search).

Clock

Clock

Setting the time

The clock can be set at any time when the ignition is switched to ACC or ON.

  1. To adjust the time, press the clock button () for about 2 seconds until a beep is heard.

  2. The clock's current time will flash.

    Time adjustment

    • To adjust the time, press the hour/minute set button (, ) while the clock's current time is flashing.

    • The hours advance while the hour set button () is pressed. The minutes advance while the minute set button () is pressed.

  3. Press the clock button () again to start the clock.

Time resetting

  1. Press the clock button () for about 2 seconds until a beep is heard.

  2. Press the :00 button (1).

  3. When the button is pressed, the time will be reset as follows:

    (Example)

    12:01―12:29→12:00

    12:30―12:59→1:00



  • When the :00 button (1) is pressed, the seconds will start at “00”.

  • Switching between 12 and 24-hour clock time:

    Press the menu button () several times until 12 and 24-hour clock time are displayed. Turn the audio control dial in either direction, select the desired clock setting while the preferred clock time is flashing.

Close Note
View Note
Operating the Radio

Operating the Radio

Radio ON

Press a band selector button () to turn the radio on.

Band selection

Successively pressing the band selector button () switches the bands as follows: FM1→FM2→AM (Without Radio Data System (RDS)), MW/LW (With Radio Data System (RDS)).



The selected mode will be indicated.



If the FM broadcast signal becomes weak, reception automatically changes from STEREO to MONO for reduced noise.

Close Note
View Note

Tuning

The radio has the following tuning methods: Manual, Seek, Scan, Preset channel, and Auto memory tuning. The easiest way to tune stations is to set them on preset channels.

Manual tuning

Select the station by pressing the tuning button (, ) lightly.

Seek tuning

Automatic search for radio stations starts when the tuning button (, ) is pressed until a beep sound is heard. The search stops when a station is found.



If you continue to press and hold the button, the frequency will continue changing without stopping.

Close Note
View Note

Scan tuning

Press and hold the scan button () to automatically sample strong stations. Scanning stops at each station for about 5 seconds. To hold a station, press and hold the scan button () again during this interval.

Preset channel tuning

The 6 preset channels can be used to store 6 AM (Without Radio Data System (RDS)), MW/LW (With Radio Data System (RDS)) and 12 FM stations.

  1. To set a channel first select AM (Without Radio Data System (RDS)), MW/LW (With Radio Data System (RDS)), FM1, or FM2. Tune to the desired station.

  2. Press a channel preset button for about 2 seconds until a beep is heard. The preset channel number or station frequency will be displayed. The station is now held in the memory.

  3. Repeat this operation for the other stations and bands you want to store. To tune one in the memory, select AM (Without Radio Data System (RDS)), MW/LW (With Radio Data System (RDS)), FM1, or FM2 and then press its channel preset button. The station frequency or the channel number will be displayed.

Auto memory tuning (Without Radio Data System (RDS))

This is especially useful when driving in an area where the local stations are not known.



Press and hold the auto memory button () for about 2 seconds until a beep is heard; the system will automatically scan and temporarily store up to 6 stations with the strongest frequencies in each selected band in that area.



After scanning is completed, the station with the strongest frequency will be tuned and its frequency displayed. Press and release the auto memory button () to recall stations from the auto-stored stations. One stored station will be selected each time and its frequency and channel number will be displayed.



If no stations can be tuned after scanning operations, “A” will be displayed.

Close Note
View Note

Radio Data System (RDS) (Some Models)



The radio data system (RDS) does not function if it is out of the system's service coverage area.

Close Note
View Note

Alternative frequency (AF)

AF functions on FM stations. Press the menu button () and select the AF mode to turn it on and “AF” will be displayed. If the radio reception of the current station weakens, the system switches to an alternative station automatically.



If you wish to continue a regional programme, press the menu button () and select the REG mode to turn it on. “REG ON” is displayed. To cancel it, press the audio control dial and select the REG mode to turn it off. “REG OFF” is displayed.

Traffic announcement (TA)

If the traffic announcement button () is pressed, the unit switches to TA mode and “TA” is displayed.



If a TA broadcast is received while in the TA mode, the TA broadcast intercedes even while using other functions (FM, CD, USB device, AUX, or BT audio), and “Traffic Info” is displayed.

During a TA broadcast, press the traffic announcement button () to end the broadcast and return to the previous mode.

Programme-type information (PTY)

Some FM stations transmit programme-type codes. This code enables alternative stations transmitting the same programme-type code to be found quickly.



Press the programme-type information button (,) while in FM mode. The programme-type code and “PTY” will be displayed during reception. If there is no programme-type code, “None” will be displayed.

(To choose a programme-type:)

  1. Press the Programme-type information button (,) when the programme-type code is displayed.

  2. Operate any one of the following:

    • Press the pre-programmed channel preset button (1 to 6).

    • Press the Programme-type information button (,).

(To scan for programme-type information:)

  1. Press the Programme-type information button (,) when the programme-type code is displayed.

  2. Press the Programme-type information button (,) until the beep sounds.

    The unit will scan for broadcasts, if none are found, “Nothing” will be displayed and the unit will return to the previously tuned band.

(To store programme types in the channel preset buttons:)

  1. Press the Programme-type information button (,) when the programme-type code is displayed.

  2. Press the Programme-type information button (,) and select the programme type.

  3. While the programme type is displayed, press a channel preset button for about 2 seconds.

Emergency broadcast

If an emergency broadcast is received, the emergency broadcast intercedes even while using other functions (FM, CD, USB device, AUX, or BT audio), and “Alarm!” is displayed.



When the emergency broadcast ends, the system will return to the previous mode.

Operating the Compact Disc (CD) Player (Some Models)

Operating the Compact Disc (CD) Player (Some Models)

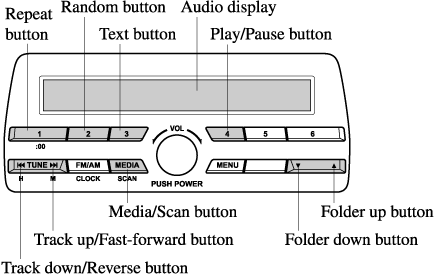

Type

Playable data

Music/MP3/WMA/AAC CD player

  • Music data (CD-DA)

  • MP3/WMA/AAC file



If a disc has both music data (CD-DA) and MP3/WMA/AAC files, playback of the 2 or 3 file types differs depending on how the disc was recorded.

Close Note
View Note

Inserting the CD

Insert the CD into the slot, label-side up. The auto-loading mechanism will set the CD and begin play.



There will be a short lapse before play begins while the player reads the digital signals on the CD.

Close Note
View Note

Ejecting the CD

Press the CD eject button () to eject the CD.

Playback

Press the media button () to switch to CD mode and start playback.



The CD mode cannot be selected if a CD has not been inserted.

Close Note
View Note

Pause

To stop playback, press the Play/Pause button (4).

Press the button again to resume playback.

Fast-forward/Reverse

Press and hold the fast-forward button () to advance through a track at high speed. Press and hold the reverse button () to reverse through a track at high speed.

Track search

Press the track up button () once to skip forward to the beginning of the next track.

Press the track down button () within a few seconds after playback begins to track down to the beginning of the previous track.

Press the track down button () after a few seconds have elapsed to start playback from the beginning of the current track.

Folder search (during MP3/WMA/AAC CD playback)

To change to the previous folder, press the folder down button (), or press the folder up button () to advance to the next folder.

Music scan

During music CD playback

This function scans the titles on a CD and plays 10 seconds of each song to aid you in finding a song you want to listen to.

Press and hold the scan button () during playback to start the scan play operation (the track number will flash). Press and hold the scan button () again to cancel scan playback.

During MP3/WMA/AAC CD playback

This function scans the titles in a folder currently being played and plays 10 seconds of each song to aid you in finding a song you want to listen to. Press and hold the scan button () during playback to start the scan play operation (the track number will flash).

Press and hold the scan button () again to cancel scan playback.



If the unit is left in scan, normal playback will resume where scan was selected.

Close Note
View Note

Repeat playback

During music CD playback

  1. Press the repeat button (1) during playback to play the current track repeatedly. “TRACK RPT” is displayed ( is displayed next to RPT at the bottom of the display area).

  2. Press the button again to cancel the repeat playback.

During MP3/WMA/AAC CD playback

(Track repeat)

  1. Press the repeat button (1) during playback to play the current track repeatedly. “TRACK RPT” is displayed ( is displayed next to RPT at the bottom of the display area).

  2. To cancel the repeat playback, press the button again after 3 seconds.

(Folder repeat)

  1. Press the repeat button (1) during playback, and then press the button again within 3 seconds to play the tracks in the current folder repeatedly. “FOLDER RPT” is displayed ( is displayed next to RPT at the bottom of the display area).

  2. Press the button again to cancel the repeat playback.

Random playback

Tracks are randomly selected and played.

During music CD playback

  1. Press the random button (2) during playback to play the tracks on the CD randomly. “DISC RDM” is displayed ( is displayed next to RDM at the bottom of the display area).

  2. Press the button again to cancel the random playback.

During MP3/WMA/AAC CD playback

(Folder random)

  1. Press the random button (2) during playback to play the tracks in the folder randomly. “FOLDER RDM” is displayed ( is displayed next to RDM at the bottom of the display area).

  2. To cancel the random playback, press the button again after 3 seconds.

(CD random)

  1. Press the random button (2) during playback, and then press the button again within 3 seconds to play the tracks on the CD randomly. “DISC RDM” is displayed ( is displayed next to RDM at the bottom of the display area).

  2. Press the button again to cancel the random playback.

Switching the display

The information displayed on the audio display changes as follows each time the text button (3) is pressed during playback.

Music CD

Button

Information displayed on audio display

Track number/Elapsed time

Track number

Track name

Album name

Artist name

MP3/WMA/AAC CD

Button

Information displayed on audio display

File number/Elapsed time

Folder number/File number

File name

Folder name

Album name

Song name

Artist name



  • The information viewable in the display is only CD information (such as artist name, song title) which has been recorded to the CD.

  • This unit cannot display some characters. Characters which cannot be displayed are indicated by an asterisk ().

Close Note
View Note

Display scroll

Only 13 characters can be displayed at one time. To display the rest of the characters of a long title, press and hold the text button (3). The display scrolls the next 13 characters. Press and hold the text button (3) again after the last 13 characters have been displayed to return to the beginning of the title.



The number of characters which can be displayed is restricted.

Close Note
View Note
How to use AUX mode

How to use AUX mode

  1. Switch the ignition to ACC or ON.

  2. Press the power/volume dial to turn the audio system on.

  3. Press the media button () of the audio unit to change to the AUX mode.



  • When the device is not connected to the auxiliary jack, the mode does not switch to the AUX mode.

  • Adjust the audio volume using the portable audio device or audio unit.

  • Audio adjustments other than audio volume can only be done using the portable audio device.

  • If the connection plug is pulled out from the auxiliary jack while in AUX mode, noise may occur.

Close Note
View Note

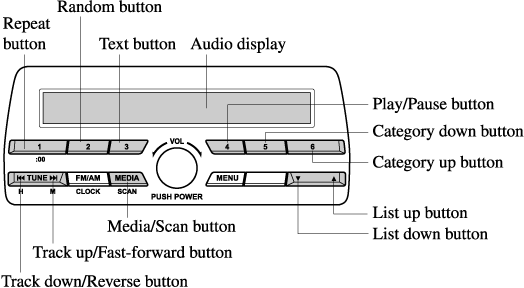

How to use USB mode

How to use USB mode

Type

Playable data

USB mode

MP3/WMA/AAC file

This unit does not support a USB 3.0 device. In addition, other devices may not be supported depending on the model or OS version.

Playback

  1. Switch the ignition to ACC or ON.

  2. Press the power/volume dial to turn the audio system on.

  3. Press the media button () to switch to the USB mode and start playback.



  • Some devices such as smart phones may require a setting change to allow operation using a USB connection.

  • When the USB device is not connected, the mode does not switch to USB mode.

  • When there is no playable data in the USB device, “NO CONTENTS” is flashed.

  • Playback of the USB device is in the order of the folder numbers. Folders which have no MP3/WMA/AAC files are skipped.

  • Do not remove the USB device while in the USB mode. The data may be damaged.

Close Note
View Note

Pause

To stop playback, press the play/pause button (4).

Press the button again to resume playback.

Fast-forward/Reverse

Press and hold the fast-forward button () to advance through a track at high speed.

Press and hold the reverse button () to reverse through a track at high speed.

Track search

Press the track up button () once to skip forward to the beginning of the next track.

Press the track down button () within a few seconds after playback begins to track down to the beginning of the previous track.

Press the track down button () after a few seconds have elapsed to start playback from the beginning of the current track.

Folder search

To change to the previous folder, press the folder down button (), or press the folder up button () to advance to the next folder.

Music scan

This function scans the titles in a folder currently being played and plays 10 seconds of each song to aid you in finding a song you want to listen to.

Press and hold the scan button () during playback to start the scan play operation (the track number will flash). Press and hold the scan button () again to cancel scan playback.



If the unit is left in scan, normal playback will resume where scan was selected.

Close Note
View Note

Repeat playback

Track repeat

  1. Press the repeat button (1) during playback to play the current track repeatedly. “TRACK RPT” is displayed ( is displayed next to RPT at the bottom of the display area).

  2. To cancel the repeat playback, press the button again after 3 seconds.

Folder repeat

  1. Press the repeat button (1) during playback, and then press the button again within 3 seconds to play the tracks in the current folder repeatedly. “FOLDER RPT” is displayed ( is displayed next to RPT at the bottom of the display area).

  2. Press the button again to cancel the repeat playback.

Random playback

Tracks are randomly selected and played.

Folder random

  1. Press the random button (2) during playback to play the tracks in the folder randomly. “FOLDER RDM” is displayed ( is displayed next to RDM at the bottom of the display area).

  2. To cancel the random playback, press the button again after 3 seconds.

All random

  1. Press the random button (2) during playback, and then press the button again within 3 seconds to play the tracks in the USB device randomly. “ALL RDM” is displayed ( is displayed next to RDM at the bottom of the display area).

  2. Press the button again to cancel the random playback.

Switching the display

The information displayed on the audio display changes as follows each time the text button (3) is pressed during playback.

Button

Information displayed on audio display

File number/Elapsed time

Folder number/File number

File name

Folder name

Album name

Song name

Artist name



  • The information (artist name, music name) is displayed only when the USB device information in the USB device has information which can be displayed on the screen.

  • This unit cannot display some characters. Characters which cannot be displayed are indicated by an asterisk ().

Close Note
View Note

Display scroll

Only 13 characters can be displayed at one time. To display the rest of the characters of a long title, press and hold the text button (3). The display scrolls the next 13 characters. Press and hold the text button (3) again after the last 13 characters have been displayed to return to the beginning of the title.



The number of characters which can be displayed is restricted.

Close Note
View Note
How to use iPod mode

How to use iPod mode

An iPod may not be compatible depending on the model or OS version. In this case, an error message is displayed.



The iPod functions on the iPod cannot be operated while it is connected to the unit because the unit controls the iPod functions.

Close Note
View Note

Playback

  1. Switch the ignition to ACC or ON.

  2. Press the power/volume dial to turn the audio system on.

  3. Press the media button () to switch to the iPod mode and start playback.



  • When an iPod is not connected, the mode does not switch to the iPod mode.

  • When there is no playable data in the iPod, “NO CONTENTS” is flashed.

  • Do not remove the iPod while in the iPod mode. Otherwise, the data could be damaged.

Close Note
View Note

Pause

To stop playback, press the play/pause button (4).

Press the button again to resume playback.

Fast-forward/Reverse

Press and hold the fast-forward button () to advance through a track at high speed.

Press and hold the reverse button () to reverse through a track at high speed.

Track search

Press the track up button () once to skip forward to the beginning of the next track.

Press the track down button () within a few seconds (depends on iPod software version) after playback begins to track down to the beginning of the previous track.

Press the track down button () after a few seconds (depends on iPod software version) have elapsed to start playback from the beginning of the current track.

Category search

Press the category down button (5) to select the previous category and press the category up button (6) to select the next category.



The types of categories include Playlist, Artist, Album, Song, Podcast, Genre, Composer, and Audio book.

Close Note
View Note

List search

Press the list down button () to select the previous list and press the list up button () to select the next list.



When the selected category is Song or Audio book, there is no list.

Close Note
View Note

Music scan

This function scans the titles in a list currently being played and plays 10 seconds of each song to aid you in finding a song you want to listen to.

Press and hold the scan button () during playback to start the scan play operation (the track number will flash). Press and hold the scan button () again to cancel scan playback.



If the unit is left in scan, normal playback will resume where scan was selected.

Close Note
View Note

Repeat playback

  1. Press the repeat button (1) during playback to play the current track repeatedly. “TRACK RPT” is displayed ( is displayed next to RPT at the bottom of the display area).

  2. Press the button again to cancel the repeat playback.

Random playback

Tracks are randomly selected and played.

Song random

  1. Press the random button (2) during playback to play the tracks in the list randomly. “SONG RDM” is displayed ( is displayed next to RDM at the bottom of the display area).

  2. To cancel the random playback, press the button again after 3 seconds.

Album random

  1. Press the random button (2) during playback, and then press the button again within 3 seconds to play the tracks in the iPod randomly. “ALBUM RDM” is displayed ( is displayed next to RDM at the bottom of the display area).

  2. Press the button again to cancel the random playback.



The track number being played randomly is in the order of the iPod shuffle table.

Close Note
View Note

Switching the display

The information displayed on the audio display changes as follows each time the text button (3) is pressed during playback.

Button

Information displayed on audio display

File number/Elapsed time

File number

Category name

Artist name

Album name

Song name



  • The information (artist name, music name) is displayed only when the iPod has information which can be displayed.

  • This unit cannot display some characters. Characters which cannot be displayed are indicated by an asterisk ().

Close Note
View Note

Display scroll

13 characters can be displayed at one time. To display the rest of the characters of a long title, press and hold the text button (3). The display scrolls the next 13 characters. Press and hold the text button (3) again after the last 13 characters have been displayed to return to the beginning of the title.



The number of characters which can be displayed is restricted.

Close Note
View Note
Bluetooth® (Some Models)

Introduction

Bluetooth® Hands-Free outline

When a Bluetooth® device (mobile phone) is connected to the vehicle's Bluetooth® unit, a call can be made or received by pressing the talk button, pick-up button, or hang-up button on the audio remote control switch. For example, even if a device (mobile phone) is in your coat pocket, a call can be made without taking the device (mobile phone) out and operating it directly.

Bluetooth® audio outline

When a portable audio unit equipped with the Bluetooth® communication function is paired to the vehicle, you can listen to music stored on the paired portable audio device from the vehicle's speakers. It is not necessary to connect the portable audio device to the vehicle's external input terminal. After programming, operate the vehicle audio control panel to play/stop the audio.





  • For your safety, a device can be paired only when the vehicle is parked. If the vehicle starts to move, the pairing procedure will end. Park the vehicle in a safe place before pairing.

  • The communication range of a Bluetooth® equipped device is about 10 meters (32 ft) or less.

  • Basic audio operation is available using voice commands even if Bluetooth® is not connected.

Close Note
View Note



Some Bluetooth® mobile devices are not compatible with the vehicle. Consult an Authorised Mazda Repairer, Mazda's call centre or Web support centre for information regarding Bluetooth® mobile device compatibility:



Phone:

(Germany)

0800 4263 738 (8:00―18:00 Central European Time)

(Except Germany)

00800 4263 7383 (8:00―18:00 Central European Time)

(Worldwide)

49 721 5099 8198 (8:00―18:00 Central European Time)

Web:

http://www.mazdahandsfree.com

Close Caution
View Caution

Applicable Bluetooth® specification (Recommended)

Ver. 2.0

Component Parts

Microphone (hands-free)

The microphone is used for speaking voice commands or when making a Hands-free call.

Talk button

Activates the voice recognition. In addition, it skips the voice guidance.

Pick-up button

Responds to incoming calls. In addition, after selecting a contact or dialing a number, it places the call when the button is pressed.

Hang-up button

Ends the call or refuses an incoming call. In addition, it ends the voice recognition operation.

Volume adjustment

The power/volume dial of the audio unit is used to adjust the volume. Turn the dial to the right to increase volume, to the left to decrease it.

The volume can also be adjusted using the volume button on the steering wheel.



If the volume is lower compared to other audio modes, increase the volume from the device side.

Close Note
View Note
Bluetooth® Preparation (Some Models)

Bluetooth® Hands-Free Preparation

Pairing code setting

The 4-digit pairing code setting for registration of your cell phone (pairing) can be set beforehand.



The initial setting value is “0000”.

Close Note
View Note

  1. Press the pick-up button or talk button with a short press.

  2. Say: [Beep] “Setup”

  3. Prompt: “Select one of the following: Pairing options, confirmation prompts, language, password, select phone or select music player.”

  4. Say: [Beep] “Pairing options”

  5. Prompt: “Select one of the following: Pair, Edit, Delete, List, or Set pin Code.”

  6. Say: [Beep] “Set pin code”

  7. Prompt: “Your current pin code is XXXX. Do you want to change it to a different pairing pin code?”

  8. Say: [Beep] “Yes”

  9. Prompt: “Please say a 4-digit pairing code.”

  10. Say: [Beep] “YYYY”

  11. Prompt: “YYYY is this correct?”

  12. Say: [Beep] “Yes” or “No”

  13. If “Yes”, go to Step 14. If “No”, the procedure returns to Step 9.

  14. Prompt: “Your new pairing pin code is YYYY. Use this pin code when pairing devices to the Hands free system. Do you want to pair a device now?”

  15. Say: [Beep] “Yes” or “No”

  16. If “Yes”, the system switches to the device registration mode. If “No”, the system returns to standby status.

Bluetooth® audio device pairing (Bluetooth® Audio)

Any Bluetooth® audio device must be paired to the vehicle's Bluetooth® unit before it can be listened to over the vehicle's speakers.

A maximum of seven devices including Bluetooth® audio devices and hands-free mobile phones can be paired to one vehicle.



  • If a Bluetooth® device has already been paired to the vehicle as a hands-free mobile phone, it does not need to be paired again when using the device as a Bluetooth® audio device. Conversely, it does not need to be paired again as a hands-free mobile phone if it has already been paired as a Bluetooth® audio device.

  • Device registration can also be done using voice recognition.

Close Note
View Note

Concerning the operation of a Bluetooth® audio device itself, refer to its instruction manual.

Some Bluetooth® audio devices have PIN codes (four digits). Refer to the audio device's instruction manual because the pairing procedure differs depending on whether it has a PIN code or not.

Pairing a Bluetooth® audio device which has a four-digit PIN code

  1. Using the audio control dial, select the pairing mode “PAIR DEVICE” in the “BT SETUP” mode. (Refer to “Bluetooth® audio device set-up” for details.)

  2. Press the audio control dial to determine the mode.

    After “ENTER PIN” is displayed on the audio display for 3 seconds, “PIN 0000” is displayed and the PIN code can be input.

  3. Input the PIN code of your Bluetooth® audio device by pressing channel preset buttons 1 to 4 while “PIN 0000” is displayed.

    Press channel preset button 1 to input the first digit, 2 for the second, 3 for the third, and 4 for the forth. For example, if the PIN code were “4213”, press channel preset button 1 four times (1, 2, 3, 4), button 2 twice (1, 2), button 3 once (1), and button 4 three times (1, 2, 3). If the “PIN 0000” display disappears before finishing the PIN code input, repeat the procedure from Step 1.



    Some devices accept only a particular pairing code (Usually, “0000” or “1234”).

    If pairing cannot be completed, refer to the owner's manual of your mobile device, and try those numbers if necessary.

    Close Note
    View Note

  4. Press the audio control dial while the input PIN code is displayed.

    “PAIRING” flashes on the display.

  5. Operate the Bluetooth® audio device and set it to the pairing mode while “PAIRING” is flashing.

  6. When the pairing is completed, “” and “PAIR SUCCESS” are displayed after about 10 — 30 seconds, after which “PAIR SUCCESS” continues to be displayed for 3 seconds, and then the unit returns to the normal display.



    • Some Bluetooth® audio devices need a certain amount of time before the “” symbol is displayed.

    • If the pairing failed, “Err” flashes for 3 seconds.

    • Pairing cannot be performed while the vehicle is moving. If you attempt to perform pairing while the vehicle is moving, “PAIR DISABLE” is displayed.

    • If seven Bluetooth® audio devices have already been paired to the vehicle, pairing cannot be performed and “MEMORY FULL” is displayed. Delete one paired device to pair another one.

    Close Note
    View Note

Pairing a Bluetooth® audio device which does not have a four-digit PIN code

  1. Using the audio control dial, select the pairing mode “PAIR DEVICE” in the “BT SETUP” mode. (Refer to “Bluetooth® audio set up” for details.)

  2. Press the audio control dial to determine the mode. After “ENTER PIN” is displayed on the audio display for 3 seconds, “PIN 0000” is displayed and the PIN code can be input.

  3. Press the audio control dial while “PIN 0000” is displayed.

    “PAIRING” flashes on the audio display.

  4. Operate the Bluetooth® audio device and set it to the pairing mode while “PAIRING” is flashing.

  5. As the Bluetooth® audio device requires a PIN code, input “0000”.

  6. When the pairing is completed, “” and “PAIR SUCCESS” are displayed after about 10 — 30 seconds, after which “PAIR SUCCESS” continues to be displayed for 3 seconds, and then the unit returns to the normal display.



    • If pairing cannot be completed, try “1234” instead. Refer to the owner's manual of your mobile device for the right PIN code.

    • Some Bluetooth® audio devices need a certain amount of time before the “” symbol is displayed.

    • If the pairing failed, “Err” flashes for 3 seconds.

    • Pairing cannot be performed while the vehicle is moving. If you attempt to perform pairing while the vehicle is moving, “PAIR DISABLE” is displayed.

    • If seven Bluetooth® audio devices have already been paired to the vehicle, pairing cannot be performed and “MEMORY FULL” is displayed. Delete one paired device to pair another one.

    Close Note
    View Note

Bluetooth® audio device information display

  1. Using the audio control dial, select the pair device information display mode “DEVICE INFO” in the “BT SETUP” mode. (Refer to “Bluetooth® audio device set-up” for details.)

  2. Press the audio control dial to determine the mode.

  3. The name of the Bluetooth® unit device is displayed.

  4. Rotate the audio control dial to select the information for the Bluetooth® unit which you would like to view.





    When “GO BACK” is selected and the audio control dial is pressed, the display returns to “DEVICE INFO”.

    Close Note
    View Note
Bluetooth® Audio (Some Models)

Bluetooth® Audio (Some Models)

Applicable Bluetooth® specification (Recommended)

Ver. 2.0



Response profile

  • A2DP (Advanced Audio Distribution Profile) Ver. 1.0

  • AVRCP (Audio/Video Remote Control Profile) Ver. 1.0/1.3



A2DP is a profile which transmits only audio to the Bluetooth® unit. If your Bluetooth® audio device corresponds only to A2DP, but not AVRCP, you cannot operate it using the control panel of the vehicle's audio system. In this case, only the operations on the mobile device are available the same as when a portable audio device for a non-compliant Bluetooth® device is connected to the AUX terminal.

Function

A2DP

AVRCP

Ver. 1.0

Ver. 1.3

Playback

—

X

X

Pause

—

X

X

File (Track) up/down

—

X

X

Reverse

—

—

X

Fast-forward

—

—

X

Text display

—

—

X

X: Available

—: Not available



  • The battery consumption of Bluetooth® audio devices increases while Bluetooth® is connected.

  • If a general mobile phone device is USB connected during music playback over the Bluetooth® connection, the Bluetooth® connection is disconnected. For this reason, you cannot have music playback over a Bluetooth® connection and music playback using a USB connection at the same time.

  • The system may not operate normally depending on the Bluetooth® audio device.

Close Note
View Note

Switching to Bluetooth® audio mode

To listen to music or voice audio recorded to a Bluetooth® audio device, switch to the Bluetooth® audio mode to operate the audio device using the audio system control panel. Any Bluetooth® audio device must be paired to the vehicle's Bluetooth® unit before it can be used.

Refer to Bluetooth® Preparation (Type A) (Search).

  1. Turn on the Bluetooth® audio device's power.

  2. Switch the ignition to ACC or ON.

    Make sure that the “ ” symbol is displayed in the audio display. The symbol is not displayed if an un-paired Bluetooth® audio device is being used or the vehicle's Bluetooth® unit has a malfunction.



    Some Bluetooth® audio devices need a certain amount of time before the “” symbol is displayed.

    Close Note
    View Note

  3. Press the media button () to switch to the Bluetooth® audio mode and start playback.

If the current device version is lower than AVRCP Ver. 1.3: “BT Audio” is displayed.

If the current device is AVRCP Ver. 1.3: The playback time is displayed.



  • If the Bluetooth® audio device does not begin playback, press the Play/Pause button (4).

  • If a call is received on a hands-free mobile phone during playback from the Bluetooth® audio device, the playback is stopped. Playback from the Bluetooth® audio device resumes after the call ends.

Close Note
View Note

Playback

  1. To listen to a Bluetooth® audio device over the vehicle's speaker system, switch the mode to Bluetooth® audio mode. (Refer to “Switching to Bluetooth® audio mode”)

  2. To stop playback, press the Play/Pause button (4).

  3. Press the button again to resume playback.

Selecting a file (track)

Selects the next file (track)

Short-press the track up button ().

Selects the beginning of the current file (track)

Short-press the track down button ().

Fast-forward/Reverse (AVRCP Ver. 1.3)

Fast-forward

Press and hold the fast-forward button ().

Reverse

Press and hold the reverse down button ().

Switching the display (only AVRCP Ver. 1.3)

The information displayed on the audio display changes as follows each time the text button (3) is pressed during playback.

Button

Information displayed on audio display

Elapsed time

Album name

Song name

Artist name



  • If title information is not available, “NO TITLE” is displayed.

  • This unit cannot display some characters. Characters which cannot be displayed are indicated by an asterisk ().

Close Note
View Note

Display scroll

Only 13 characters can be displayed at one time. To display the rest of the characters of a long title, press and hold the text button (3). The display scrolls the next 13 characters. Press and hold the text button (3) again after the last 13 characters have been displayed to return to the beginning of the title.

Bluetooth® audio device information display

If a Bluetooth® audio device is connected, the following information is displayed in the audio display.

Category

AVRCP Ver. lower than 1.3

AVRCP Ver. 1.3

Device name

X

X

Title

—

X

Artist name

—

X

Album name

—

X

File number

—

X

Playback time

—

X

Folder number

—

—

X: Available

—: Not available



Some information may not display depending on the device, and if the information cannot be displayed, “NO TITLE” is indicated.

Close Note
View Note
Bluetooth® Hands-Free (Some Models)

Receiving an Incoming Call

  1. Prompt: “Incoming call, press the pick-up button to answer”

  2. To accept the call, press the pick-up button.

    To reject the call, press the hang-up button.

Transferring a Call from Hands-Free to a Device (Mobile Phone)

Communication between the hands-free unit and a device (Mobile phone) is cancelled, and the line can be switched to a standard call using a device (Mobile phone).

  1. Press the talk button with a short press.

  2. Say: [Beep] “Transfer call”

  3. Prompt:“Transferred call to phone”

Transferring a Call from a Device (Mobile Phone) to Hands-Free

Communication between devices (Mobile phone) can be switched to Bluetooth® Hands-Free.

  1. Press the talk button with a short press.

  2. Say: [Beep] “Transfer call”

  3. Prompt:“Transferred call to Hands Free system”

Call interrupt

A call can be interrupted to receive an incoming call from a third party.

Switch to a new incoming call using the following methods.

(Method 1)

  1. Press the pick-up button.

  2. Prompt: “Swapping calls.”

(Method 2)

  1. Press the talk button with a short press.

  2. Say: [Beep] “Swap calls”

  3. Prompt: “Swapping calls.”



  • To refuse an incoming call, press the hang-up button.

  • After receiving a new incoming call, the previous call is placed on hold.

Close Note
View Note

Switching calls

Switching back to the previous call can also be done.

Method 1

  1. Press the pick-up button.

  2. Prompt: “Swapping calls.”

Method 2

  1. Press the talk button with a short press.

  2. Say: [Beep] “Swap calls”

  3. Prompt: “Swapping calls.”

Three-way call function

  1. Press the talk button with a short press.

  2. Say: [Beep] “Join calls”

  3. Prompt: “Joining calls”

Making a call using a telephone number

  1. Press the talk button with a short press.

  2. Say: [Beep] “Dial”

  3. Prompt: “Number, please”

  4. Say: [Beep] “XXXXXXXXXXX (Telephone number)”

  5. Prompt: “XXXXXXXXXXX. (Telephone number) After the beep, continue to add numbers, or say Go-Back to re-enter the last entered numbers, or press the Pick-Up button to execute dialing.”

  6. (Dialing)

    Press the pick-up button or say “Dial”, then go to Step 7.

    (Adding/inputting telephone number)

    Say, “XXXX” (desired telephone number), then go to Step 5.

    (Telephone number correction)

    Say, “Go Back”. The prompt replies, “Go Back. The last entered numbers have been removed.”. Then go back to Step 3.

  7. Prompt: “Dialing”

Making calls using the phonebook

  1. Press the talk button with a short press.

  2. Say: [Beep] “Call”

  3. Prompt: “Name please.”

  4. Say: [Beep] “XXXXX... (Ex. “John's phone”)” (Say a voice tag registered in the phonebook.)

  5. Prompt: “Calling XXXXX... (Ex. “John's phone”) XXXX (Ex. “at home”). Is this correct?” (Voice tag and phone number location registered in phonebook).

  6. Say: [Beep] “Yes”

  7. Prompt: “Dialing”

Redialing function

  1. Press the talk button with a short press.

  2. Say: [Beep] “Redial”

  3. Prompt: “Dialing”

Ending the current call

Press the hang-up button during the call.

DTMF (Dual Tone Multi-Frequency Signal) Transmission

This function is used when transmitting DTMF via the user's voice. The receiver of a DTMF transmission is generally a home telephone answering machine or a company's automated guidance call centre (When you send tone signals back according to the voice guidance recording).

  1. Press the talk button with a short press.

  2. Say: [Beep] “XXXX... send” (Say DTMF code)

  3. Prompt:“Sending XXXX... (DTMF code)”

Page top
